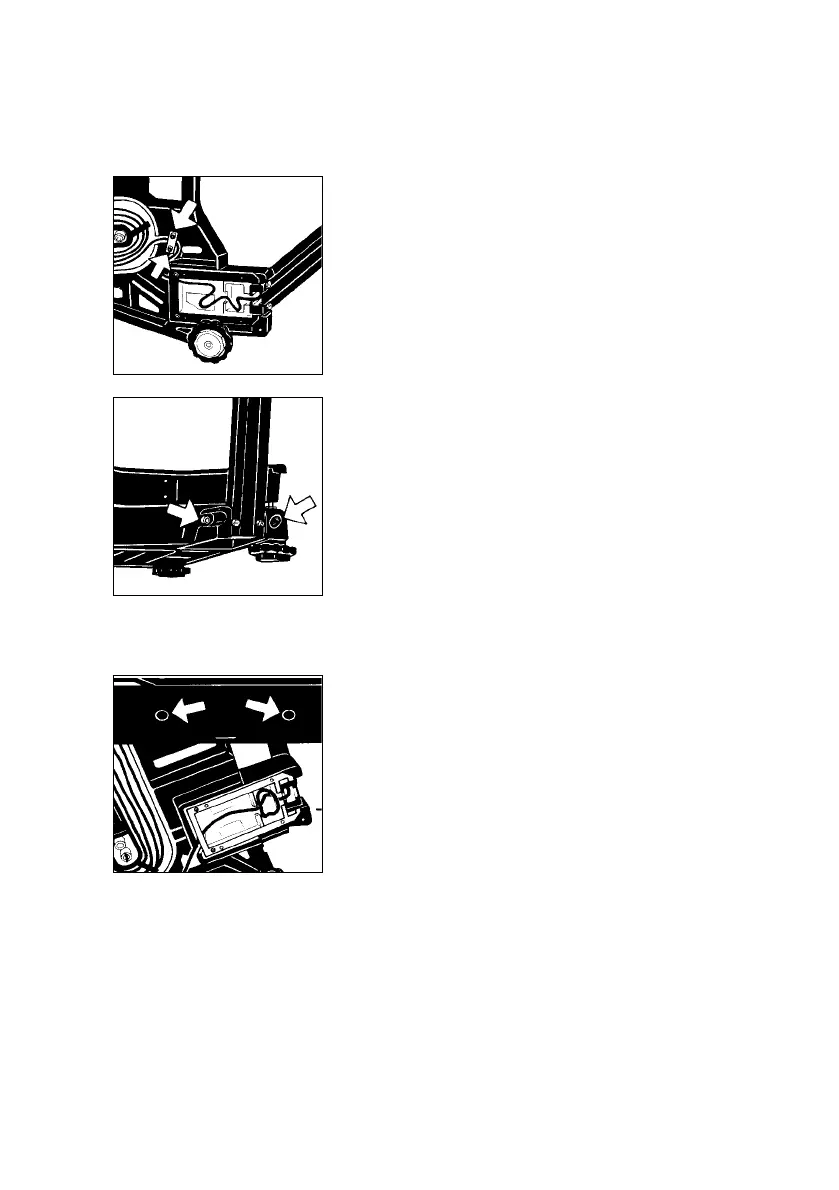

Remove the screws on the retainer plate.
Then set the scale back upright.
Remove the screws on the base (7).
Lay the support arm along with the base and the
display unit on a table.
Remove the plugs from the long side of the scale
(insert them in the holes on the short side). Loosely
attach the display unit with the support arm and base
to the long side of the scale with the Allen screws.
Lay the scale on its side again.
Thread the cable through the raceway.
1–17
