Chapter 3 Using Front Display Display Operations
PM135 Powermeter Series 43

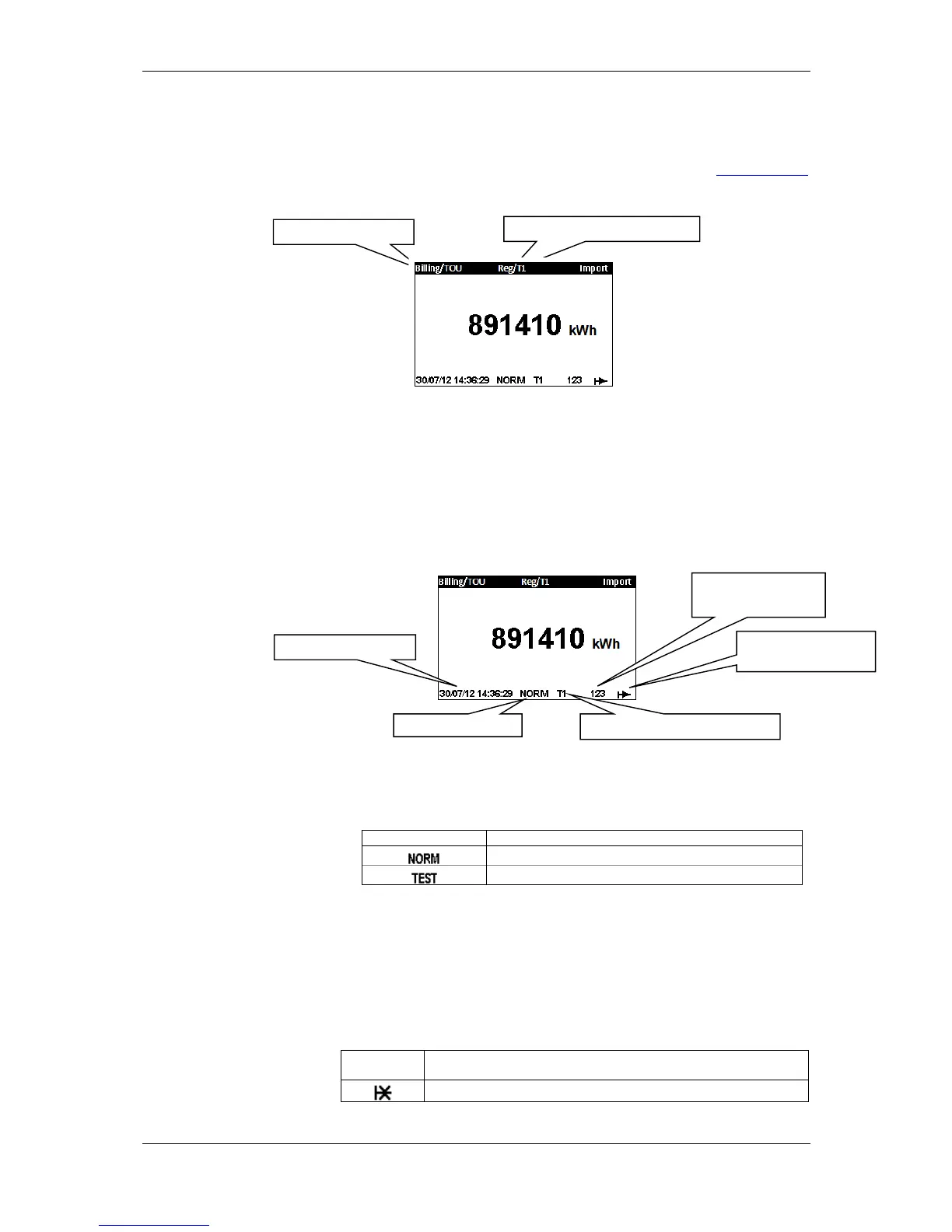

Navigating in Data Display Mode
The PM135 provides multiple pages data displays. Your present location is
indicated upper bar as shown in the following picture. See Data Displays
for the full displays list.
Use UP/DOWN scroll buttons to scroll through data displays.
Status Indicators
Graphical icons on the bottom status bar give immediate meter status
indication and show the present tariff rate.
The present date and time are indicated at left on the status bar. The date
order can be changed according to local rules via the "Real Time Clock"
device setup menu.
Operating Mode Indicator
The mode indicator gives information on the load presence and shows the
direction of active power.
Tariff Rate Indicator
The tariff rate indicator (T1 through T8) shows the currently active tariff
rate.
No Load/Power Flow Direction Indicator
The power flow indicator gives information on the load presence and
shows the direction of active power.
