Chapter 3 Using Front Display Display Operations
PM135 Powermeter Series 47
Billing Period Data Displays
The PM135 provides billing period data displays for energy and general
purpose volume data as m³, cf or Ccf calculated using Digital Input for
water and/or gas meter application.
Only registers you selected in the billing/TOU register setup and tariff
rates listed in the TOU daily profiles are included (see Configuring
Billing/Tariff Registers and Configuring the Daily Tariff Schedule in
Chapter 5).
The following example demonstrates the present billing period displays for
two configured billing registers (kWh imported and kvarh imported) and
for three active tariff rates. The actual register contents in your
installation may be different depending on your selection of register
sources.
Each billing period display lists all total and tariff energy, maximum
demand and cumulative maximum demand registers for all configured
billing registers and all active tariffs. Use the UP/DOWN button to scroll to
the desired Billing/TOU period register display

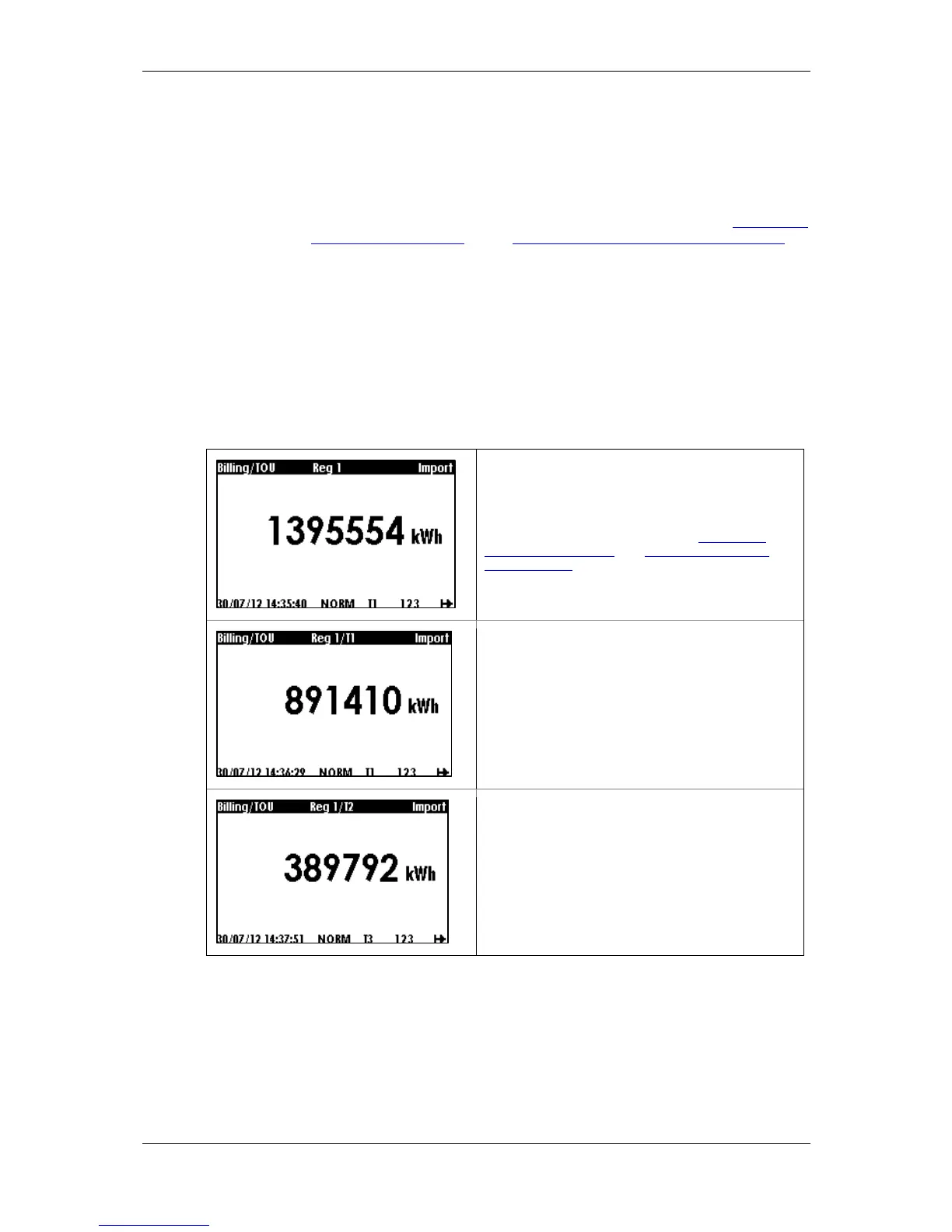

Register 1 - total readings:
Total Import Active energy data.
Billing period according to TOU predefined profile
(Reg1 for TOU actve energy and Reg2 for TOU
reactive energy are predefined TOU/Register factory
setup, can be changed by user, see Configuring
Billing/Tariff Registers and Configuring the Daily
Tariff Schedule in Chapter 5)
To Next Page
