Chapter 5 Configuring the PM135 General Meter Setup
PM135 Powermeter Series 93

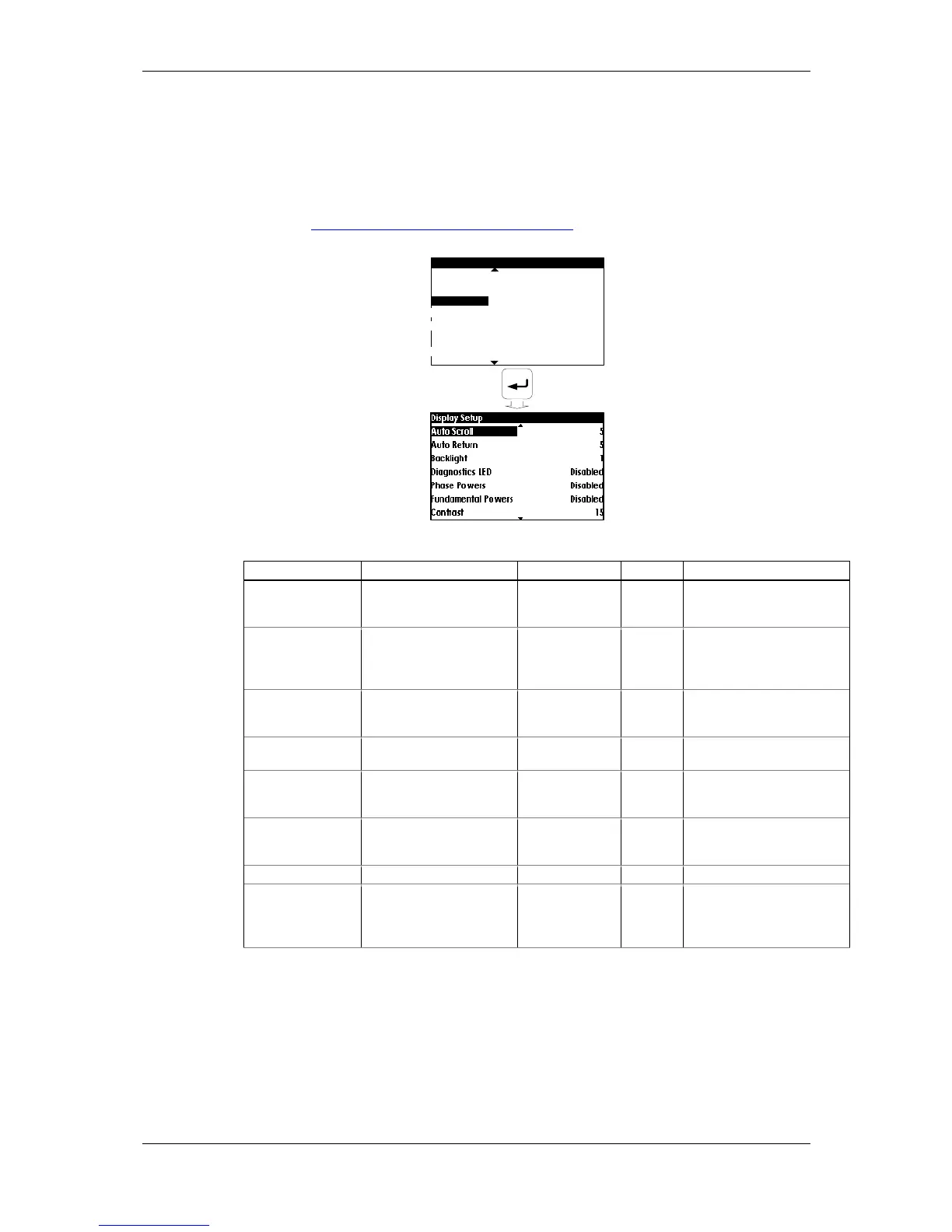

Configuring the Display
This setup allows configuring the meter display.
Using the Front Display
Select the Display Setup entry from the Device Setup menu. See
Viewing and Changing Setup Options in Chapter 3 for information on
configuring parameters via the front display.
Device Setup
Reset
Real Time Clock
Display Setup
Basic Setup
Device Options
COM1 Setup
COM2 Setup
Table 16: Display Setup Options
Display
Parameter
Options
Default
Description
Auto Scroll
Auto Scroll interval
None,
2-15 sec
None
Defines the scroll interval
for the main data display
or disables auto scroll
Auto Return
Auto Return to Data
Display screen
diS = disabled,
En = Enabled
Enabled
Enables automatic return
to the main display if no
buttons are pressed for 5
minutes
Backlight
Display Backlight
Continuous, 1-
10 min.
1
Defines the backlight
duration to be "ON" in idle
operation
Diagnostics LED
Diagnostics indication
LED
Disabled,
Enabled
Disabled
Enables the diagnostic
LED
Phase Powers
Phase Powers display
mode
Disabled,
Enabled
Disabled
Disables or enables phase
powers in the main
display
Fundamental
Powers
Fundamental component
display mode
Disabled,
Enabled
Disabled
Disables or enables
fundamental values in the
main display
Contrast
Display Contrast
1-25
15
Sets LCD contrast
Load Bar Scale, A
Reference load current
for LED bar graph
0-10,000A
(0 = CT
primary
current)
0
0 Defines the nominal
load
(100%) level for the bar
graph display
