Chapter 8 Retrieving and Storing Files Using the Upload Scheduler
130 PM135 Powermeter Series
8.2 Using the Upload Scheduler
To setup the Upload Scheduler:
1. Select Upload Scheduler from the
Logs menu.

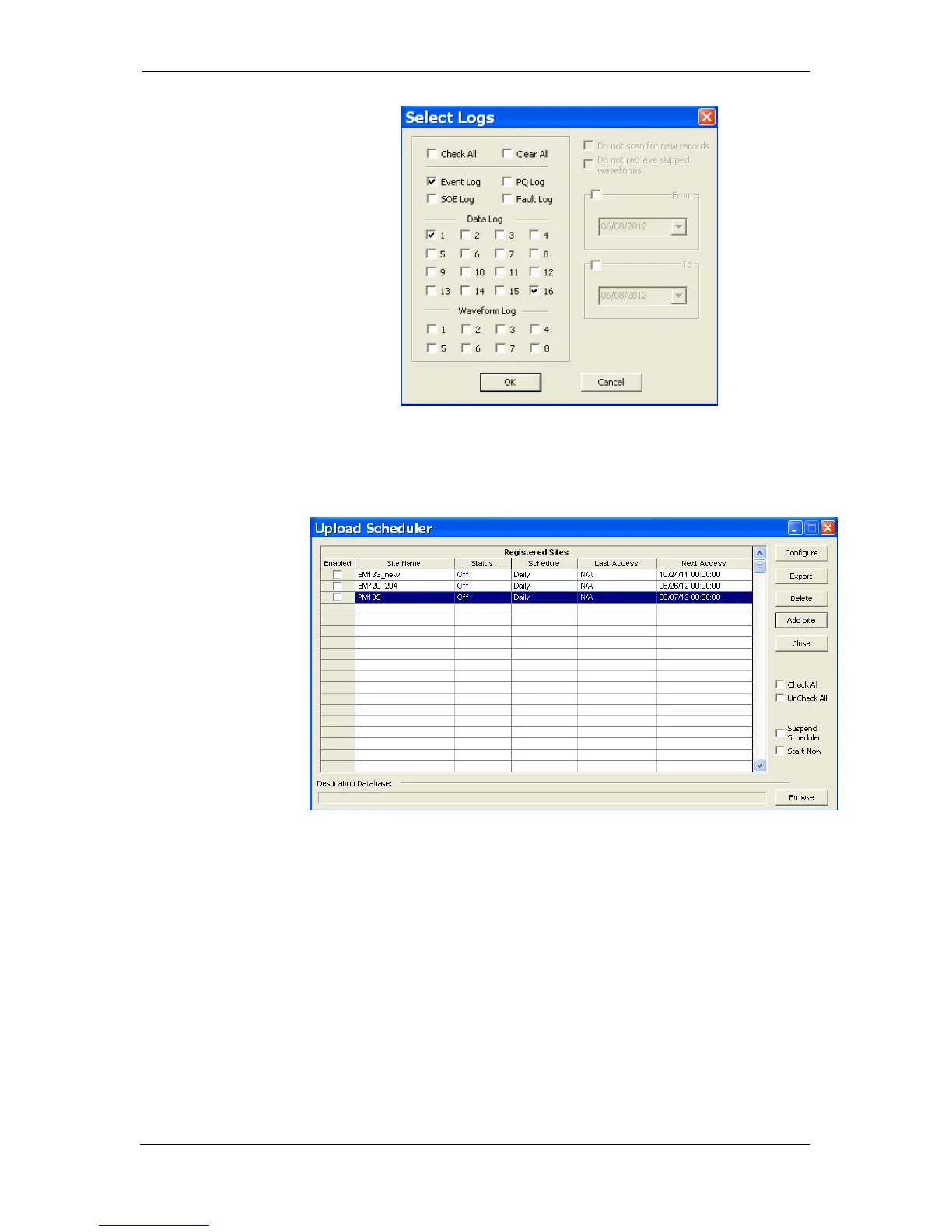

Figure 8-1: Upload Scheduler Setup Dialog Box
2. Click Add Site, point to the site
database for which you want to
organize the schedule, and then
click OK.
3. Click Browse and select a database
for storing retrieved data, or type
the name for a new database, select
a directory where you want to save
it, and then click OK.
4. Click Configure or double click on
the site row.
To Next Page
