Chapter 5 Configuring the PM135 General Meter Setup
PM135 Powermeter Series 85
Configuring Relay Outputs
The PM135 can be provided with two to four (depend on DI/O module
type) optional relay outputs. Each relay can be operated either locally
from the alarm/control setpoints in response to an event or by a remote
command sent through communications. It can also be linked to an
internal pulse source to produce energy pulses.
Using PAS
Select General Setup from the Meter Setup menu, and then click on the
Relay Outputs tab.

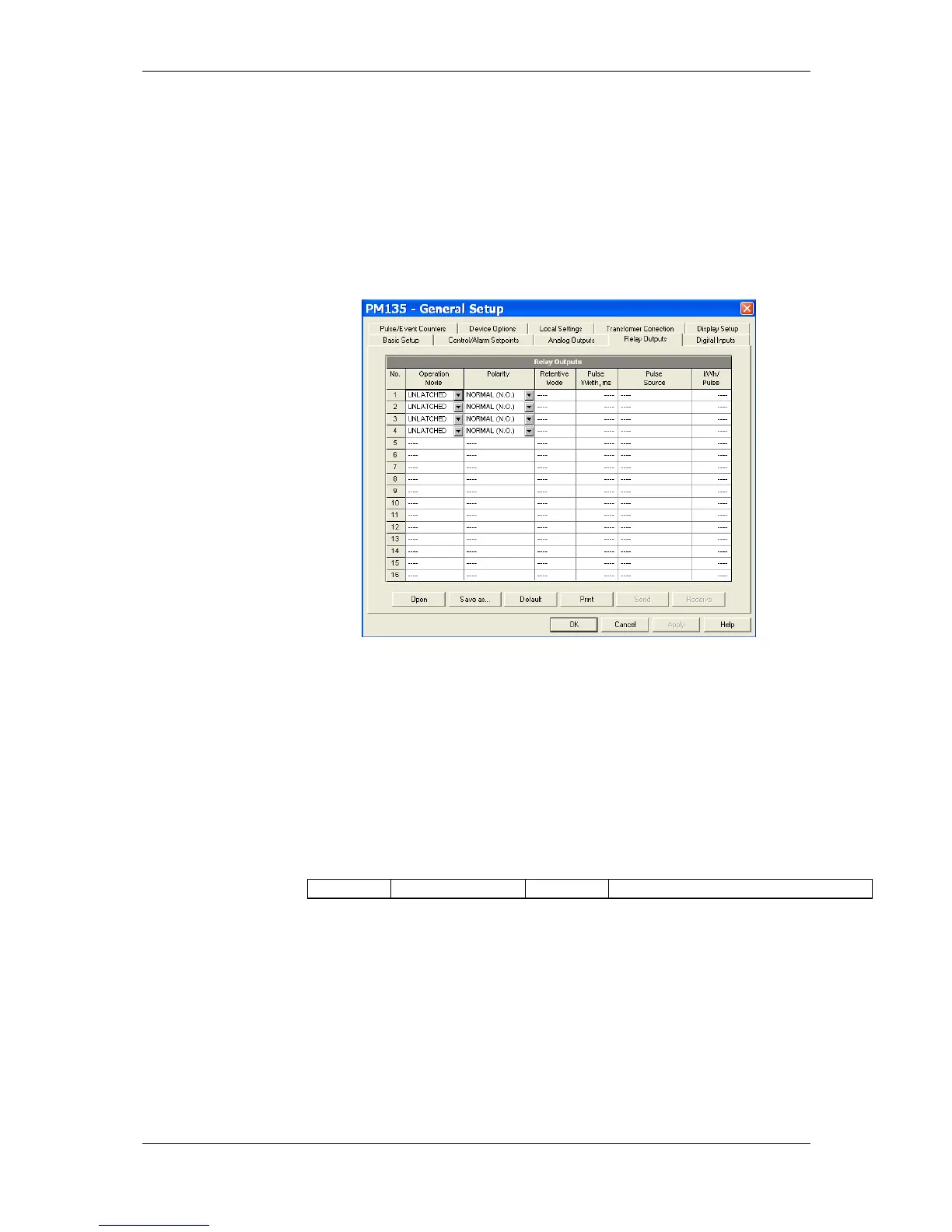

Figure 5-9: General Setup Dialog Box – Relay Outputs Tab
The available relay outputs options are shown in Table 12.
Table 12: Relay Output Options
