Chapter 3 Using Front Display Device Setup
62 PM135 Powermeter Series

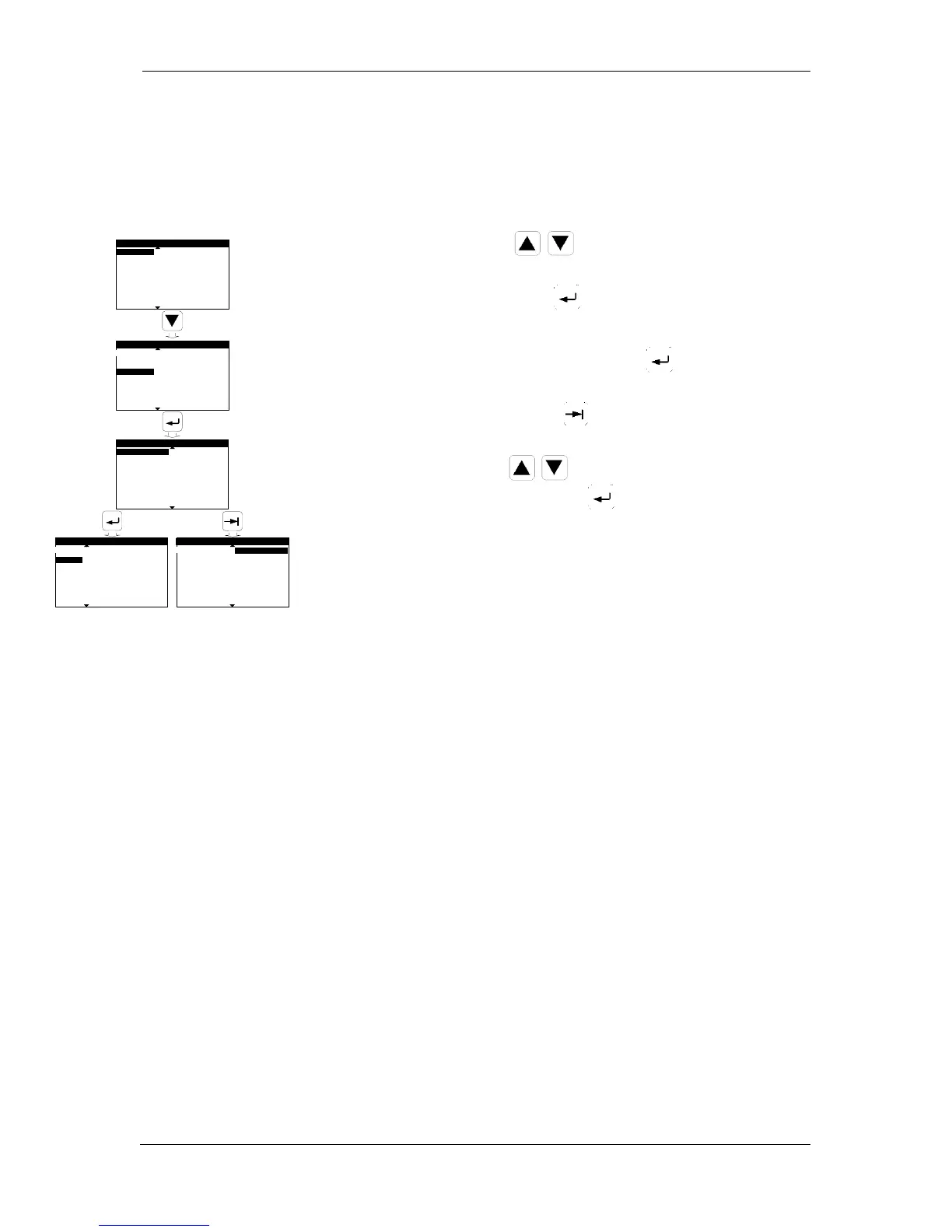

Viewing and Changing Setup Options
Once you entered a correct password you are moved to the Device Setup
menu.
The Device Setup menu consists of sub-menus list.
To select a desired menu entry from the menu list:
Use the UP/DOWN button - to scroll through the menu list to
the desired menu entry
Press the SELECT/ENTER button - to enter the selected submenu.
Parameters that are represented by values can be changed in two ways:
 By pressing the SELECT/ENTER button - , a new sub-menu
appears by presenting possible values to be selected
 By pressing the TAB button - , the highlight cursor moves to
the actual value to be changed
Use the UP/DOWN button - to scroll through the desired value,
then press the SELECT/ENTER button - to store the selected value
Note: While being in the Device Setup operation mode, the PM135 display
will return to normal operation, i.e. move to data display, during idle
operation of one minute
Device Setup
Reset
Real Time Clock
Display Setup
Basic Setup
Device Options
COM1 Setup
COM2 Setup
Device Setup
Reset
Real Time Clock
Display Setup
Basic Setup
Device Options
COM1 Setup
COM2 Setup
Display Setup
Auto Scroll
Auto Return 5
Backlight 1
Diagnostics LED Disabled
Phase Powers Disabled
Fundamental Powers Disabled
5
Contrast 15
Display Setup
Auto Scroll
Auto Return 5
Backlight 1
Diagnostics LED Disabled
Phase Powers Disabled
Fundamental Powers Disabled
Disabled
Contrast 15
Display Setup
Auto Scroll
Disabled
2
3
4
5
6
