Chapter 3 Using Front Display Display Operations
54 PM135 Powermeter Series

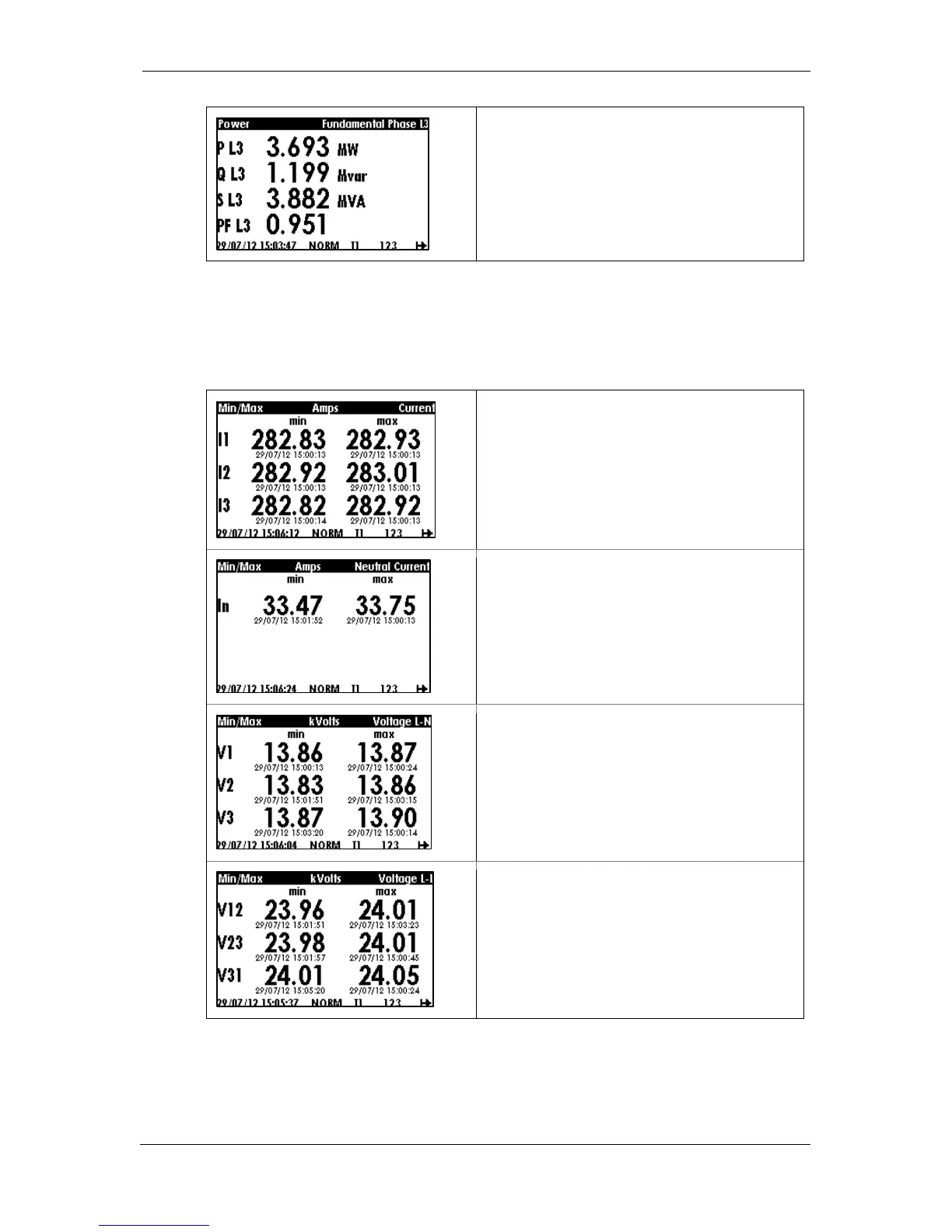

Phase 3 powers and power factor
Measurements Minimum/Maximum Data Display
Minimum/Maximum displays show measurements minimum/maximum for
powers, voltages, currents, power factor and frequency. Each quantity is
displayed with the date and time of the last update. Use the UP/DOWN
button to scroll to the desired Min/Max data display
Phase currents minimum/maximum values with
time stamp.
Neutral current minimum/maximum values with
time stamp.
Phase-to-neutral voltages minimum/maximum
values with time stamp.
Phase-to-phase voltages minimum/maximum values
with time stamp.
To Next Page
