Satec PM175 User Manual

Chapter 4 PAS Application Software
Configuring Communication Protocols
Series PM175 Powermeters
109

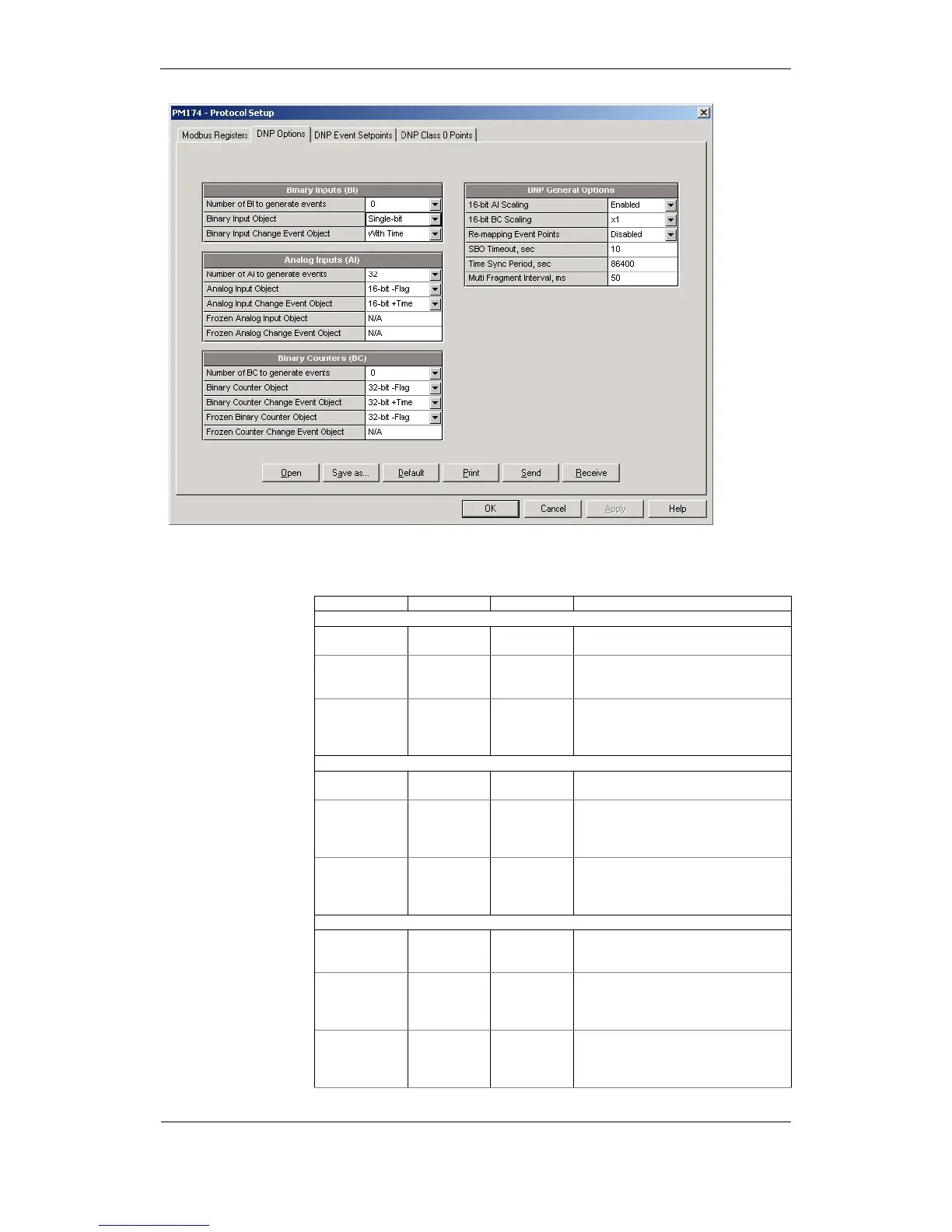

The following table describes available DNP options. Refer to
the DNP3 Data Object Library document available from the
DNP User’s Group on the DNP3 object types.
Parameter
Options
Default
Description
Binary Inputs (BI)
Number of BI to
Generate events
0-64
3
0
The total number of BI change event
points for monitoring
Binary Input
Object
Single-bit
With Status
Single-bit
The default BI object variation for
requests with qualifier code 06 when no
specific variation is requested
Binary Input
Change Event
Object
Without Time
With Time
With Time
The default BI change event object
variation for requests with qualifier code
06 when no specific variation is
requested
Analog Inputs (AI)
Number of AI to
Generate events
0-64
3
32
The total number of AI change event
points for monitoring
Analog Input
Object
32-bit
32-bit –Flag
16-bit
16-bit –Flag
16-bit -Flag
The default AI object variation for
requests with qualifier code 06 when no
specific variation is requested
Analog Input
Change Event
Object
32-bit -Time
32-bit +Time
16-bit -Time
16-bit +Time
16-bit +Time
The default AI change event object
variation for requests with qualifier code
06 when no specific variation is
requested
Binary Counters (BC)
Number of BC
to Generate
events
0-64
3
0
The total number of BC change event
points for monitoring
Binary Counter
Object
32-bit +Flag
32-bit –Flag
16-bit +Flag
16-bit –Flag
32-bit -Flag
The default BC object variation for
requests with qualifier code 06 when no
specific variation is requested
Binary Counter
Change Event
Object
32-bit -Time
32-bit +Time
16-bit -Time
16-bit +Time
32-bit +Time
The default BC change event object
variation for requests with qualifier code
06 when no specific variation is
requested
