Monitoring Devices

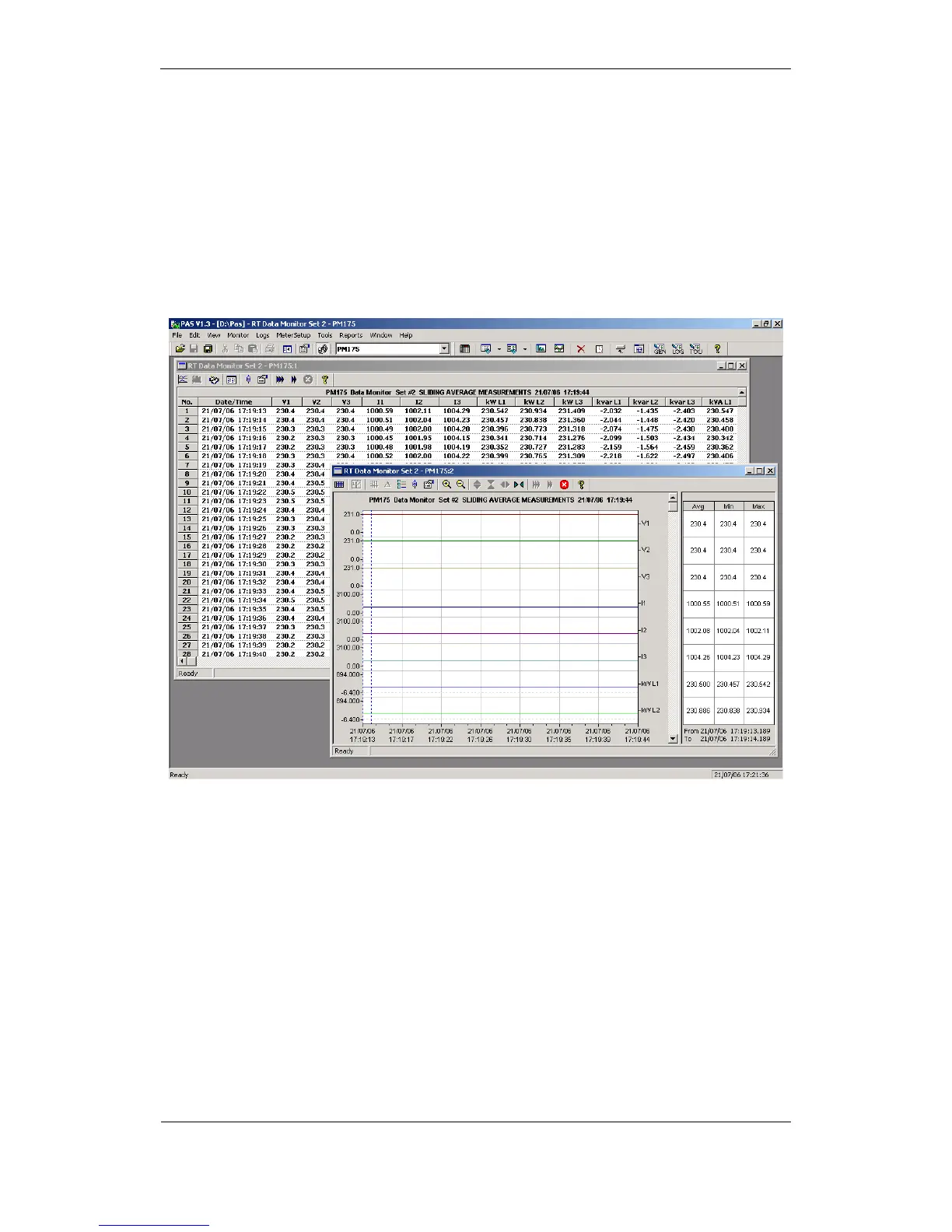

Viewing Real-time Data
Real-time data is continuously retrieved from your devices,
updated on the screen at the rate you defined in the
Instrument Setup, and can be recorded to a file. You can view
acquired data in a tabular or in a graphical form as a data
trend.
For information on the real-time data monitoring and recording
options, see the “PAS Getting Started Guide”.
Any data, energy and maximum demand registers in your
meters can be read and recorded to files through the PAS
Data Monitor. See Appendix D for a list of data available in
your meter.
Viewing Min/Max Log
To retrieve the real-time Min/Max log data from your device,
select the device site from the list box on the toolbar, select RT
Min/Max Log from the Monitor menu, and then select a data
set you want to view.
For more information on the Min/Max data monitoring options,
see the “PAS Getting Started Guide”.
