Event Flags
The PM175 provides 8 common event flags that are intended
for use as temporary event storage and can be tested and
operated from the control setpoints. You can transfer an event
to the setpoint and trigger its operation remotely by changing
the event status through PAS.

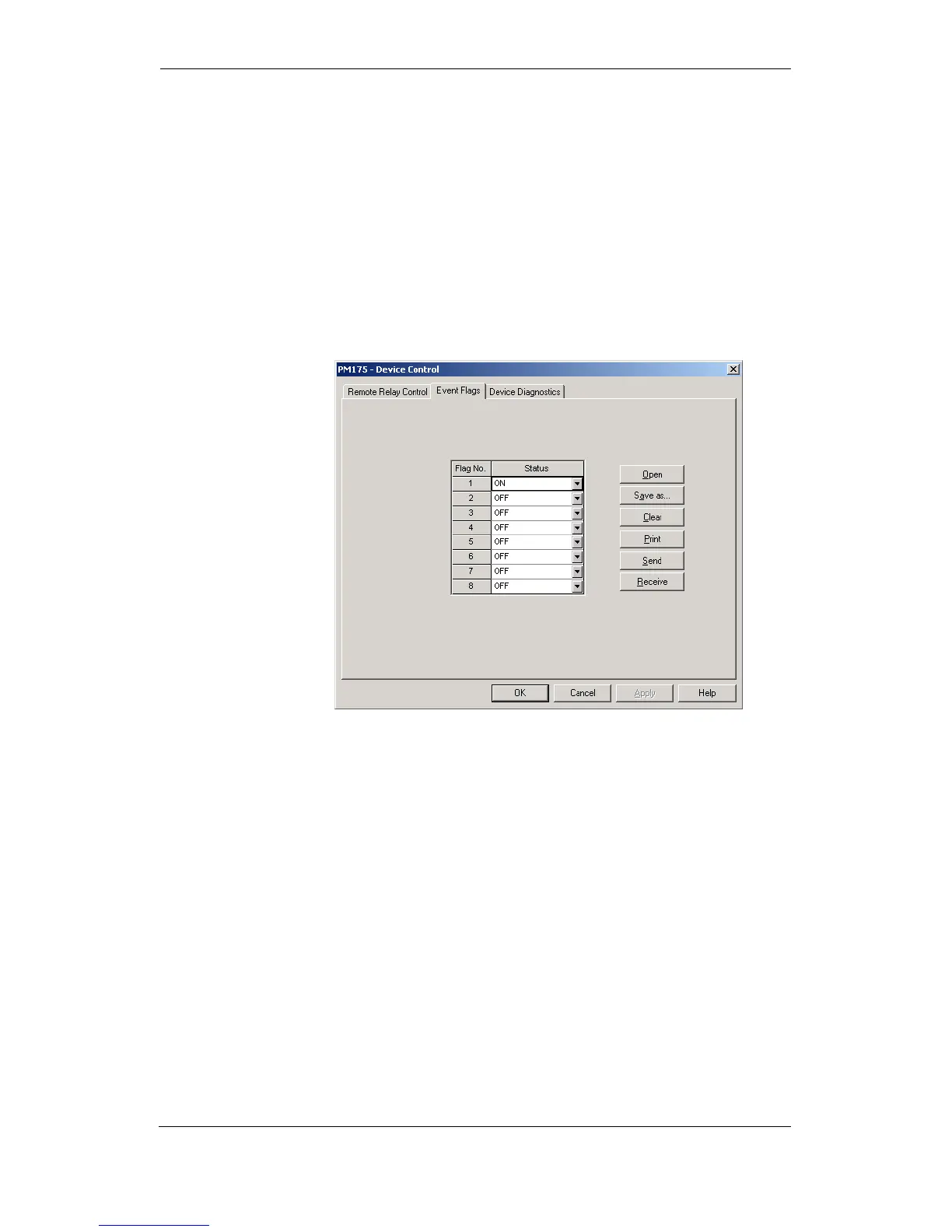

To enter the Event Flags dialog, check the On-line button on
the PAS toolbar, select Device Control from the Monitor menu,
and then click on the Event Flags tab.
To change the status of an event flag:
1. From the “Status” box, select the desired flag status.
2. Click on Send.
Device Diagnostics
Device diagnostic messages may appear as a result of the
PM175 built-in diagnostic tests performed during a start-up
and device operation.
To enter the Device Diagnostics dialog, check the On-line
button on the PAS toolbar, select Device Control from the
Monitor menu, and then click on the Device Diagnostics tab.
