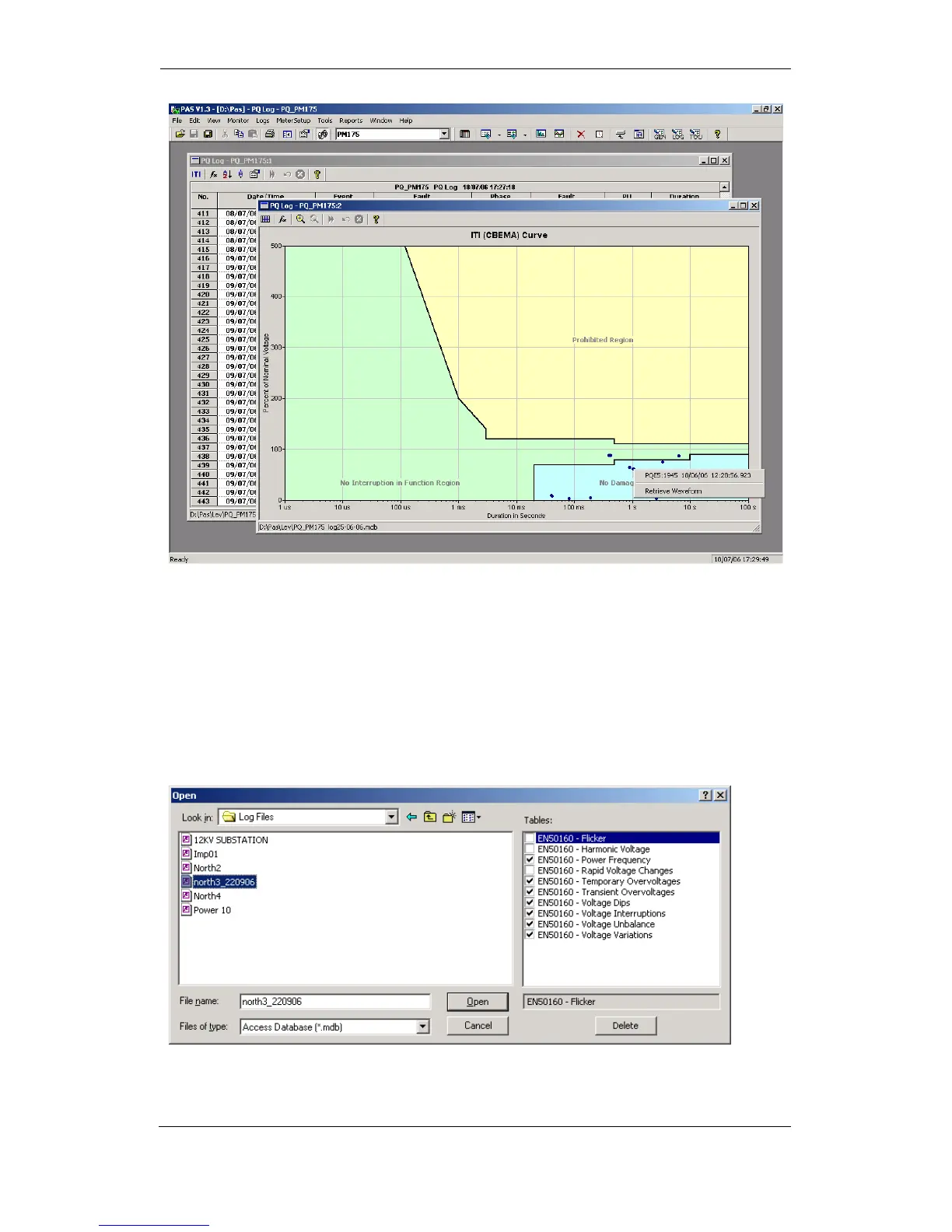

To view the event details, click on the event point with the left
mouse button. To directly move to the related power quality
report entry or to a waveform record, click on the
corresponding list item with the left mouse button.
Viewing the EN50160 Compliance Report
To get the EN50160 Compliance report on the collected
statistics data, select “EN50160 Compliance Statistics” from
the Reports menu, point to the database where you stored the
retrieved statistics, uncheck the voltage characteristics’ tables
which you do not want to be reported, and then click Open.
The following picture shows an example of the EN50160
compliance report.
