Chapter 4 PAS Ap
plication Software
Viewing Recorded Fil
es
Series PM175 Po
wermeters
131

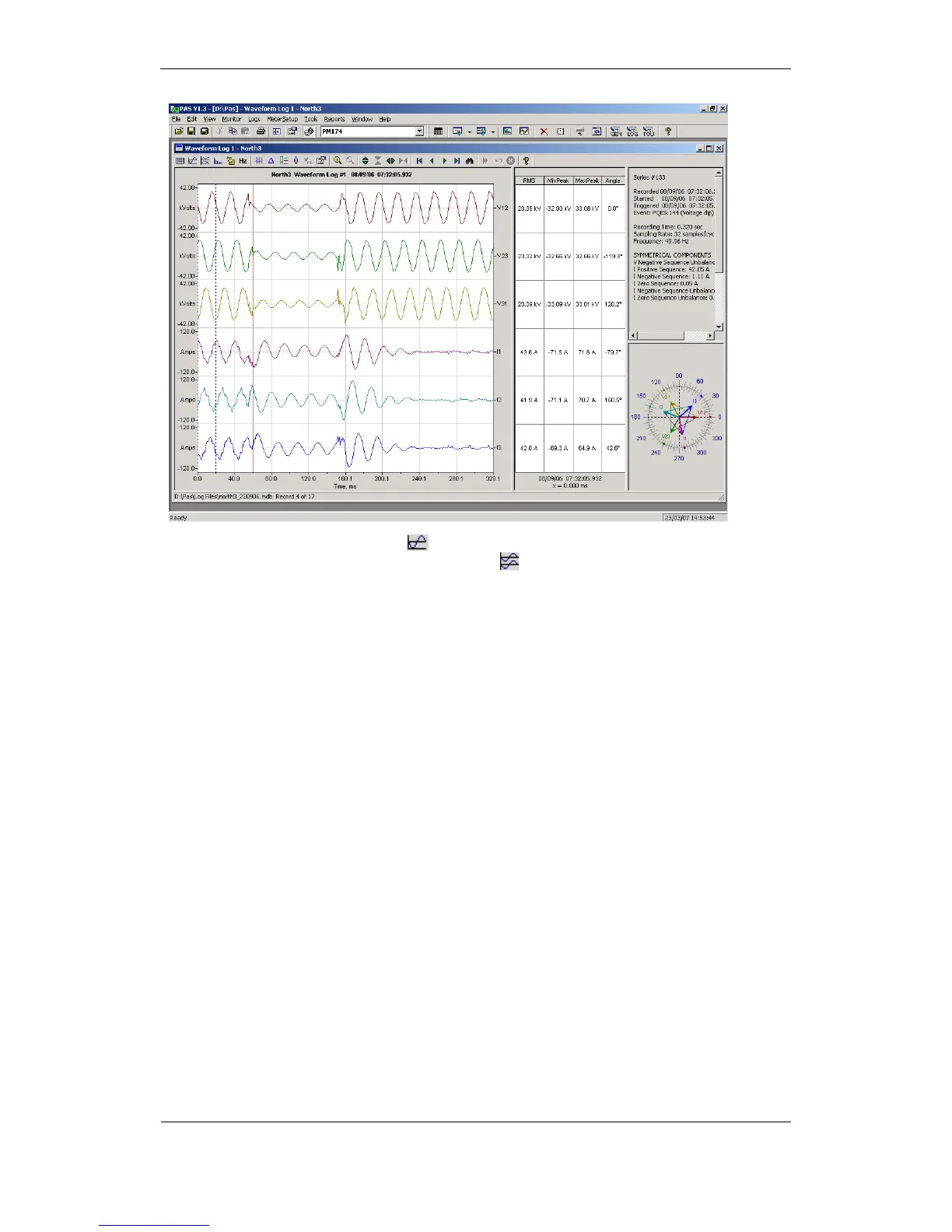

Click on the
button on the local toolbar to view overlapped
waveforms, and click on the
button to view non-overlapped
waveforms.
Waveform data is recorded in series that may contain many
cycles of the sampled waveform. A waveform window displays
up to 128 waveform cycles. If the waveform contains more
cycles, the scroll bar appears under the waveform pane
allowing you to scroll through the entire waveform.
