Chapter 2 Installatio
n
Electrical Installation
22
Series PM175 Po
wermeters

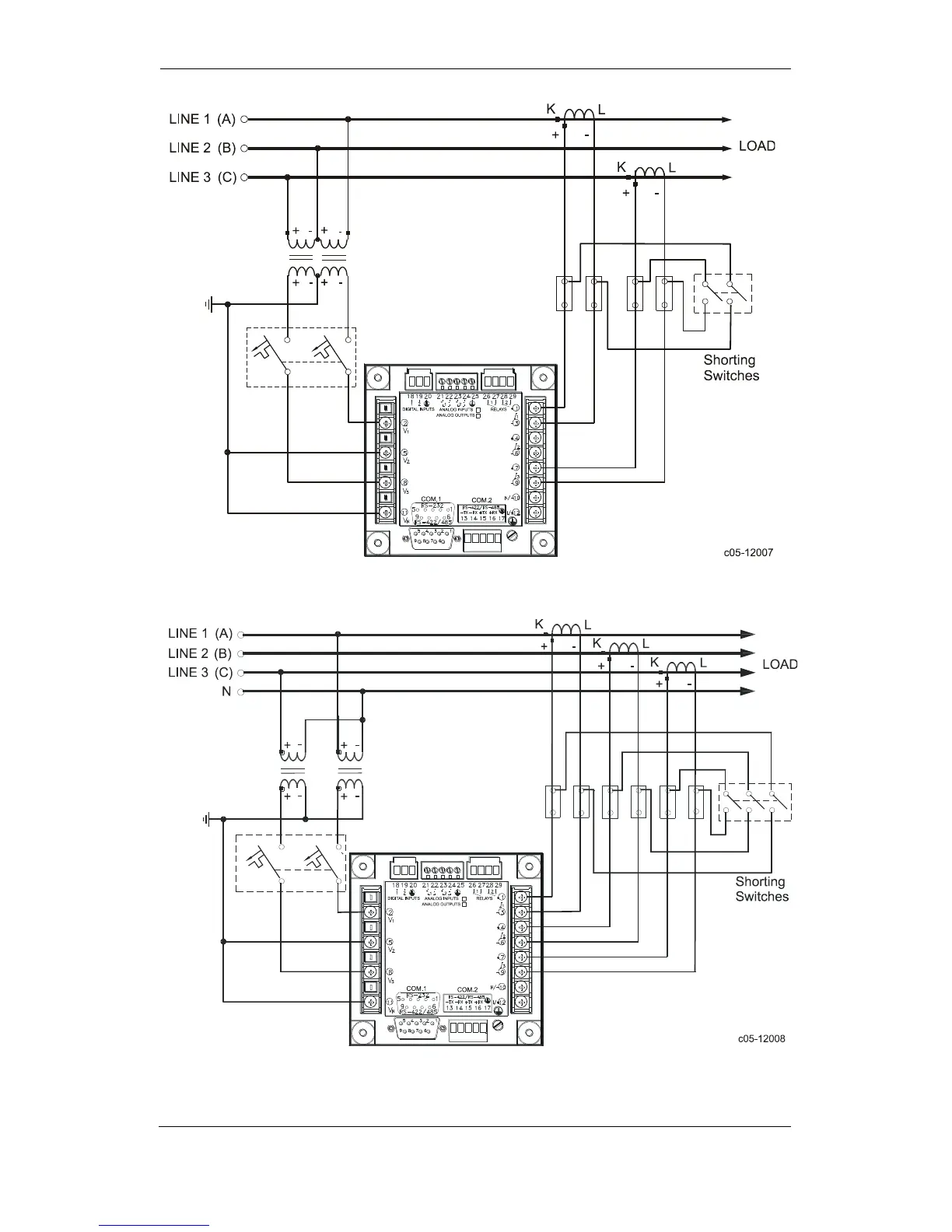

Figure 2-20 3-Wire 2-Element Open Delta Connection Using 2 PTs, 2 CTs.
Wiring Mode = 3OP2
Figure 2-21 4-Wire W
y
e 2
½-Element Connection Using 2 PTs, 3 CTs.
Wiring Mode = 3LL3 or 3Ln3
21
23
Table of Contents
Limited Warranty
2
Table of Contents
3
Chapter 1 General Information
6
Chapter 2 Installation
10
Mechanical Installation
10
Panel Mounting
10
DIN Rail Mounting
13
Remote Display Installation
14
Mechanical Installation
14
Electrical Connection
16
Electrical Installation
18
Typical Installation
18
Terminals
19
Power Source Connection
19
Chassis Ground Connection
19
Wiring Diagrams
20
I/O Connections
25
Relay Outputs
25
Digital Inputs
25
Analog Outputs
26
Analog Inputs
26
Communications Connections
27
COM1 RS-232 Connection
27
COM1 RS-422/485 Connection
28
COM1 Dial up Modem Connection
29
COM1 Ethernet Connection
29
COM2 RS-422/485 Connection
30
Chapter 3 Display Operations
32
Indicators and Controls
32
Display Diagnostics
32
Numeric LED Display
32
Load Bar Graph
32
Energy Pulse LED
33
Port Activity Leds
33
Navigation Buttons
33
Data Display
33
Display Features
33
Navigation Buttons
34
Simple Reset of Accumulated Data
35
Common Measurements Display
35
Min/Max and Max. Demands Display
36
Power Quality/Harmonics Display
37
Energy Display
38
Status Display
39
Using the Menus
41
Navigation Buttons
41
Selecting Menus
41
Entering the Password
42
Selecting a Menu Entry
42
Viewing and Changing Setup Items
42
Menu Operations
43
Basic Device Settings
43
Device Options
45
Communication Ports
45
Network Address
47
Counters Setup
47
Control Setpoint Setup
48
Analog Inputs Setup
49
Analog Outputs Setup
51
Analog Expander Setup
52
Timers Setup
53
Display Setup
53
Meter Security
54
Setting the Device Clock
55
Resetting Accumulators and Maximum Demands
56
Chapter 4 PAS Application Software
57
Configuration Database
57
Setting up Communications
57
Communicating through a Serial Port
58
Communicating through a Dial-Up Modem
59
Communicating through the Internet
59
Setting up the Meter
60
Downloading Setup to the Meter
61
Uploading Setup from the Meter
61
Authorization
61
Configuring Communications in Your Meter
61
Setting up Communication Ports
61
Setting up the Ethernet
62
General Meter Setup
63
Basic Meter Setup
64
Device Options
65
Local Settings
67
Using Digital Inputs
68
Using Relay Outputs
69
Programming Analog Inputs
71
Programming Analog Outputs
73
Programming the Analog Expander
75
Using Counters
76
Using Periodic Timers
77
Using Control Setpoints
77
Configuring Summary Energy and TOU Registers
82
Setting up Total and Tariff Registers
82
Configuring the Daily Tariff Schedule
83
Configuring the Season Tariff Schedule
84
Configuring Recorders
86
Configuring Device Memory
86
Configuring the Event Recorder
88
Configuring the Data Recorder
88
Configuring the Waveform Recorder
91
EN50160 Evaluation and Recording
94
EN50160 Background
94
Evaluation Techniques
95
Methods of Evaluation
97
Configuring the EN50160 Recorders
102
EN50160 PQ Recorder Setup
103
EN50160 Harmonics Limits Setup
105
EN50160 Advanced Setup
106
Clearing EN50160 Evaluation Counters
107
Configuring Communication Protocols
107
Configuring Modbus
107
Configuring DNP3
108
Remote Device Control
113
Remote Relay Control
113
Event Flags
114
Device Diagnostics
114
Updating the Clock
115
Resetting Accumulators and Clearing Log Files
116
Administration
117
Changing a Password
117
Upgrading Device Firmware
117
Monitoring Devices
119
Viewing Real-Time Data
119
Viewing Min/Max Log
119
Viewing Real-Time Waveforms
120
Retrieving Log Files
120
Retrieving Recorded Data
120
Retrieving EN50160 Statistics Files
120
Viewing Recorded Files
122
Viewing Options
122
Viewing the Device Event Log
122
Viewing the EN50160 Power Quality Event Log
123
Viewing the EN50160 Compliance Report
126
Viewing the EN50160 Online Statistics Report
129
Viewing the EN50160 Harmonics Survey Report
129
Viewing the Data Log
129
Viewing Waveforms
130
Viewing Synchronized Waveforms
136
COMTRADE and PQDIF Converters
138
Manual Converting
138
Automatic Converting
139
Appendix A Technical Specifications
140
Standards Compliance
143
Appendix B Parameters for Analog Output
145
Appendix C Setpoint Triggers and Actions
146
Appendix D Parameters for Monitoring and Data Logging
150
Appendix E EN50160 Statistics Log Files
163
Appendix F Data Scales
167
Appendix G Device Diagnostic Codes
168
