14 CSP-204 ● CSP-208 ● CSP-104 ● CSP-108 SATEL

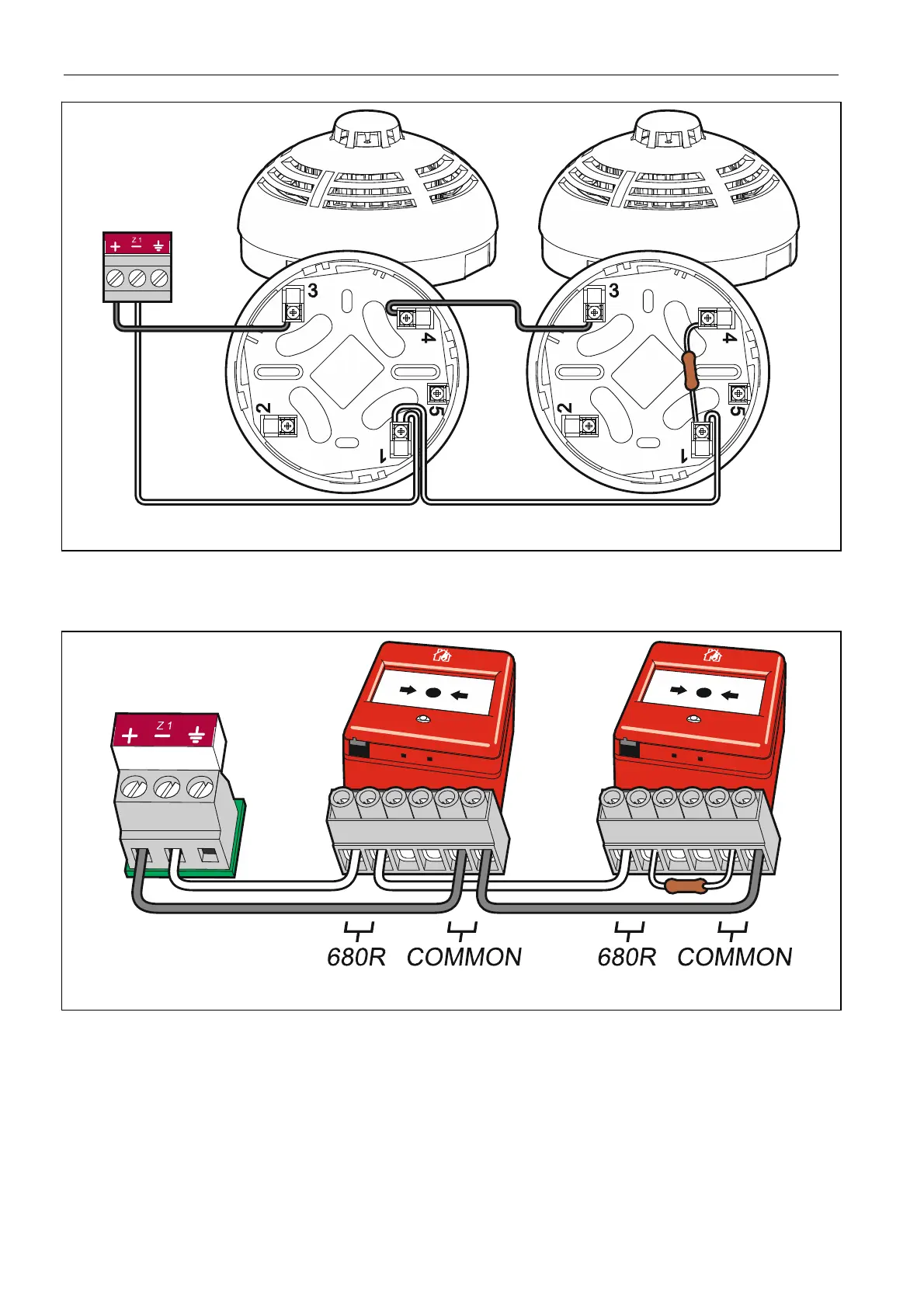

Fig. 8. Connecting detectors to the control panel – an example.
Connecting the manual call points (MCPs)
The total number of MCPs conntected to a zone must not exceed 10.
Fig. 9. Connecting MCPs to the control panel – an example.
5.2.2 Programmable inputs
The fire alarm control panel has 4 programmable inputs. They allow to monitor the status of
external devices provided with an NO relay. Using the screened cable for connection of the
devices to the programmable inputs is not required. The circuit should be terminated with
a 10 kΩ resistor (the resistor can be screwed to the terminals of the last device in the circuit).
An 1 kΩ resistor must be connected in parallel with the relay (see: Fig. 10). The control panel
program makes it pos
sible to deactivate each input, if it is not to be used (if so, screwing the
resistor to the terminals is not required).
