 4 (CSP-104 and CSP-204) or 8 (CSP-108 and CSP-208) programmable relay outputs.
 LED indicators of the status of fire alarm control panel and external devices.
 Built-in sounder.
 LCD display (CSP-204 and CSP-208).
 Real-time clock with a battery backup.
 Alarm log for up to 9999 alarms.
 Non-volatile memory of 8999 events (including alarms).
 Programming by means of:
 buttons available on the front panel of fire alarm control panel,
 computer with the DCSP program installed (communication through RS-232 port).
 Switching-mode power supply, output current 2.5 A.
 Automatic switchover to backup power supply (battery) in the event of main power supply
failure.
4. Description of the control panels

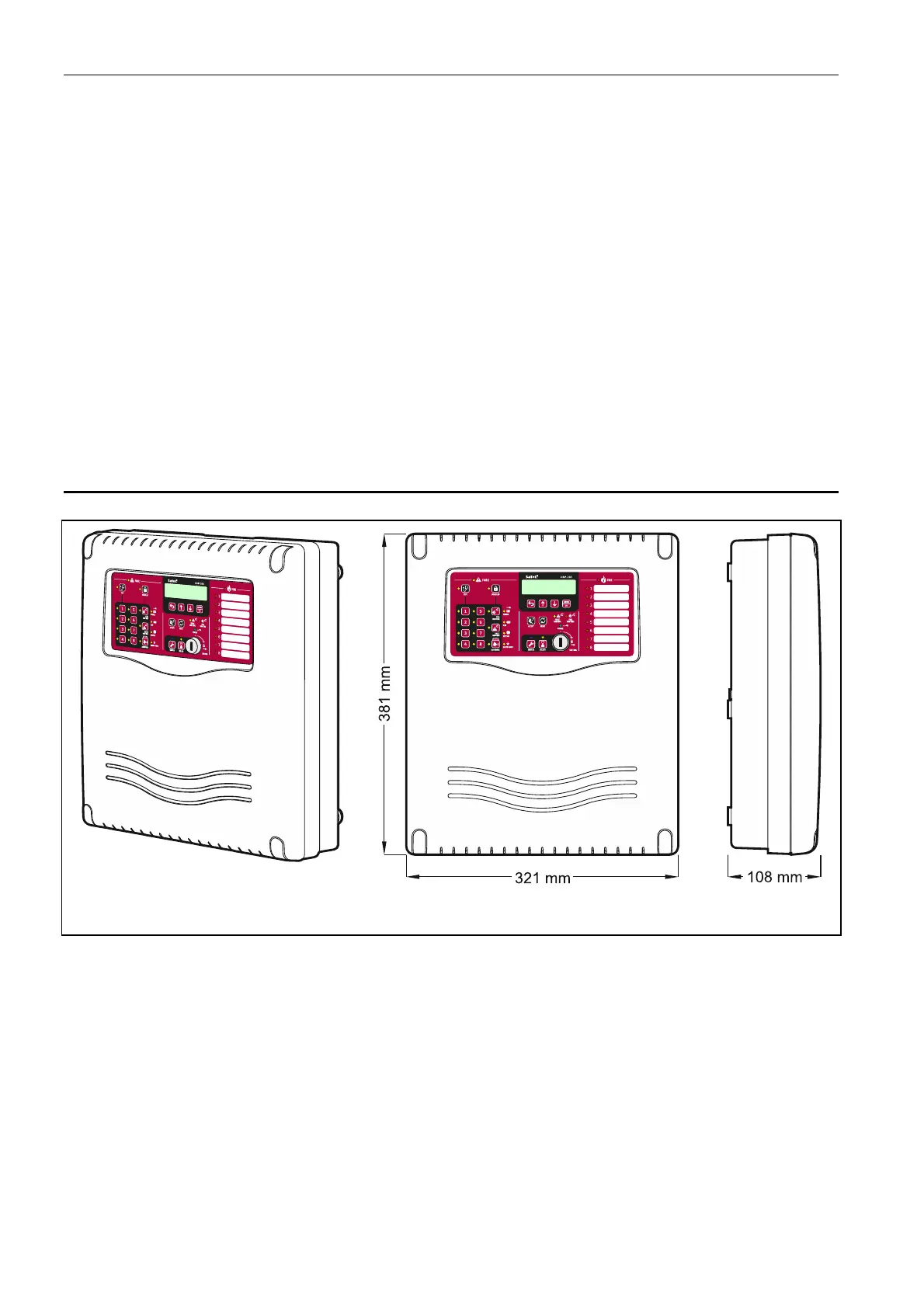

Fig. 1. Fire alarm control panel (by example of CSP-208).
