Satel CSP-208 - Front Panel

SATEL Installation and Programming Manual 37

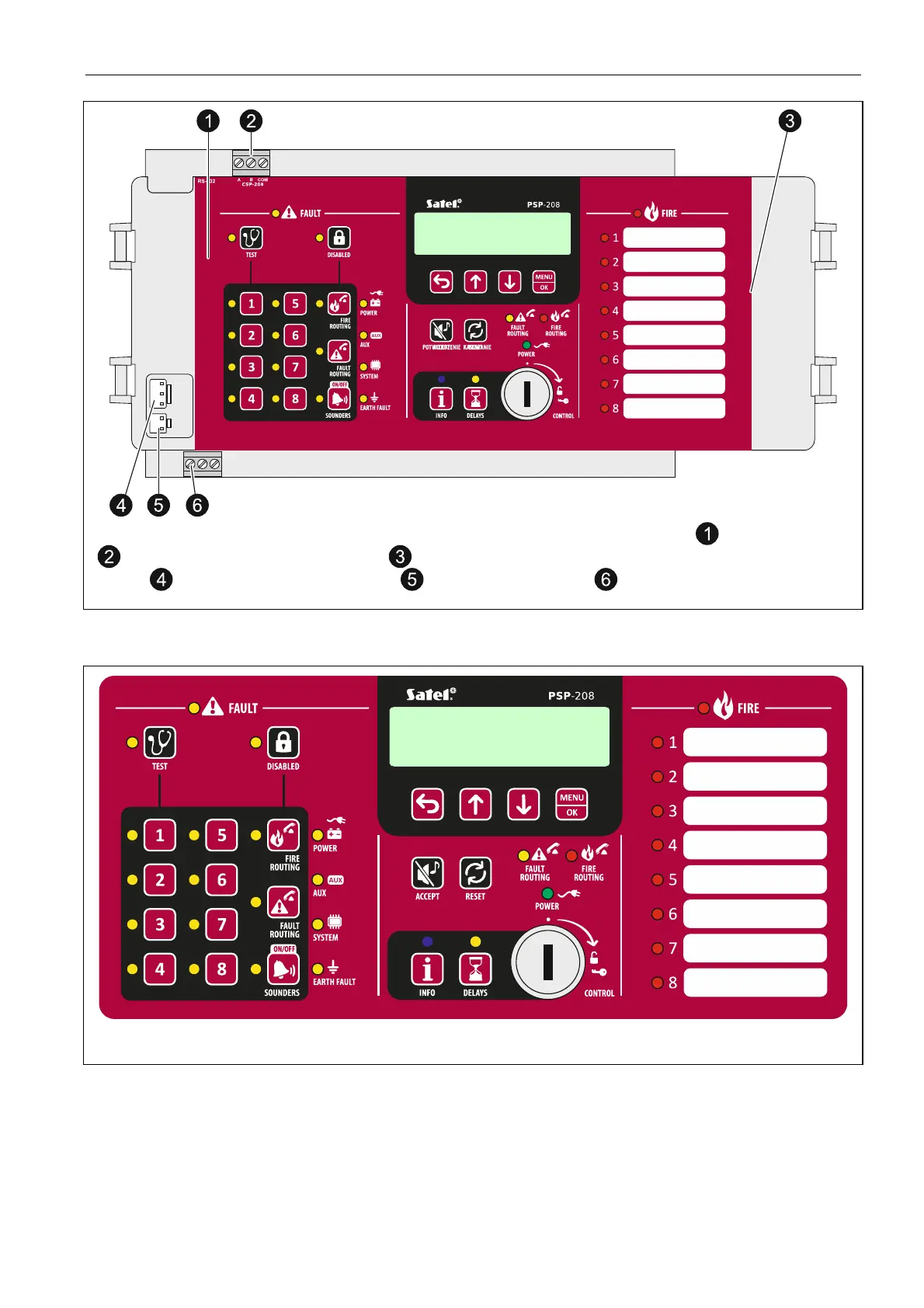

Fig. 16. Repeater panel mainboard module (by example of PSP-208): - front panel.
- communication bus terminals. – location of slot for an insert with zone descriptions.
– power supply connector. - battery connector. – protection terminal.
8.2.1 Front panel
Fig. 17. Front panel of the PSP-208 repeater panel.
