Satel CSP-208 - LED Indicators

8 CSP-204 ● CSP-208 ● CSP-104 ● CSP-108 SATEL

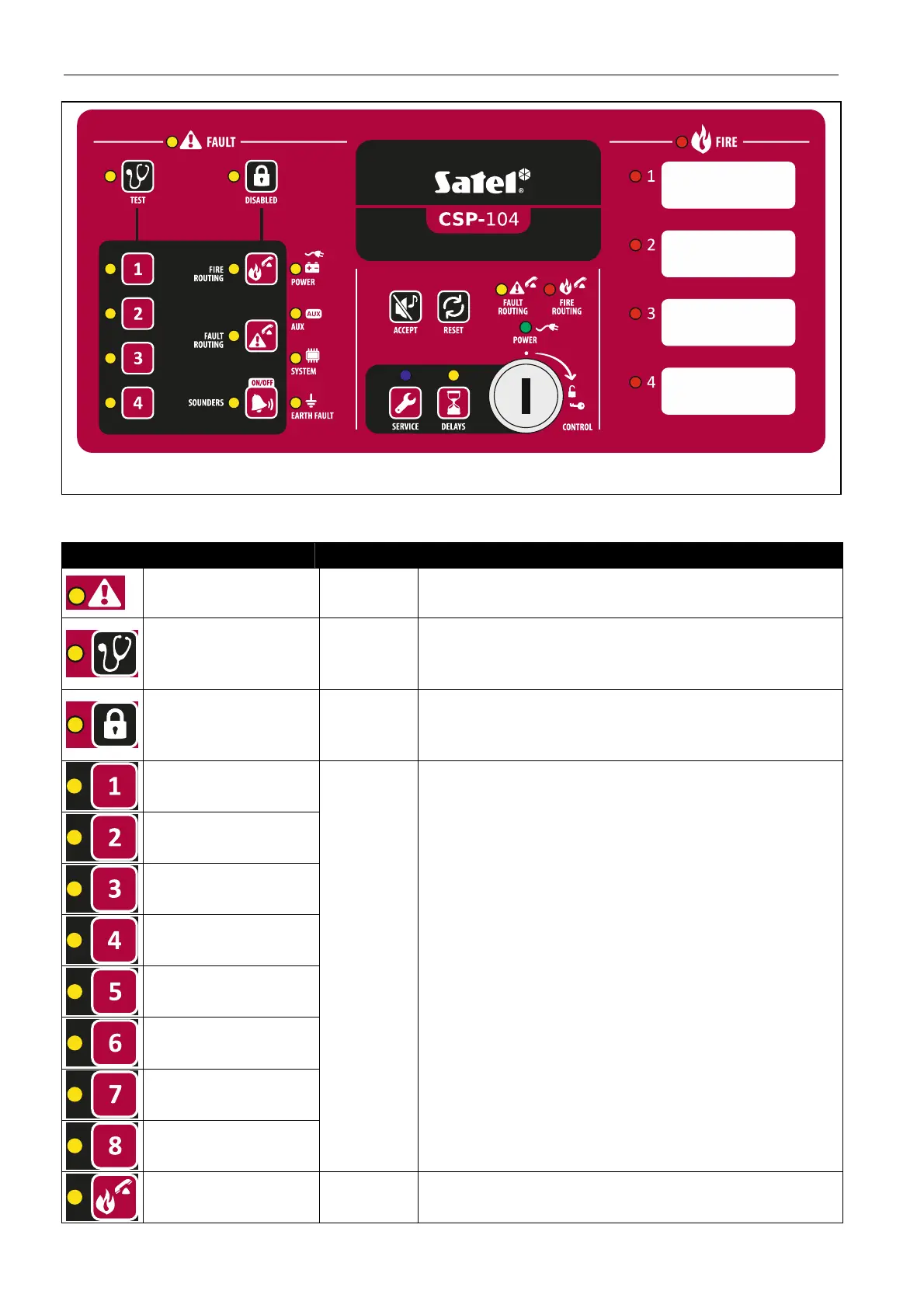

Fig. 7. CSP-104 control panel's front panel.
4.2.1 LED indicators
LED Description Color Indications
fault
yellow
ON – fault
blinking – fault memory
test
yellow
blinking – test function is activated
ON – test of zones, sounders, fire alarm routing
output or fault warning routing output is running
disabled
yellow
blinking – disablement function is activated
ON – zones, sounders, fire alarm routing output or
fault warning routing output are disabled
zone 1
zone 2
zone 3
zone 4
zone 5
zone 6
zone 7
zone 8
yellow
blinking – zone fault (short-circuit or break)
ON – zone is disabled or is being tested
fire routing
yellow
blinking – output fault (short-circuit or break)
ON – output is disabled or is being tested
