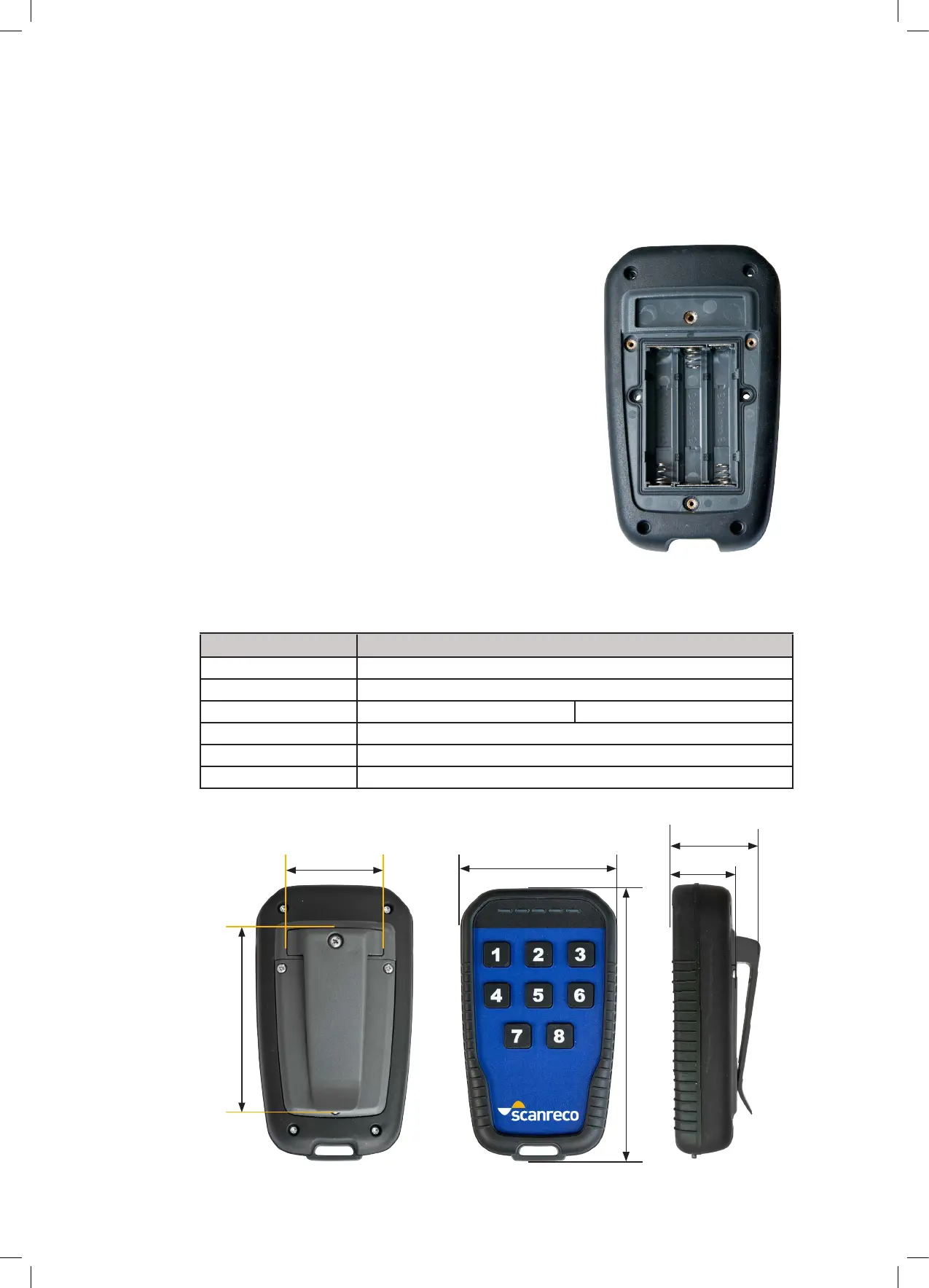

4.4 Installing/changing battery
The G5 Pocket Transmitter is equipped with 3 standard AAA cell batteries; to change
batteries follow the instructions below
1. Remove the belt clip by unscrewing the top middle screw.
2. Unscrew the three screws holding the lid.
3. Remove the batteries.
4. Remove all dirt/dust to ensure no water can enter the unit.
5. Insert new batteries, mind the polarity!
6. Reassemble the lid and the belt clip.
Tighten the screws according to chapter 8.3.
38,8mm
75,2mm
38mm (1,5 in)
27mm
115mm (4,5 in)
67mm (2,6 in)
Attribute Information
Housing material Plastic PC-ABS
IP-class IP67
Ambient temperature -25˚C to +70˚C -15ºF to 160ºF
Supply 3 x AAA battery
Operating time Several months (depending of usage and application)
Weight 160 g (0,35lb.) including battery
4.5 Technical data
10/33
