5.4 Installing/changing battery
The G5 Rocket Flex Transmitter requires 3 re-chargeable AA cell batteries. Batteries
are included in the delivery but needs to be installed, follow the instructions below:

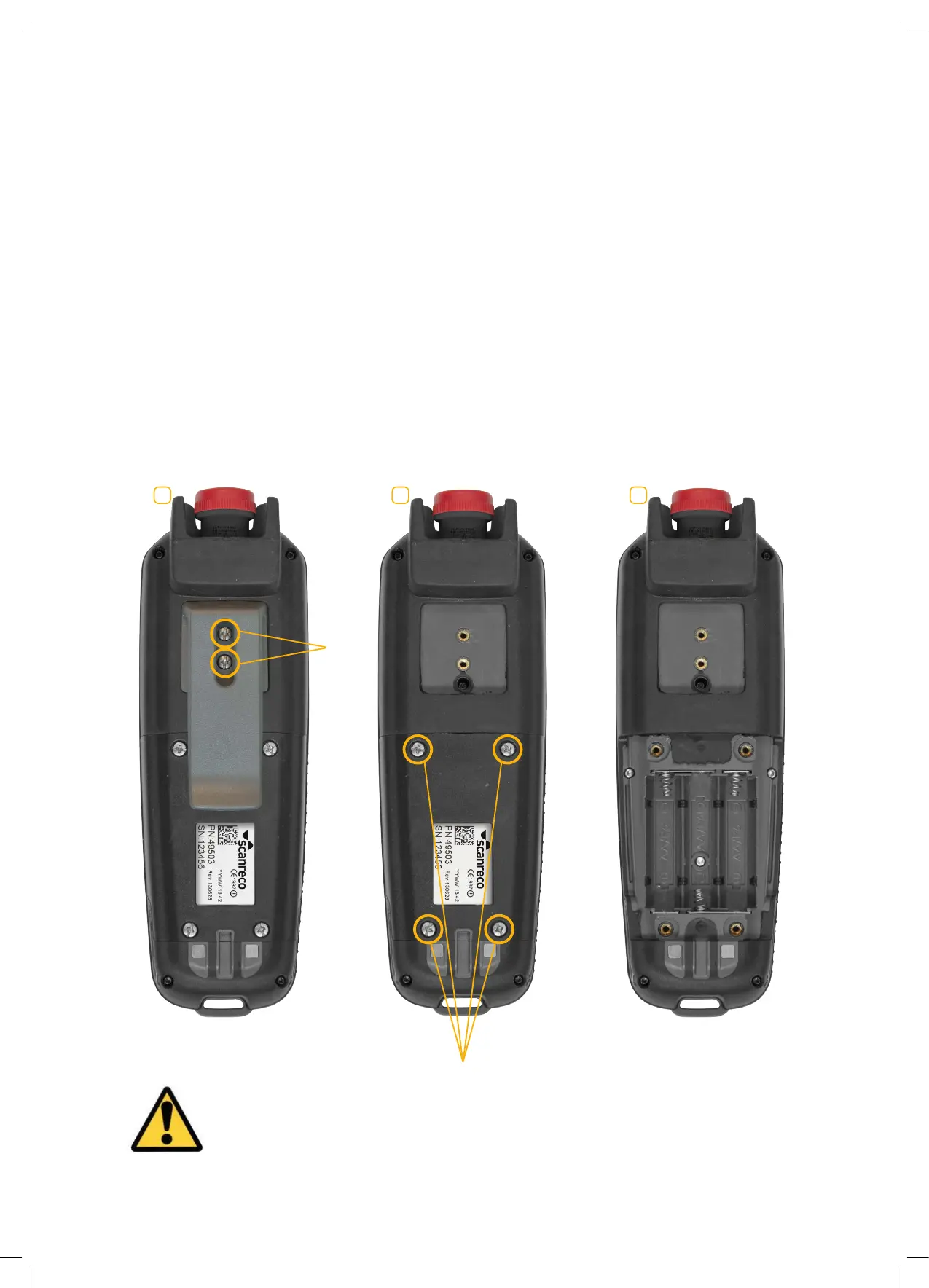

1. Remove the belt clip by unscrewing the top middle screws.
2. Unscrew the four screws holding the lid.
3. Remove the batteries.
4. Remove all dirt/dust to ensure no water can enter the unit.
5. Insert new batteries, mind the polarity!
6. Reattach the lid and the belt clip. Tighten the screws.
0,8 Nm
IMPORTANT!
If using standard non rechargeable batteries, do not use the charger.
0,8 Nm
1 2 3
13/33
