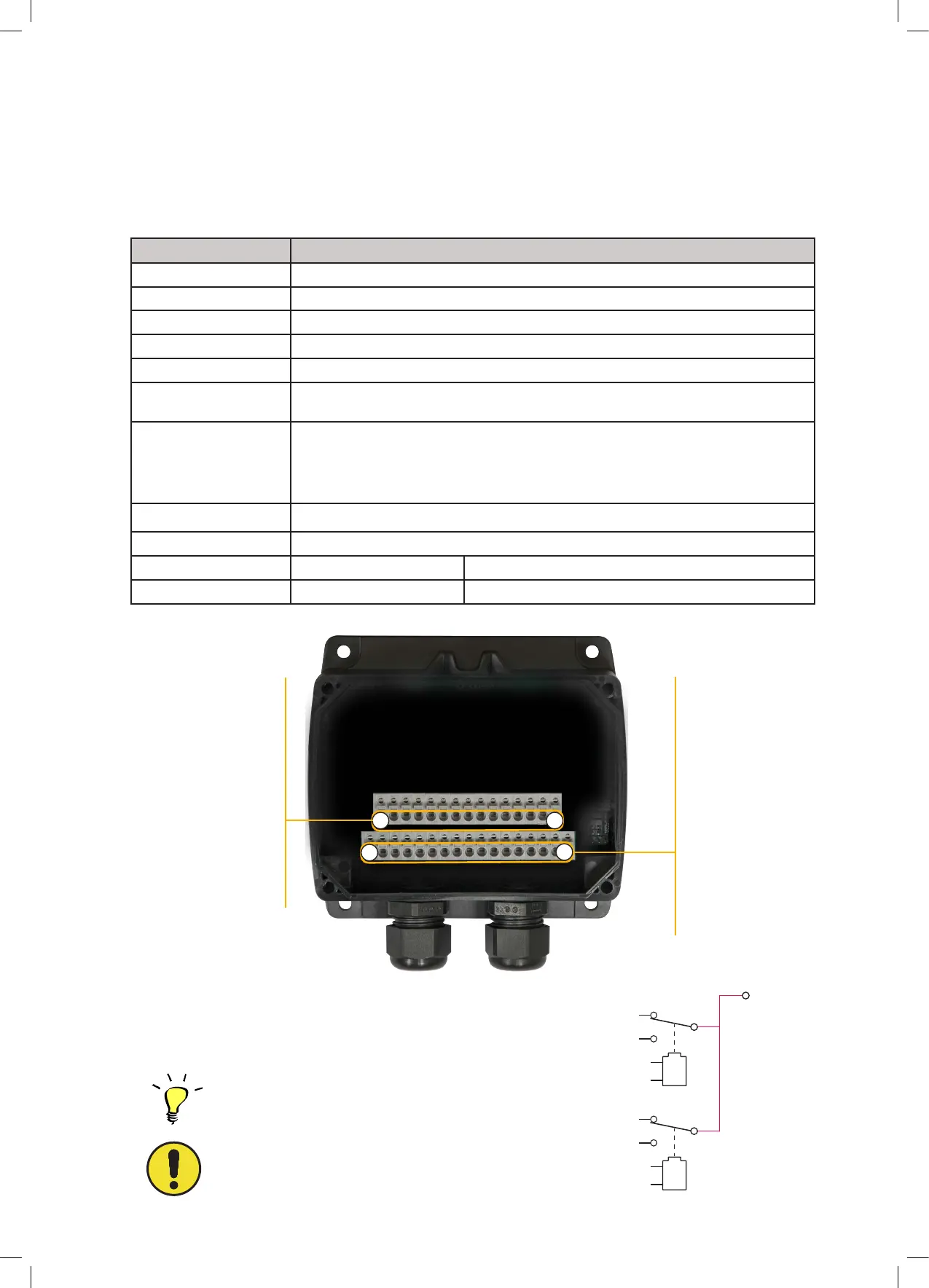

6.5 Technical data Receiver G5 5R & R10
ATTENTION!
After assembly make sure you tighten the housing screws with 0,8 Nm
to avoid any water ingression.
A1 = GND
A2 = Power Supply +
A3 = REL1, common
A4 = REL1, normally closed
A5 = REL1, normally open
A6 = REL2, common
A7 = REL2, normally closed
A8 = REL2, normally open
A9 = REL3, common
A10 = REL3, normally closed
A11 = REL3, normally open
A12 = REL4, common
A13 = REL4, normally closed
A14 = REL4, normally open
A15 = REL5, common
A16 = REL5, normally closed
A17 = REL5, normally open
B1 = REL6, common
B2 = REL6, normally closed
B3 = REL6, normally open
B4 = REL7, common
B5 = REL7, normally closed
B6 = Rel7, normally open
B7 = REL8, common
B8 = REL8, normally closed
B9 = REL8, normally open
B10 = REL9, common
B11 = REL9, normally closed
B12 = REL9, normally open
B13 = REL10, common
B14 = REL10, normally closed
B15 = REL10, normally open
171
1 15
Attribute Information
Power Supply 9-36 VDC
IP-Class IP65
Connector Interface
Spring terminal block (tool free assembly)
Programming interface RS232
Overload Protection Yes, maximum 36 VDC
Current consumption <30 mA (idle)
60 mA + External loads in operation
Digital Outputs
5 or 10 digital outputs. Each output (relay) needs to be supplied with power
through the terminal connector. External fuse is recomended.
Not short circuit proof, not overload protected, max. 5 Ampere load/output.
Each output is electrically isolated.
Cable Glands
2, dimension 8-13mm (0,31-0,51 in.)
Housing screw torque 0.8 Nm
Ambient Temperature -25°C to +70°C ~ -15°F to +160°F
Weight 0,35 Kg ~ 0.77 lbs
Attribute Information
Power Supply 9-36 VDC
IP-Class IP67
Connector Interface 2 x 12 pin Deutsch connectors
Programming interface RS232
Overload Protection Yes, maximum 36 VDC
Current consumption <30 mA (idle), 60 mA + External loads in operation
Digital Inputs 14 (can also be used as digital outputs) Do not exceed supply voltage.
Digital Outputs 19 MOSFET driven outputs, Short circuit proof, overload protected.
E-Stop Output Active when system is operational, short circuit proof, overload pro-
tected.
Max output load 3A/output, 5A/bank, 10A/system
Bank 1 2 3 4 5 6 7 8 9
10
Output 1,Estop 2,3 4,5 6,16 7,9 8,10 11,12 13,17 18,19
14,15
Housing screw torque 0.8 Nm
Ambient Temperature -25°C to +70°C ~ -15°F to +160°F
Weight 0,5 Kg ~ 1.10 lbs
N.C.
Power supply
Common
Common
REL 1
REL 2
N.O.
N.C.
N.O.
NOTE!
Common pin needs to be wired. Normally, power supply needs to
be connected according to the schematic to the right.
19/33
