Belt clip
Battery compartment
(Belt clip removed)
Battery compartment
(Lid removed)

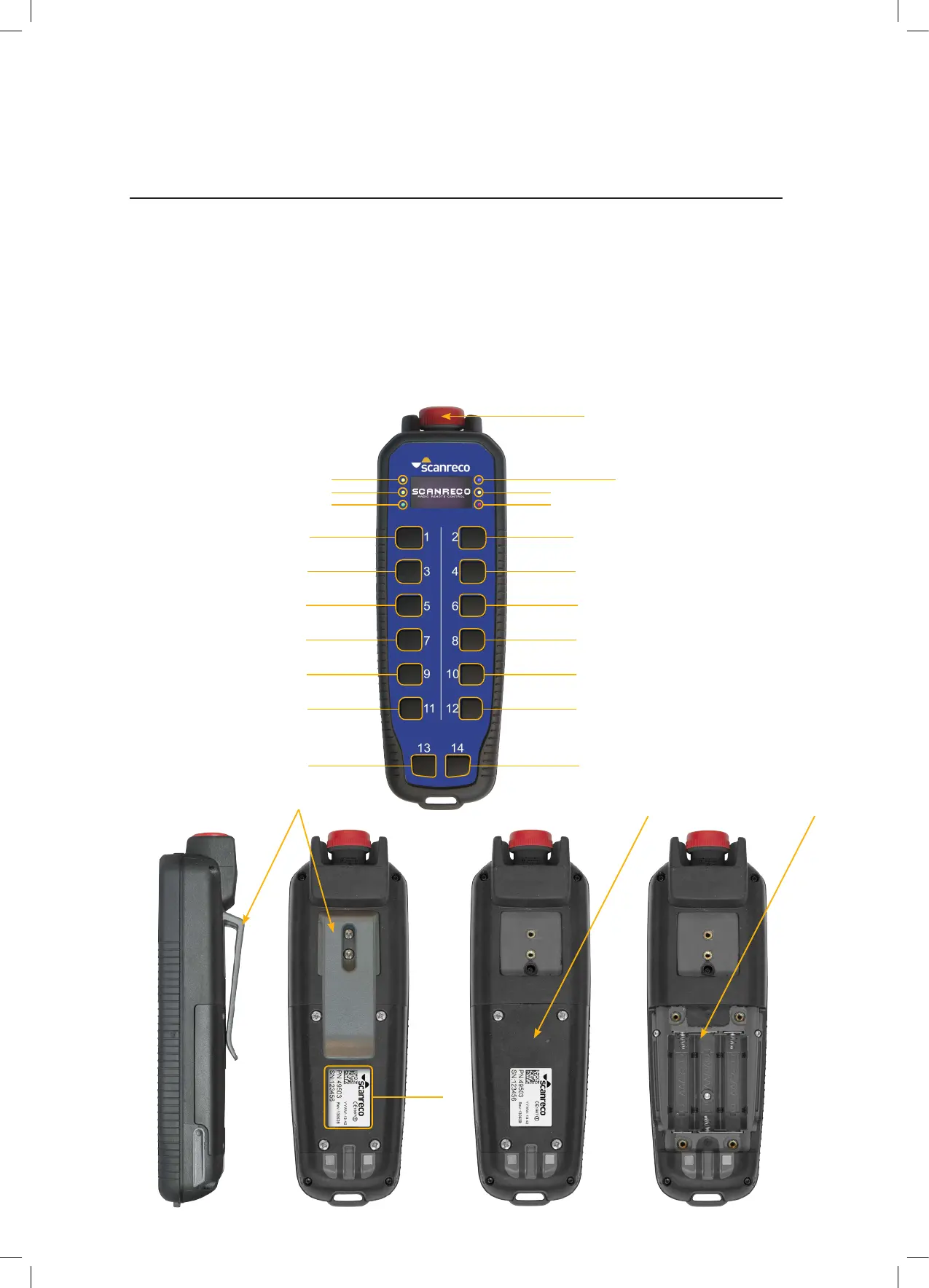

5.1 Product description
5 G5 Rocket Flex Transmitter
The G5 Rocket Flex Transmitter is a light weight, impact and water resistant handheld unit
equipped with up to fourteen ON/OFF function pushbuttons. The pushbuttons can have
a two-step function. It has ve congurable Light Emitting Diodes(LED) for machine and
status feedback as well as a charge indication LED. A 128x64 pixel monochrome OLED
display is optional. The buttons and the LED’s can be congured for a variety of different
operations. The unit is powered with three re-chargeable AA batteries which is included
separately in the delivery. The associated battery charger is recommended to be used
with the unit. The backside has a belt clip for convenient attachment on the operator’s
belt.
Charge indication
Stop button
Button 1 Button 2
Button 3 Button 4
Button 5 Button 6
Button 7 Button 8
Button 9 Button 10
Button 11 Button 12
Button 13
Label
Button 14
Led 3
Led 2 Led 4
Led 1 Led 5
