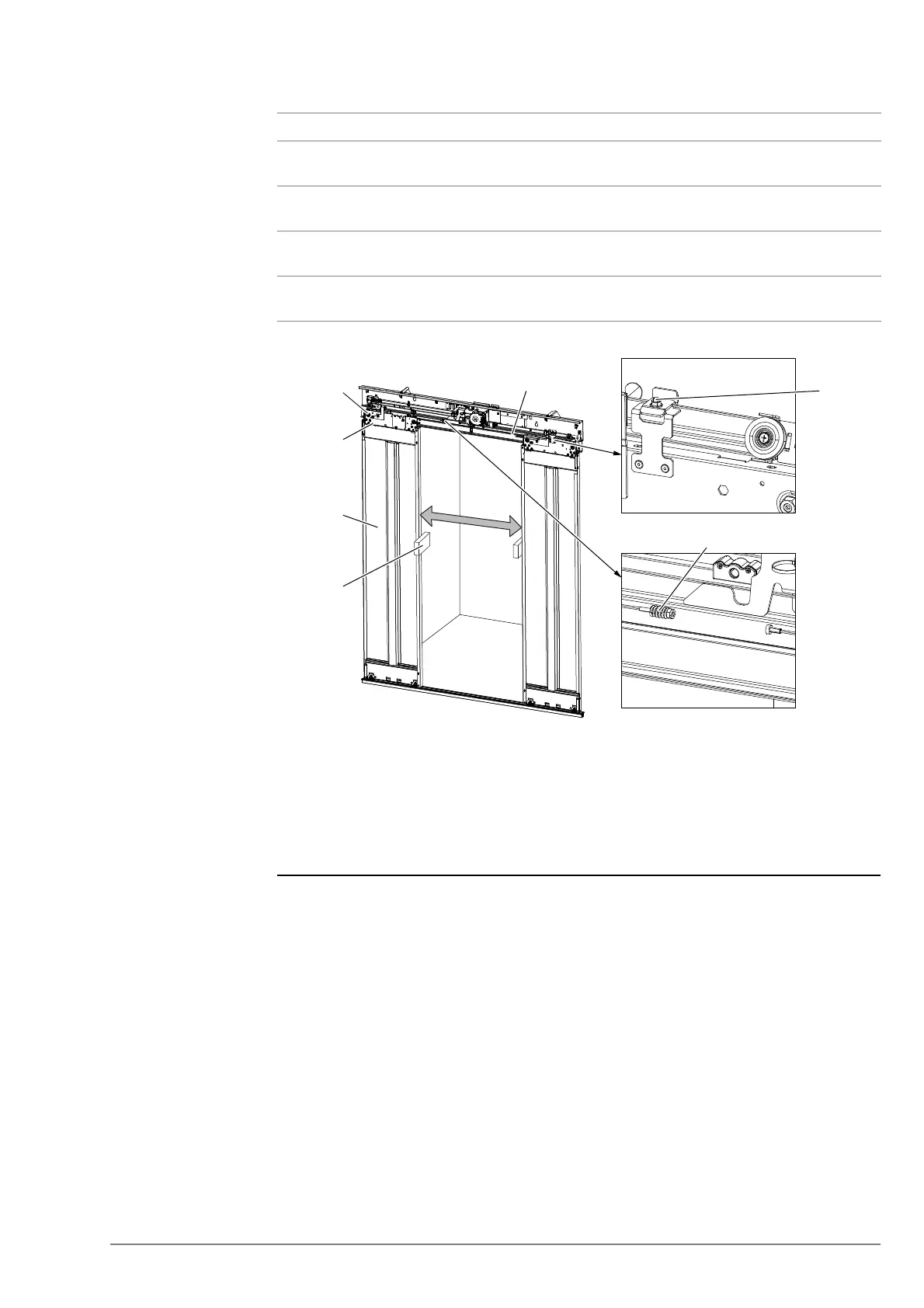

Check Alignment of
Door Panels
[41353545_013; 03.07.2014]
No Step
1
With the door open and using a steel ruler (1), check if the car door panels (2)
are aligned with the front wall or door jamb.
2 If the door panels (2) are not aligned, loosen the M6x20 cutting screw (6) to
unlock the transmission cable (5).
3 Realign the door panels (2) and secure the transmission cable (5) by tightening
the M6x20 cutting screw (6).
4 Check the lock washers (3) are damaged. If necessary, replace the lock
washers (3).
1Steel ruler
2Door panel
3 Lock washer
4 Transmission pulley
5 Transmission cable
6 M6x20 cutting screw
1
2
4
3
5
6
6
