Check Gaps
between Door
Panels and Sill
Check "NO" Tilt of
Panels
Tilt of Panels [34593; 25.11.2013]
Check Easy and
Smooth Running of
Door
No Step
1
Check the gap between door panels and door sill (about 5 mm).
No Step
1

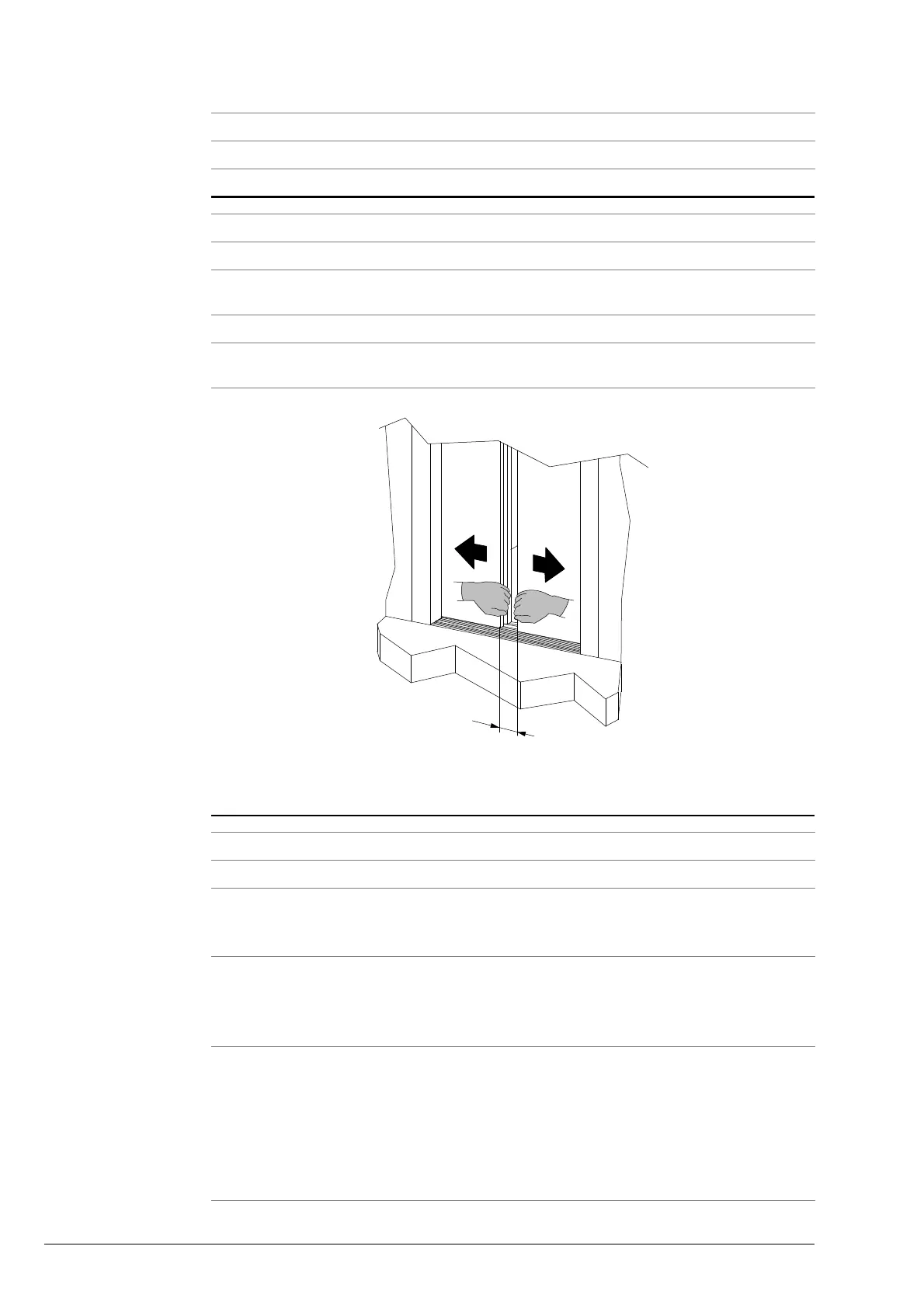

Move door panels manually.
2 Push both panels in the opening direction at the bottom of the panels until the
panels open (as far as possible) with approximately 15 kg.
3 Check the gap. The maximum gap X = 45 mm for C2 and X = 30 mm for T2.
4 If the maximum tolerance is reached, check the door panels adjustment and
the condition of the counter rollers.
X = 30 mm for T2
45 mm for C2 / C4
X
No Step
1
Move door panels manually.
2 Check no
scratching occurs on the door frame or car door in front. If there is scratching,
adjust panel or door frame.
3 Check smooth running of the guide shoes in the sill. If squeezing:
– Remove the guide shoes and check the horizontal bending of the door
panel.
– Exchange the guide shoe.
4 Check the main rollers run smoothly - no rattling, with even moving resistance.
If rattling or uneven movement, do the following:
–
Light rattling: Check condition of main roller. May be acceptable and will
disappear while moving door more often.
–
Heavy rattling: Check / exchange the main roller.
–
Uneven movement: Check adjustment of counter roller.
Check / exchange the main roller.
