Adjustment of Door
Lock
Door Lock [45310310_002; 04.05.2015]
Door Performance
Complete Closure of
Car and Landing
Door

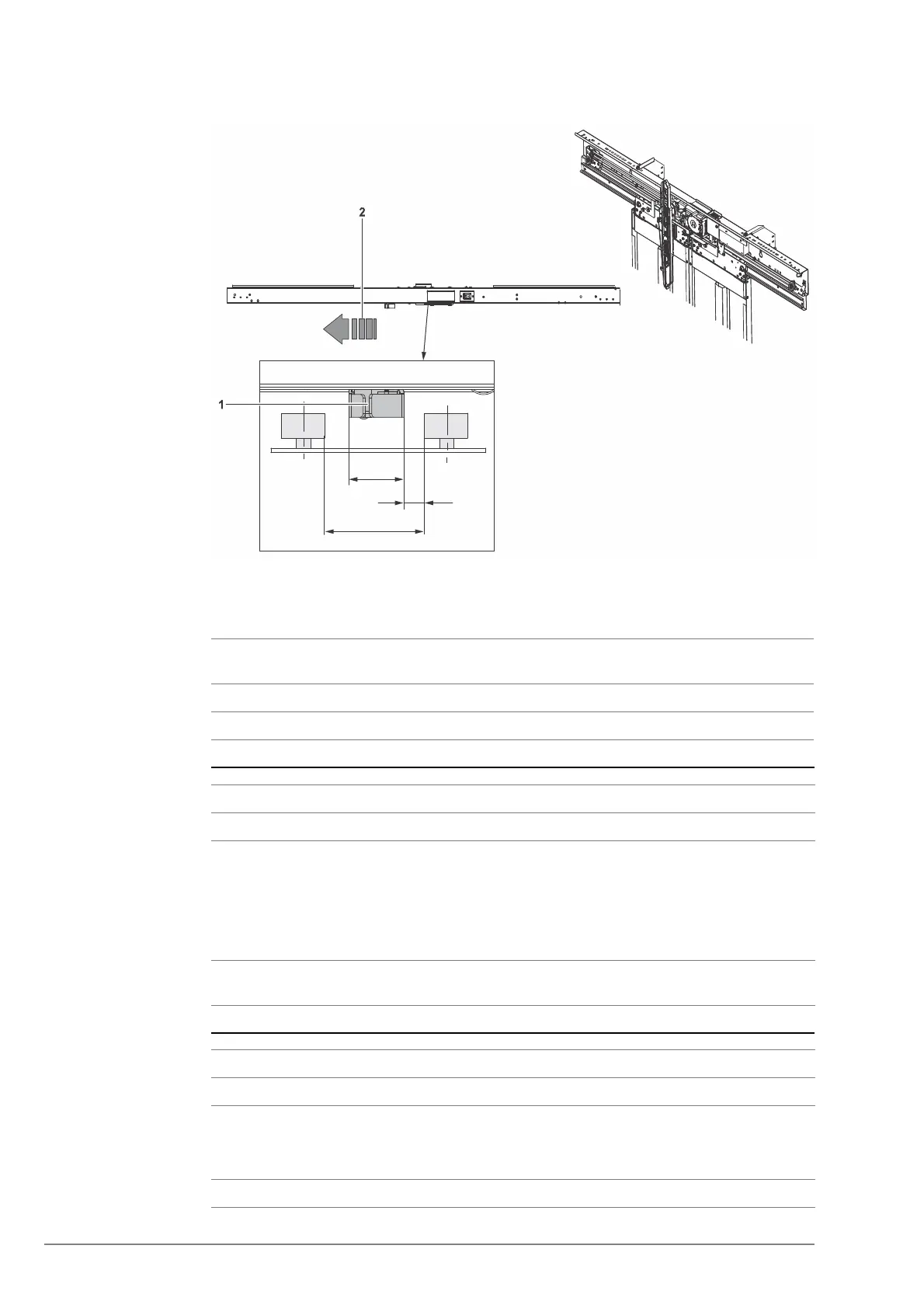

1Clutch
2 Opening direction
Landing
Door Type
Clutch Closed
Z [mm]
Adjustment
Gap X [mm]
Inner Roller Distance
(Lock Closed) Y [mm]
Z (+CDL)
WIA
39 22 (T2), 17 (C2) 80 (T2), 75 (C2) 47
FEC 39 12 70 47
X
Y
Z
No Step
1
Run door system in normal or HMI operation mode.
2 Check overall door performance:
– Ride quality.
– No rattling, scratching, etc.
– No door stopping during locking / unlocking.
– No noise during closing of hoistway or car door lock.
3 Check guide shoe noise, if there is considerable noise, adjust or replace
components.
No Step
1
Run door system in normal mode.
2 Check complete closure of landing and car door.
– No visible gaps between door panels.
– No light from hoistway visible, if doors are closed.
3 If necessary, adjust door panels and carrier stop.
