Door Closing T2
Noise Check for DO FEP T2-EU/NA (T2-EU shown) [43402603_010; 17.03.2016]
No Step
1

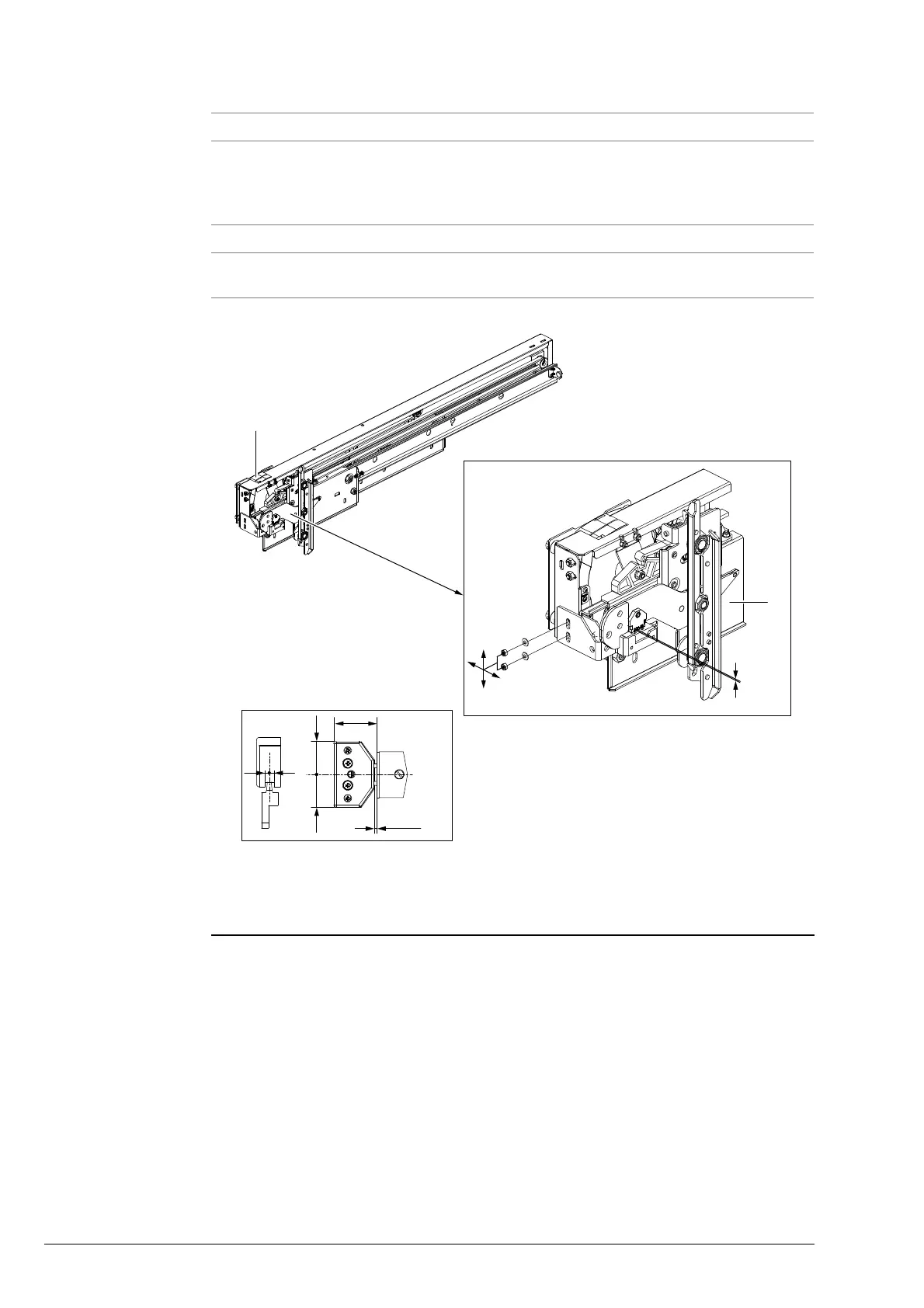

Close and open the car door by pressing the test button on the VF5+/VF7 (for
DO FEP) control (1) on the rear of the door drive and check the distance
between the door carrier (2) and the guiding rail is:
– For DO FEP: 25 mm.
2 If necessary, use the set screw (3) to adjust the gap.
3 Check the rubber buffer (7) and closing bumper (4) and replace them if they
have sign of cracks.
1 VF5+/VF7 control
2 Door carrier
1 ... 2
41
1 ... 2
=
=
=
=
1
2
