Door Closing C2
Noise Check for C2-EU/NA (DO FEP C2-EU shown) [41141759_010; 26.03.2015]
No Step
1
Close and open the car door by pressing the test button on the control (1) on
the rear of the door drive and check that there is a distance of 30 mm between
both door carriers (4).
2 If necessary, use the set screw (3) to adjust the gap.
3 Check the rubber buffer and closing bumper (5) and replace them if they have
sign of cracks.

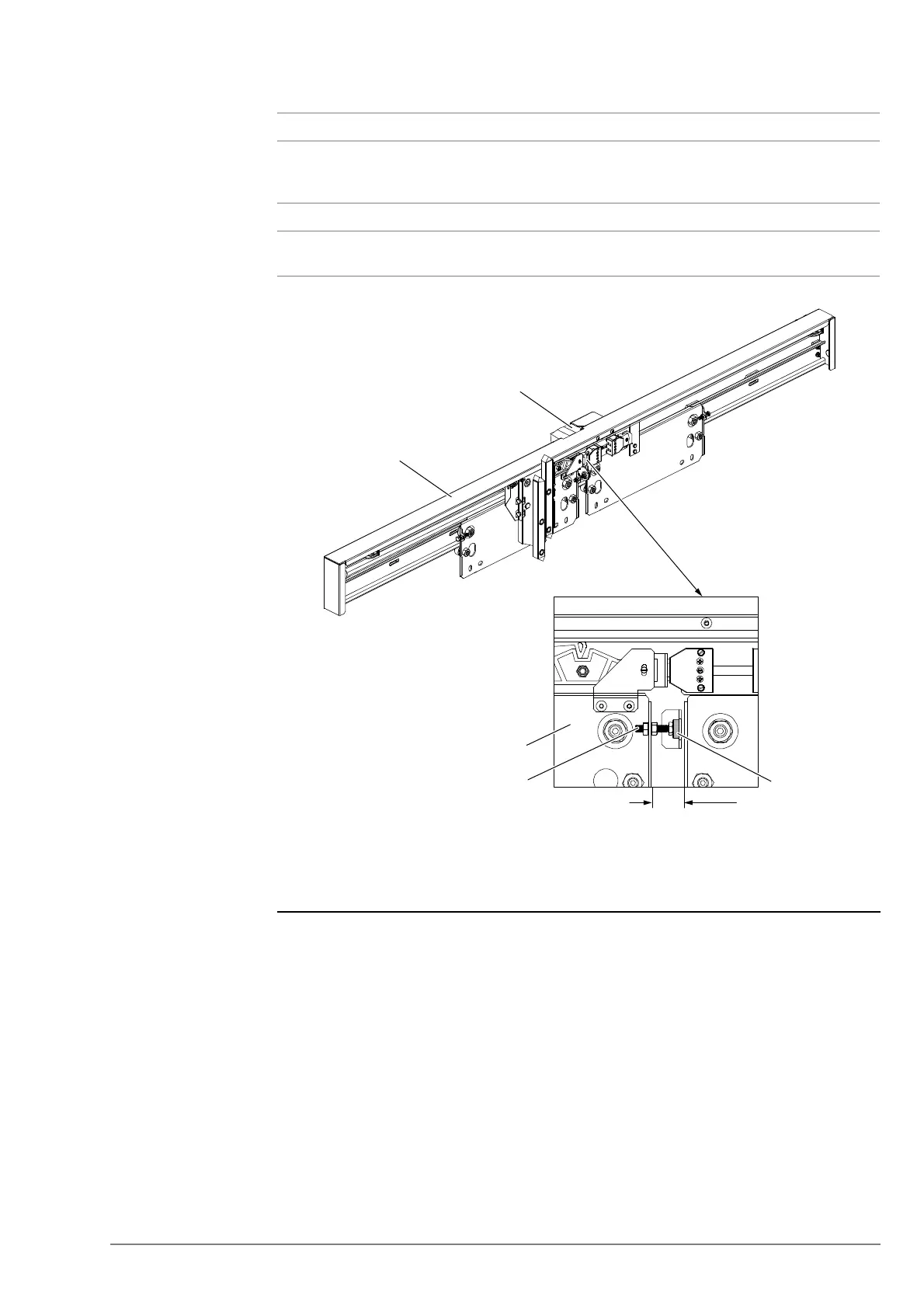

1 Door drive
2 VF5+/VF7 control
3 Set screw
4Door carrier
5 Closing bumper
30 mm
5
3
4
1
2
