Schindler 3300 - Page 228

Schindler 3100/3300/6300 J 43402603 / 01 228/269
Copyright © 2017 INVENTIO AG

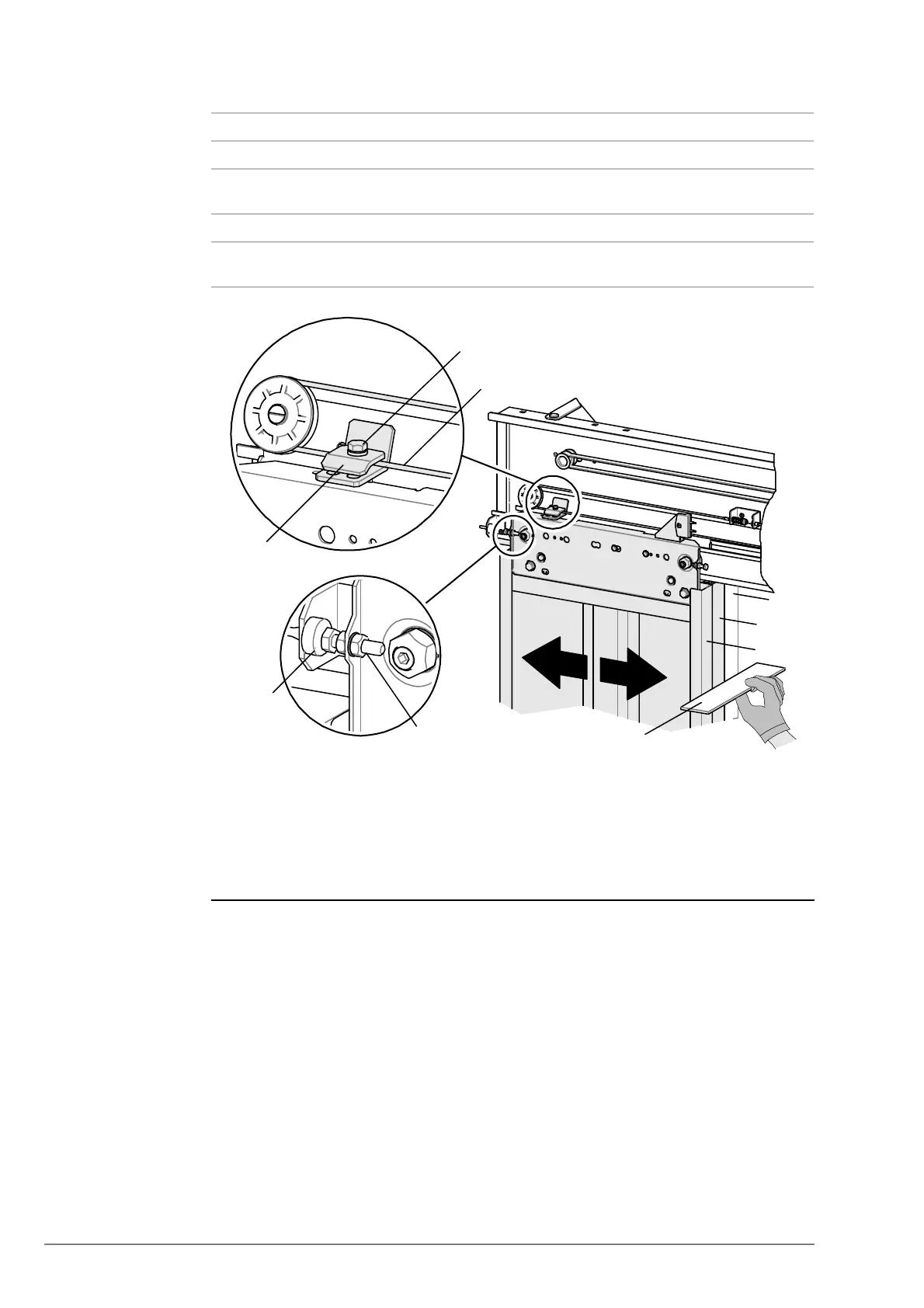

Door Panel
Alignment T2
Synchronization Check for T2-EU/NA [42121; 13.12.2011]
No Step
1
Door opened, check the fast door panel (8) is aligned to the jamb (6).
2 If the fast door panel (8) is not aligned with the jamb (6), adjust it using the set
screw (1).
3 Door opened, check the slow door panel (7) is aligned to the jamb (6).
4 If the slow door panel (7) is not aligned with the jamb (6), adjust it by loosening
the M6 x 16 bolt (4) to slacken the synchronization cable (5).
1 Set screw
2 Closing bumper
3Clamp
4 M6 x 16 bolt
5 Synchronization cable
6Jamb
7 Slow door panel
8 Fast door panel
9 Alignment tool (spirit level or other)
1
2
3
4
5
6
7
8
9
