Schindler 3100/3300/6300 J 43402603 / 01 229/269
Copyright © 2017 INVENTIO AG
Door Panel
Alignment C2

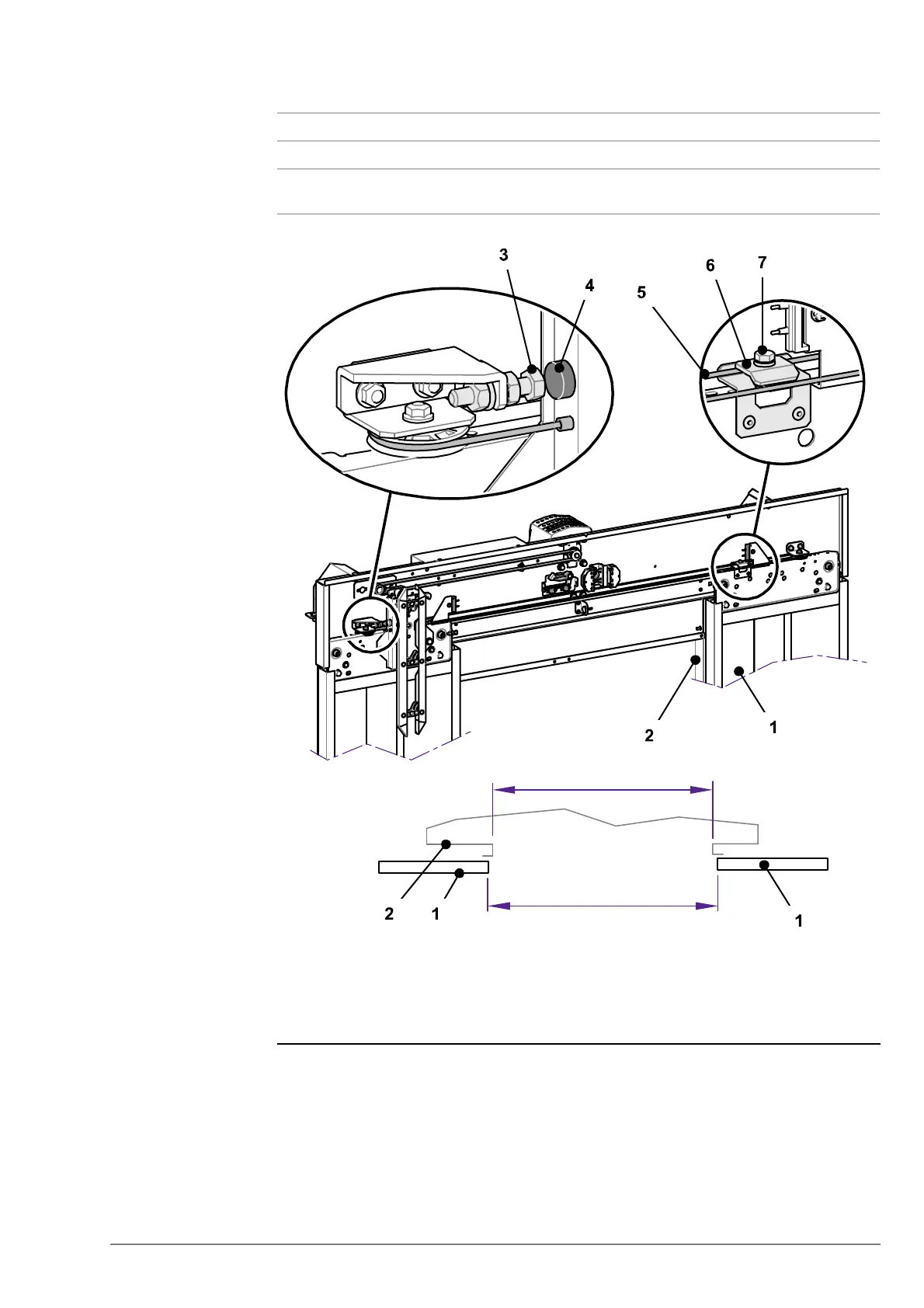

Synchronization Check for C2-EU/AP/NA (C2-EU shown) [13923; 09.07.2013]
No Step
1
Door opened, check that both door panels (1) are aligned (BKE + 15 mm).
2 If the door panels (1) are not aligned, adjust them by using the set screw (3)
and by loosening the M6 x 16 bolt (7) to slacken the synchronization cable (5).
1 Door panel
2Jamb
3Set screw
4 Closing bumper
5 Synchronization cable
6Clamp
7 M6 x 16 bolt
C2-EU/AP/LA: BKE + 15
C2-NA: BKE
BKE
