Schlage L460 - Additional Trim Options: Mounting and Door Preparation; Mounting Posts; Spindles and Springs; Mounting Plate for One-Sided Trim

112 • Schlage • L-Series service manual

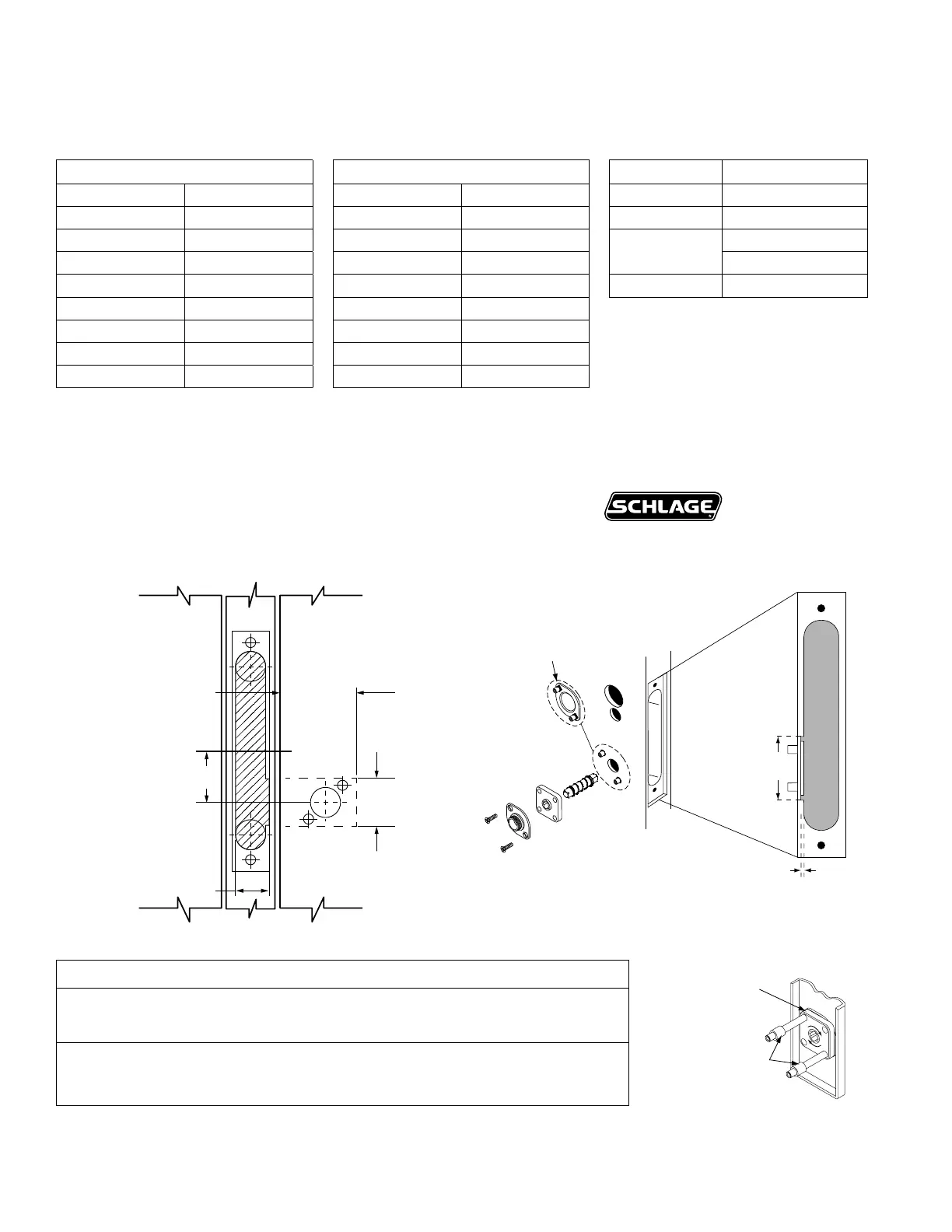

Additional trim options
Mounting posts
Two required per lock
Spindles and springs
Two required per lock
L Functions LV Functions Part number Description
Part number Door thickness Part number Door thickness L283-060 1C\,”–1M\,” doors
L583-211 1C\,” N/A 1C\,” L283-061 2”–3Z\x” doors
L583-212 1C\v” L583-497 1C\v” L283-064* L0172 double dummy
L583-213 2” L583-498 2” L9082 EL/EU
L583-215 2Z\x” L583-500 2Z\x” L283-065* L0170 single dummy
L583-216 2C\v” L583-501 2C\v”
* One required per lock
L583-217 3” L583-502 3”
L583-218 3Z\v” L583-503 3Z\v”
L583-219 3Z\x” L583-504 3Z\x”
Mounting plate for trim one side only
L283-150 Mounting plate and posts for rose trim on one side of door. For lever use with spring cage L283-031, for knob use
with mounting plate L583-321.
DOOR DETAIL
For location of cylinder and/or thumbturn holes, as well as all
other dimensions, see appropriate lock function template.
Measure backset from C
L
of door edge.
C
L
OUTSIDE OF
LH DOOR
INSIDE OF
LH DOOR
DOOR EDGE
3¹⁄₂” (89 mm)
Min. Wood
doors only
1⁹⁄₁₆” (40 mm)
Min. Wood
doors only
LOCK
FRONT
1¹⁄₈” (29 mm)
Min. clearance
NOTE: Prepare door for rose trim on one side of door only.
1.718”
(44 mm)
.11"
3mm
1.76"
45mm
Mounting Plate
Mortise door for proper
fit of mounting plate.
L-Series Installation Instructions
Mounting plate for trim one side
©2007 Schlage Lock Co.
P513-301 Rev. 11/07
ANSI A115.1 1990 Hollow steel door installations
Spacers
Spring cage
(le
ver applications)
OR
Mounting plate
(knob applications)
L283-029 For 1C\v’’ thick hollow steel doors prepared per ANSI A115.1 1990.
Install two spacers between the spring cage (or knob mounting plate) and lock as chassis shown. Spacers
are required for both the inside and outside escutcheons.
NOTE: L escutcheon designs are not applicable for ANSI A115.1 door preparations.
