Schlage L460 - Lv9440, Lv9444

84 • Schlage • L-Series service manual

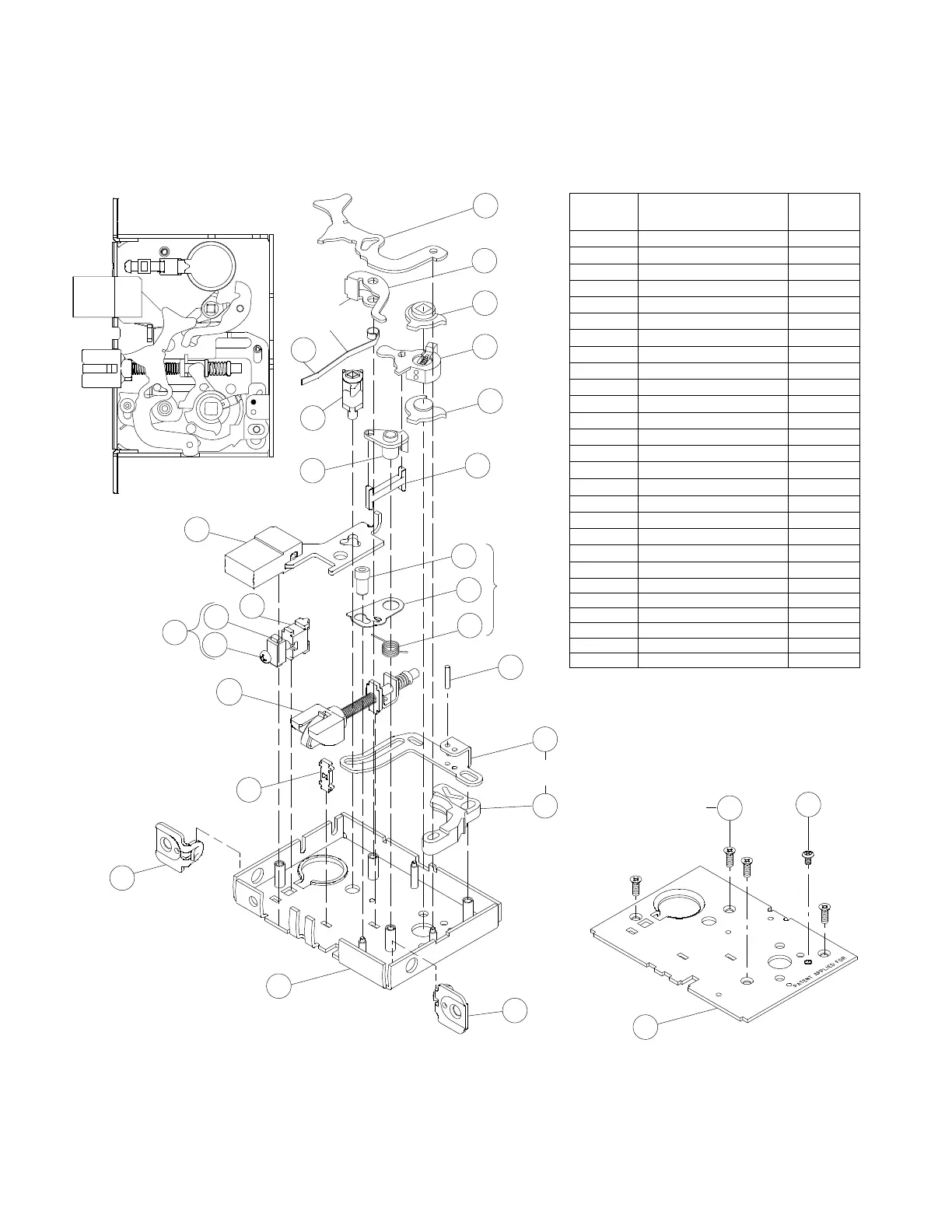

Lock case assemblies
LV9440, LV9444
Assembled Lock Case L283-181
Number Description
Part
Number
3 Deadbolt L283-003
6 Latchbolt L283-008
10 Cylinder Plate & Screw L283-055
13 L9000 Lock Case L283-112
22 Retractor Link L583-024
24 Hub Spring L583-026
25 Fire Door Fuse L583-027
26 Fire Door Catch L583-028
27 Turn Hub L583-029
30 Turn Hub Spring L583-035
31 Auxiliary Bar Guide L583-038
36 Locking Link L583-048
38 Link Pin L583-050
39 Transfer Lever L583-051
43 Simultaneous Retractor L583-058
51
1
Z\v” Faceplate Tab
L583-426
52 Case Cover Screws L583-454
53 Cylinder Retainer Screw L583-481
54 Lock Handing Screw L583-485
55 Cylinder Retainer L583-490
56 Screw Plate L583-492
58 Lock Case Cover L583-496
60 Retractor Lever Assy L283-147
61 Crank Retractor L583-383
62 Bottom Hub L583-386
63 Top Hub L583-387
64 Retractor Catch 24061897
25
26
43
38
36
31
39
22
6
51
13
51
54
58
52
4
(couple before
assembly)**
24
64
61
62
60
63
27
55
10
56
53
3
(couple before
assembly)**
30
**
** See "Passage latch trim" on page 23.
