Schlage L460 - L9175

Lock case assemblies
Schlage • L-Series service manual • 81

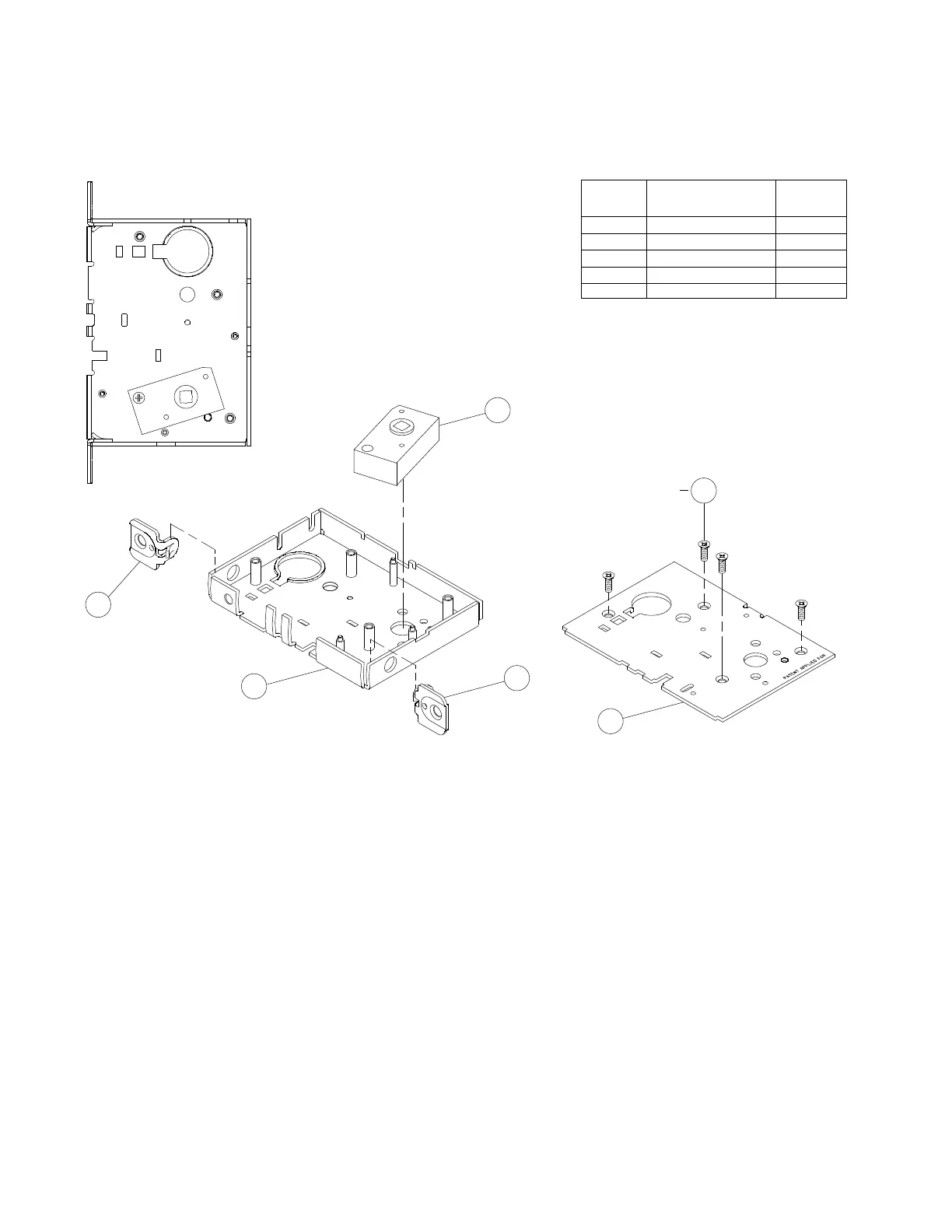

L9175
Assembled Lock Case L283-144
Number Description
Part
Number
11 Spindle Anchor Single L583-468
13 L9000 Lock Case L283-112
51
1
Z\v” Faceplate Tab
L583-426
52 Case Cover Screws L583-454
58 Lock Case Cover L583-496
4
58
52
51
11
13
51
