Schlage L460 - L9460, L9462, L9463, L9464

Lock case assemblies
Schlage • L-Series service manual • 91
L9460, L9462, L9463, L9464

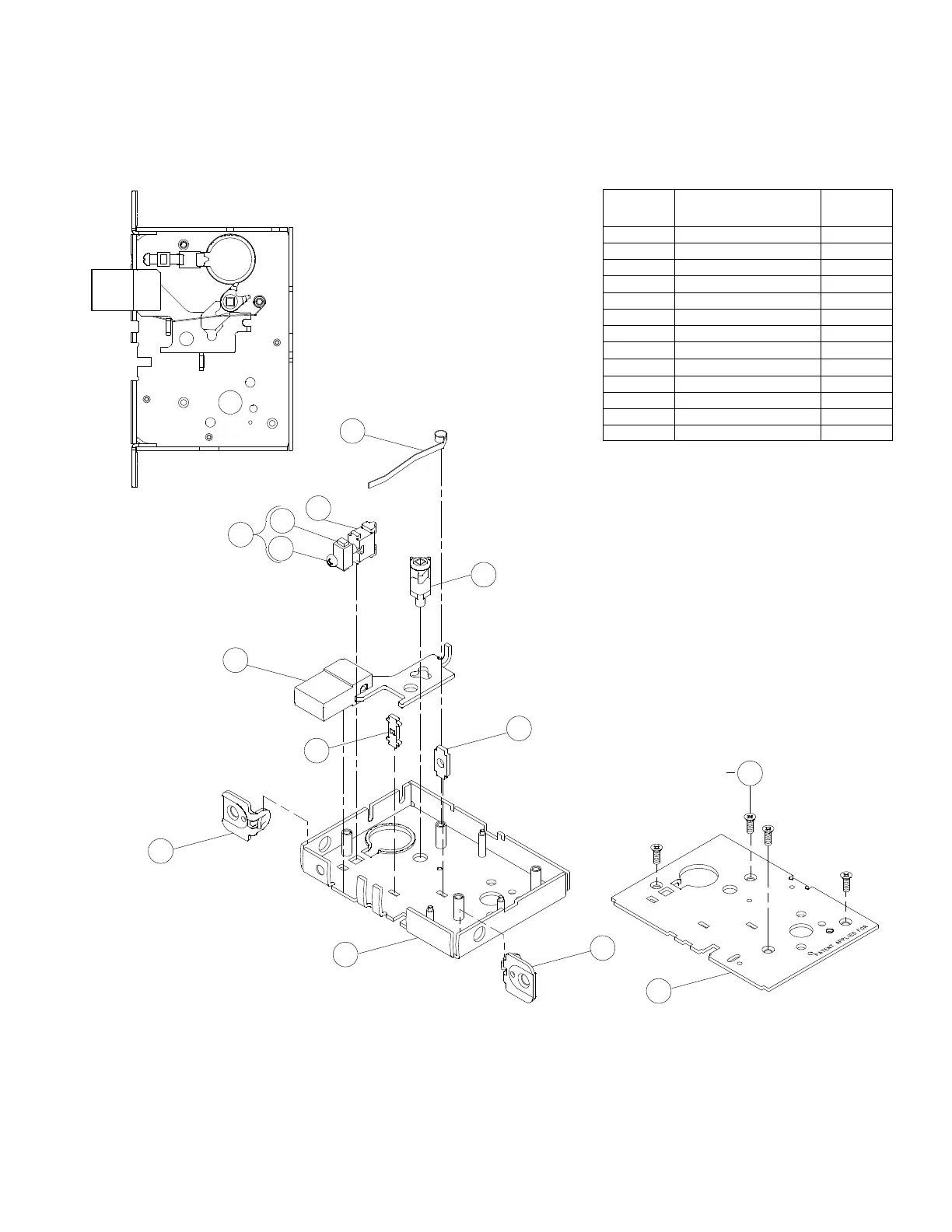

Assembled Lock Case L283-139
Number Description
Part
Number
3 Deadbolt L283-003
10 Cylinder Plate & Screw L283-055
13 L9000 Lock Case L283-112
16 Latchbolt Guide L583-015
27 Turn Hub L583-029
30 Turn Hub Spring L583-035
31 Auxiliary Bar Guide L583-038
51
1
Z\v” Faceplate Tab
L583-426
52 Case Cover Screws L583-454
53 Cylinder Retainer Screw L583-481
55 Cylinder Retainer L583-490
56 Screw Plate L583-492
58 Lock Case Cover L583-496
30
31
16
27
55
10
3
51
56
53
51
13
4
58
52
