Schlage L460 - L9176

82 • Schlage • L-Series service manual

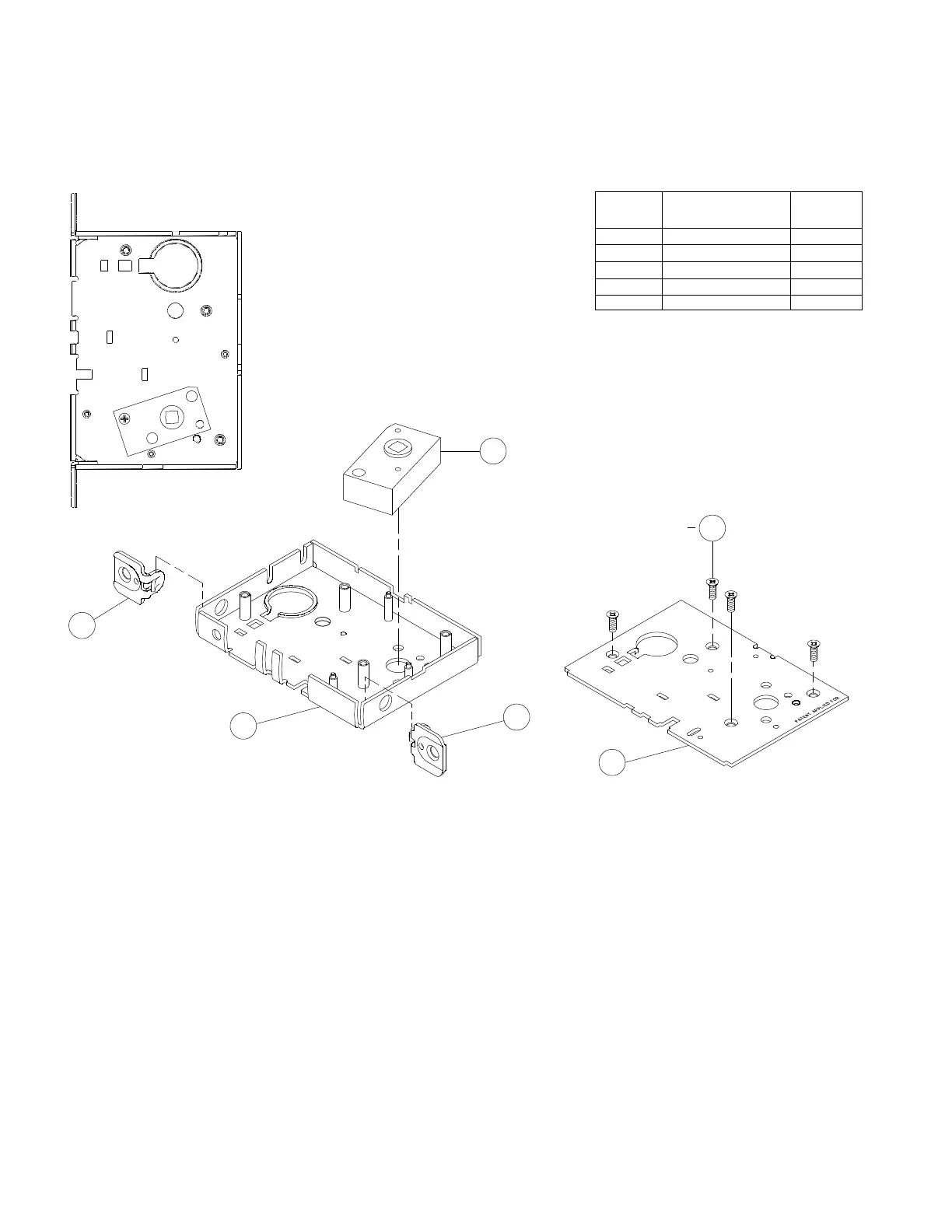

Lock case assemblies
L9176
Assembled Lock Case L283-145
Number Description
Part
Number
13 L9000 Lock Case L283-112
42 Spindle Anchor L583-057
51
1
Z\v” Faceplate Tab
L583-426
52 Case Cover Screws L583-454
58 Lock Case Cover L583-496
4
58
52
42
51
51
13
