Schlage L460 - L9076, L9077

66 • Schlage • L-Series service manual

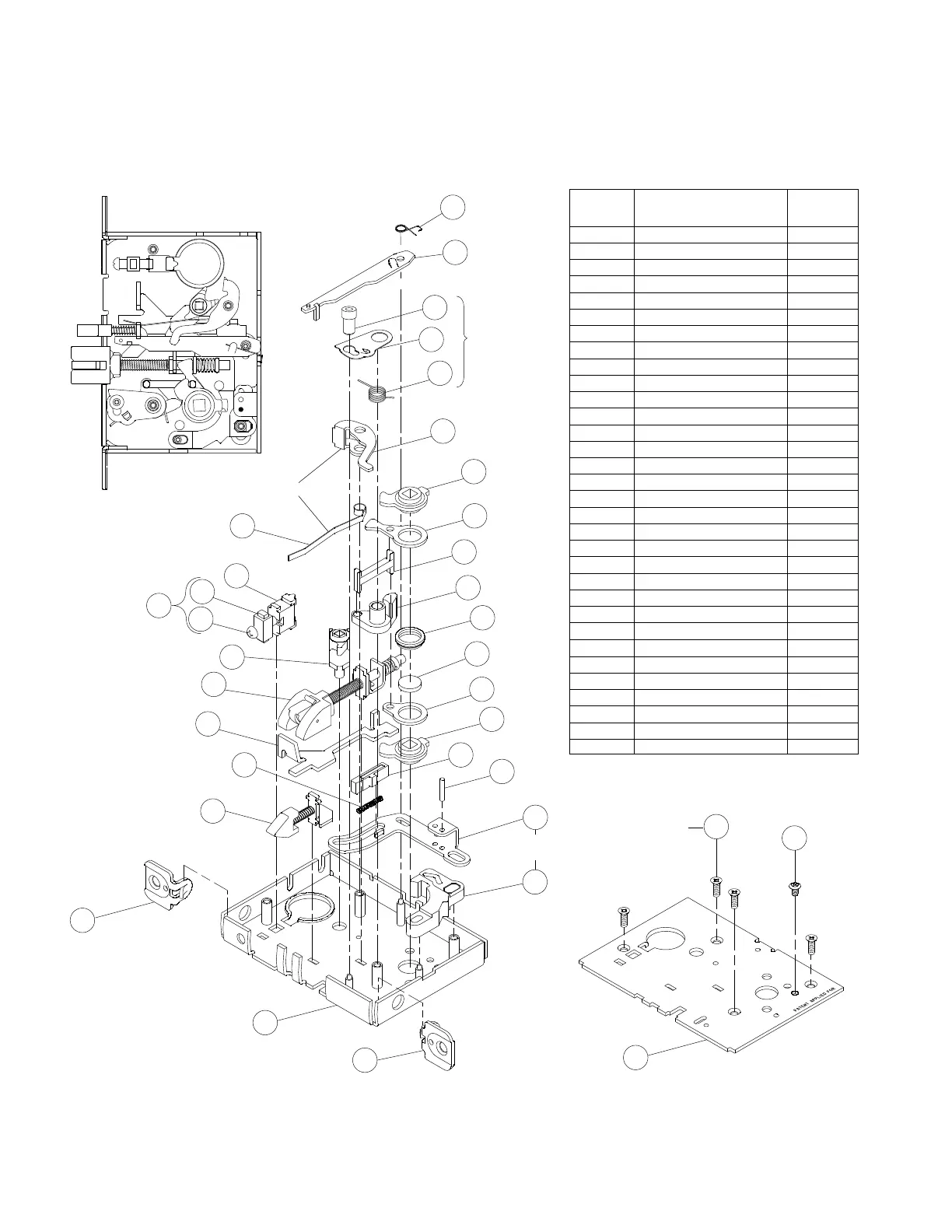

Lock case assemblies
L9076, L9077
Assembled Lock Case L283-039
Number Description
Part
Number
5 Auxiliary Latchbolt L283-006
7 Locking Link L283-010
8 Latchbolt L283-049
10 Cylinder Plate & Screw L283-055
13 L9000 Lock Case L283-112
17 Retractor Hub L583-019
18 Hub Spacer L583-020
19 Retractor Lever L583-021
20 Retractor Rocker L583-022
21 Blocking Plate L583-023
22 Retractor Link L583-024
23 Retractor Crank L583-025
24 Hub Spring L583-026
25 Fire Door Fuse L583-027
26 Fire Door Catch L583-028
27 Turn Hub L583-029
30 Turn Hub Spring L583-035
33 Stop Spring L583-044
34 Locking Catch L583-045
38 Link Pin L583-050
39 Transfer Lever L583-051
47 Transfer Lier L583-156
48 Holdback Dog L583-174
49 Dog Spring L583-192
50 Auxiliary Stop L583-196
51
1
Z\v” Faceplate Tab
L583-426
52 Case Cover Screws L583-454
53 Cylinder Retainer Screw L583-481
54 Lock Handing Screw L583-485
55 Cylinder Retainer L583-490
56 Screw Plate L583-492
58 Lock Case Cover L583-496
58
33
54
52
4
26
48
38
49
30
27
24
17
19
22
23
18
21
20
17
50
25
39
55
10
8
47
56
53
5
51
51
7
34
(couple before
assembly)**
(couple before assembly)**
13
**
** See "Passage latch trim" on page 23.
