Schlage L460 - LV9482 X XL11-543

98 • Schlage • L-Series service manual
Lock case assemblies
LV9482 x XL11-543

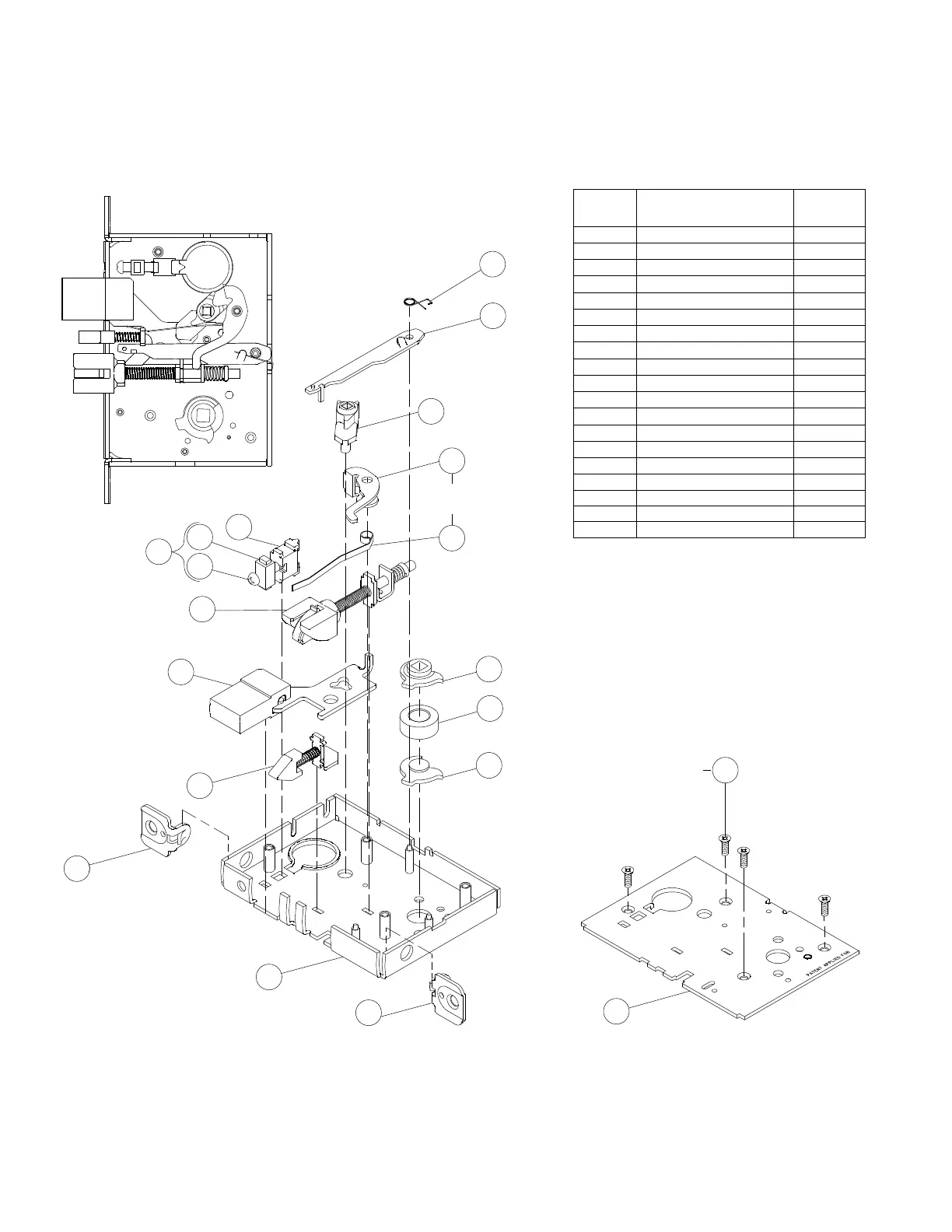

Assembled Lock Case L283-183
Number Description
Part
Number
3 Deadbolt L283-003
5 Auxiliary Latchbolt L283-006
6 Latchbolt L283-008
10 Cylinder Plate & Screw L283-055
13 L9000 Lock Case L283-112
27 Turn Hub L583-029
30 Turn Hub Spring L583-035
33 Stop Spring L583-044
39 Transfer Lever L583-051
50 Auxiliary Stop L583-196
51
1Z\v” Faceplate Tab
L583-426
52 Case Cover Screws L583-454
53 Cylinder Retainer Screw L583-481
55 Cylinder Retainer L583-490
56 Screw Plate L583-492
58 Lock Case Cover L583-496
62 Bottom Hub L583-386
63 Top Hub L583-387
65 Spacer L583-346
65
3
62
63
51
5
6
53
56
10
55
33
50
39
51
13
52
58
4
27
30
(couple before
assembly)**
** See "Passage latch trim" on page 23.
