Schlage L460 - L9482 X XL11-543

Lock case assemblies
Schlage • L-Series service manual • 97
L9482 x XL11-543

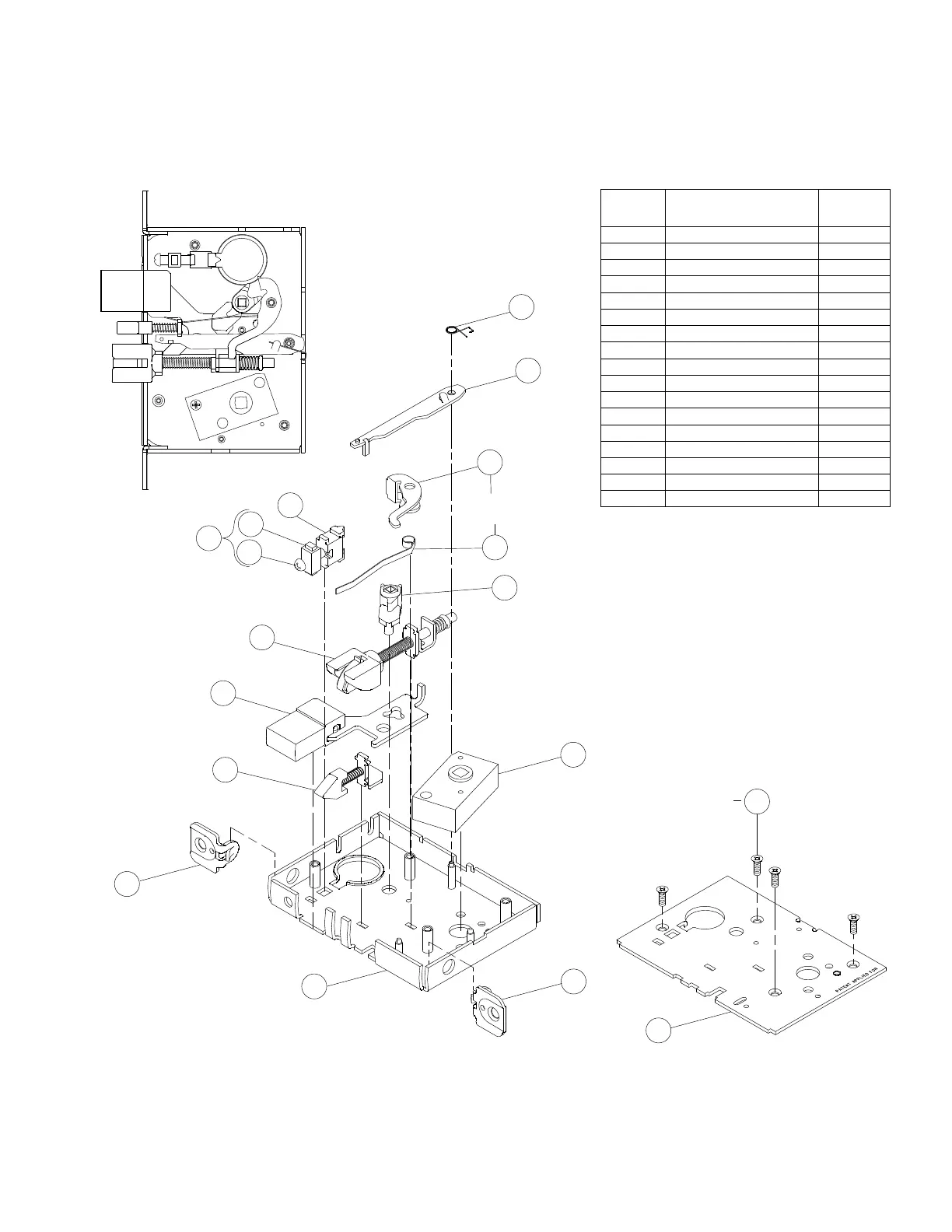

Assembled Lock Case L283-146 x XL11-543
Number Description
Part
Number
3 Deadbolt L283-003
5 Auxiliary Latchbolt L283-006
6 Latchbolt L283-008
10 Cylinder Plate & Screw L283-055
13 L9000 Lock Case L283-112
27 Turn Hub L583-029
30 Turn Hub Spring L583-035
33 Stop Spring L583-044
39 Transfer Lever L583-051
42 Spindle Anchor L583-057
50 Auxiliary Stop L583-196
51
1Z\v” Faceplate Tab
L583-426
52 Case Cover Screws L583-454
53 Cylinder Retainer Screw L583-481
55 Cylinder Retainer L583-490
56 Screw Plate L583-492
58 Lock Case Cover L583-496
4
58
52
55
10
51
6
56
53
51
13
42
5
3
27
30
39
50
33
(couple before
assembly)**
** See "Passage latch trim" on page 23.
