Schlage L460 - L9480, L9485, L9486, L9486 X L583-375

Lock case assemblies
Schlage • L-Series service manual • 95
L9480, L9485, L9486, L9486 x L583-375

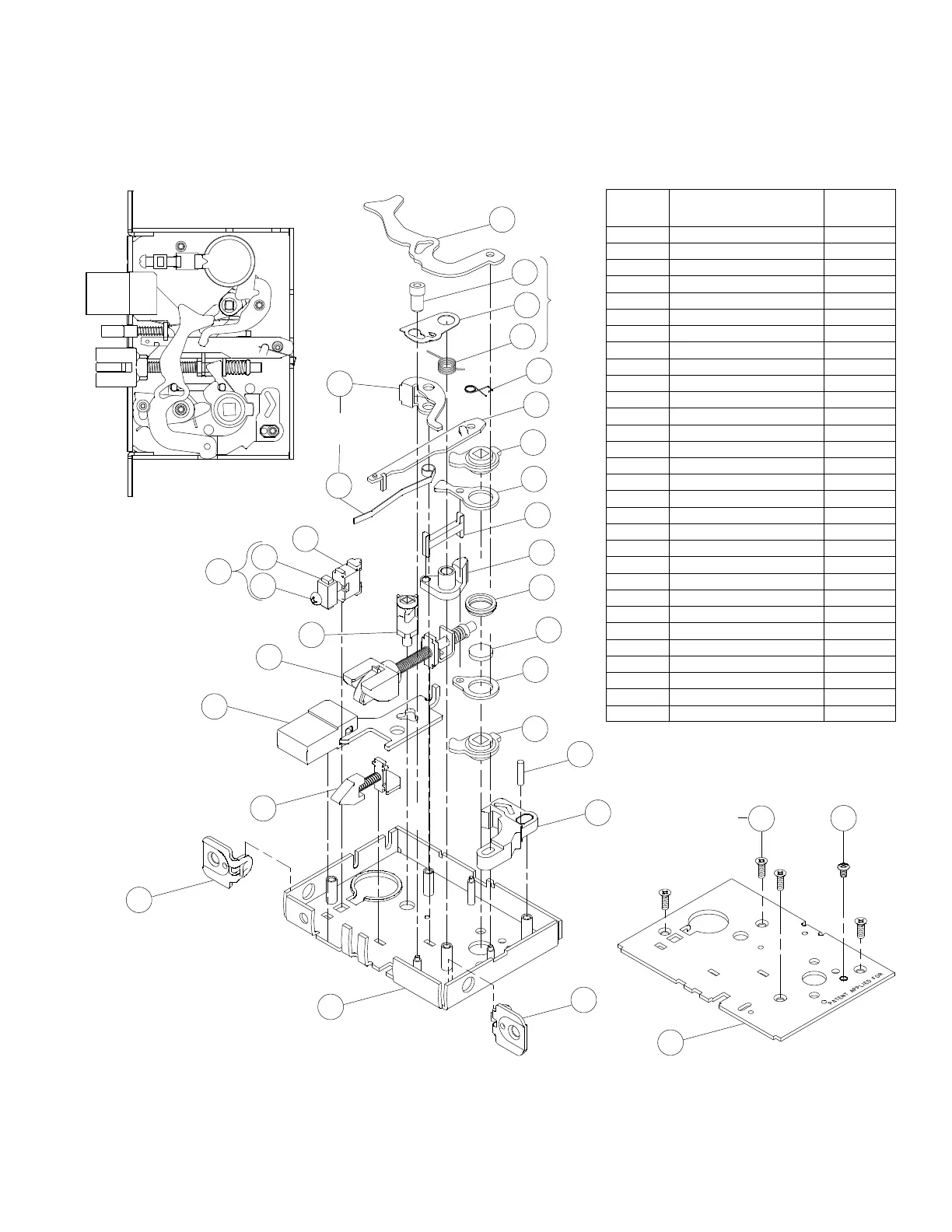

Assembled Lock Case L283-141
Number Description
Part
Number
3 Deadbolt L283-003
5 Auxiliary Latchbolt L283-006
6 Latchbolt L283-008
10 Cylinder Plate & Screw L283-055
13 L9000 Lock Case L283-112
17 Retractor Hub L583-019
18 Hub Spacer L583-020
19 Retractor Lever L583-021
20 Retractor Rocker L583-022
21 Blocking Plate L583-023
22 Retractor Link L583-024
23 Retractor Crank L583-025
24 Hub Spring L583-026
25 Fire Door Fuse L583-027
26 Fire Door Catch L583-028
27 Turn Hub L583-029
30 Turn Hub Spring L583-035
33 Stop Spring L583-044
34 Locking Catch L583-045
39 Transfer Lever L583-051
40 Simultaneous Retractor L583-053
41 Catch Pin L583-056
50 Auxiliary Stop L583-196
51
1Z\v” Faceplate Tab
L583-426
52 Case Cover Screws L583-454
53 Cylinder Retainer Screw L583-481
54 Lock Handing Screw L583-485
55 Cylinder Retainer L583-490
56 Screw Plate L583-492
58 Lock Case Cover L583-496
26
41
34
27
25
55
24
17
19
22
23
18
21
20
17
10
40
33
3
51
6
56
53
5
51
13
30
50
39
(couple before
assembly)**
54
4
58
52
**
** See "Passage latch trim" on page 23.
