Schlage L460 - L9465, L9466, L9473

94 • Schlage • L-Series service manual

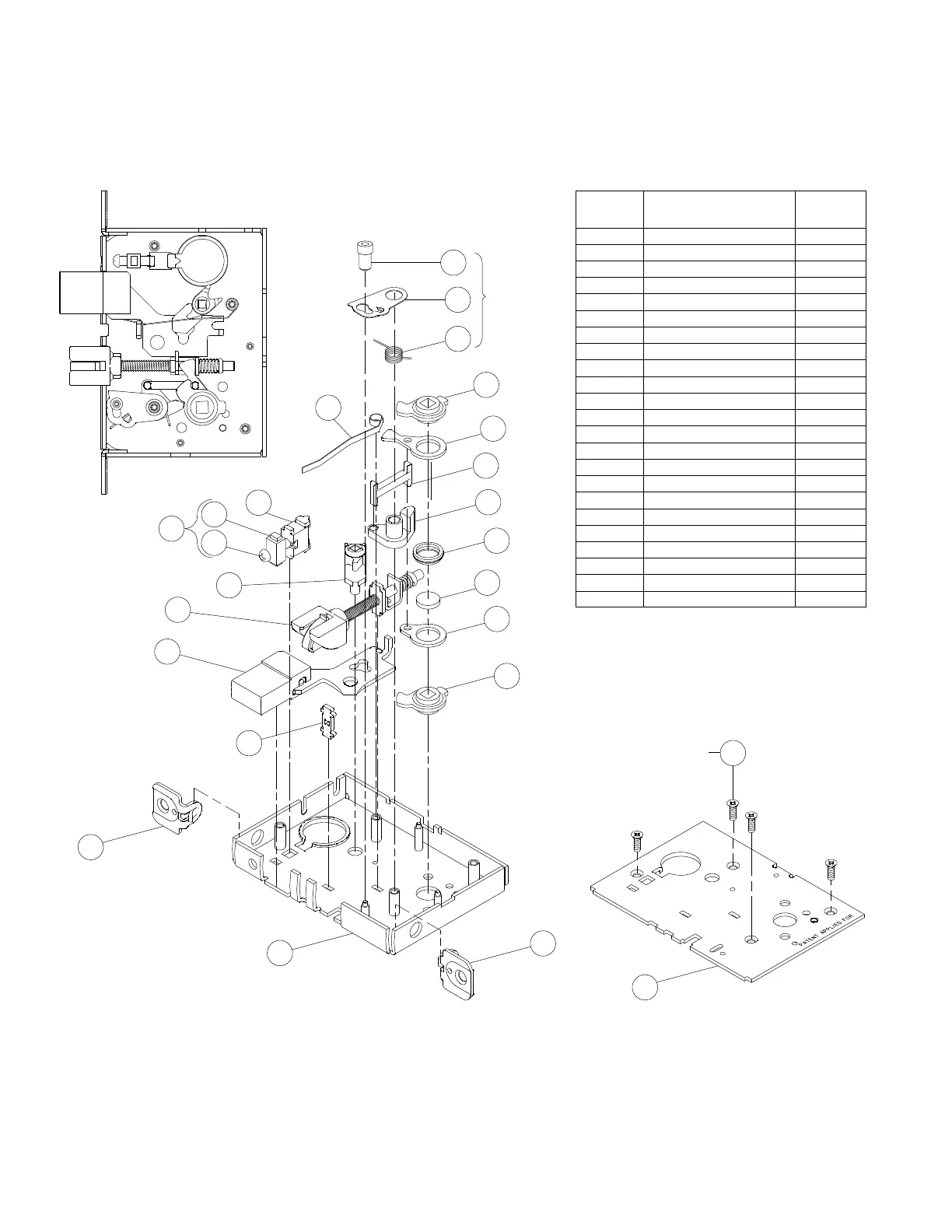

Lock case assemblies
L9465, L9466, L9473
Assembled Lock Case L283-140
Number Description
Part
Number
6 Latchbolt L283-008
10 Cylinder Plate & Screw L283-055
12 Deadbolt L583-075
13 L9000 Lock Case L283-112
17 Retractor Hub L583-019
18 Hub Spacer L583-020
19 Retractor Lever L583-021
20 Retractor Rocker L583-022
21 Blocking Plate L583-023
22 Retractor Link L583-024
23 Retractor Crank L583-025
24 Hub Spring L583-026
25 Fire Door Fuse L583-027
26 Fire Door Catch L583-028
27 Turn Hub L583-029
30 Turn Hub Spring L583-035
31 Auxiliary Bar Guide L583-038
51
1Z\v” Faceplate Tab
L583-426
52 Case Cover Screws L583-454
53 Cylinder Retainer Screw L583-481
55 Cylinder Retainer L583-490
56 Screw Plate L583-492
58 Lock Case Cover L583-496
30
25
26
24
27
31
17
19
22
23
18
21
20
17
55
10
12
6
56
53
51
51
13
4
58
52
**
** See "Passage latch trim" on page 23.
