70 • Schlage • L-Series service manual

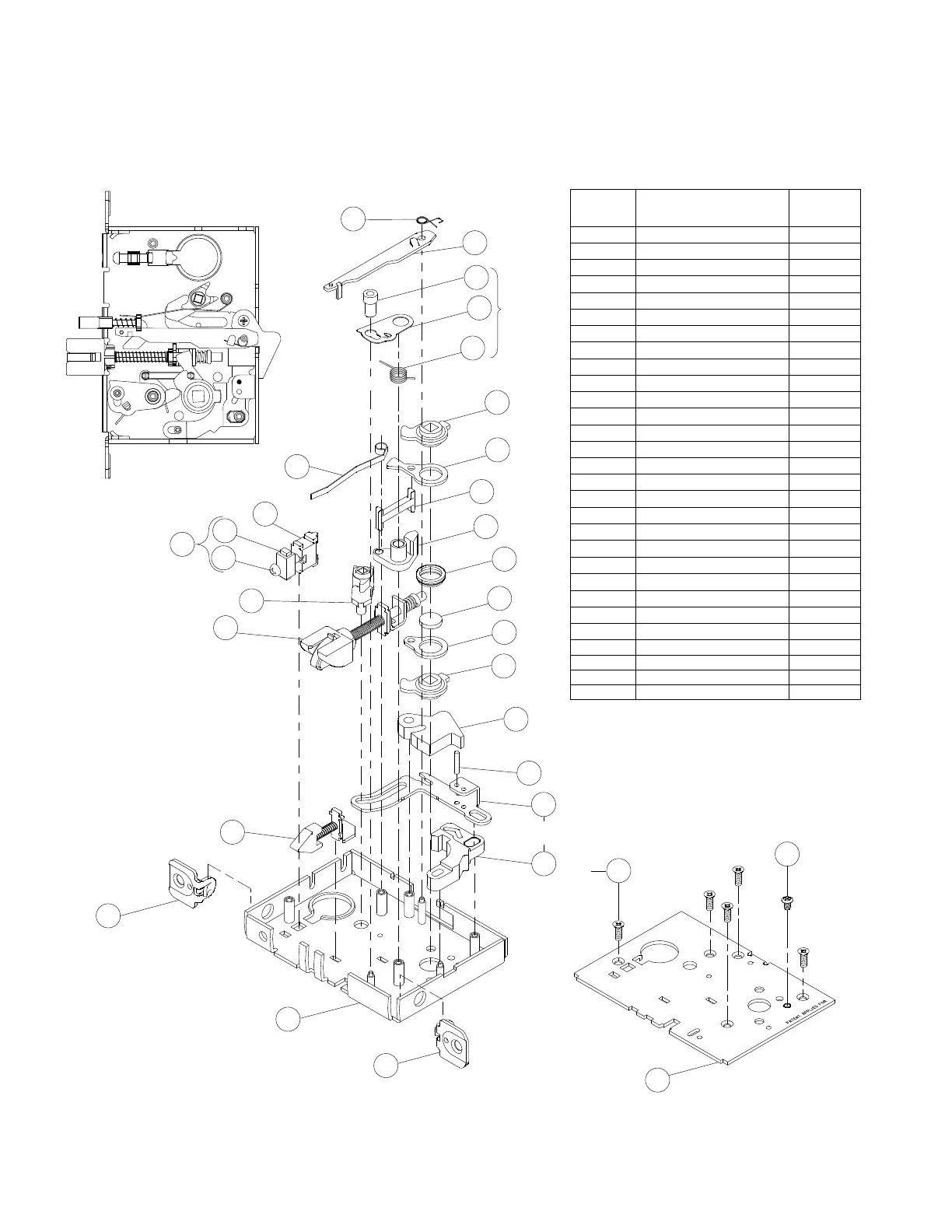

Lock case assemblies
LM9380
Assembled Lock Case L283-316
Number Description
Part
Number
5 Auxiliary Latchbolt L283-006
6 Latchbolt L283-336
10 Cylinder Plate & Screw L283-055
17 Retractor Hub L583-019
18 Hub Spacer L583-020
19 Retractor Lever L583-021
20 Retractor Rocker L583-022
21 Blocking Plate L583-023
22 Retractor Link L583-024
23 Retractor Crank L583-025
24 Hub Spring L583-026
25 Fire Door Fuse L583-027
26 Fire Door Catch L583-028
27 Turn Hub L583-029
30 Turn Hub Spring L583-035
33 Stop Spring L583-044
34 Locking Catch L583-045
38 Link Pin L583-050
50 Auxiliary Stop L583-196
51
1
Z\v” Faceplate Tab
L583-426
52 Case Cover Screws L583-454
53 Cylinder Retainer Screw L583-481
54 Lock Handing Screw L583-485
55 Cylinder Retainer L583-490
56 Screw Plate L583-492
66 LM9000 Lock Case L283-312
67 LM9000 Lock Case Cover L583-491
68 Locking Link L583-505
69 Lier L583-506
26
30
27
24
17
19
22
23
18
21
20
33
50
25
55
10
6
56
53
5
51
51
(couple before
assembly)
34
68
38
17
**
**
52
5
67
66
69
54
** See "Passage latch trim" on page 23.
