Schlage L460 - L9040, L9040 X XL11-446, L9044

58 • Schlage • L-Series service manual
Lock case assemblies
L9040, L9040 x XL11-446, L9044

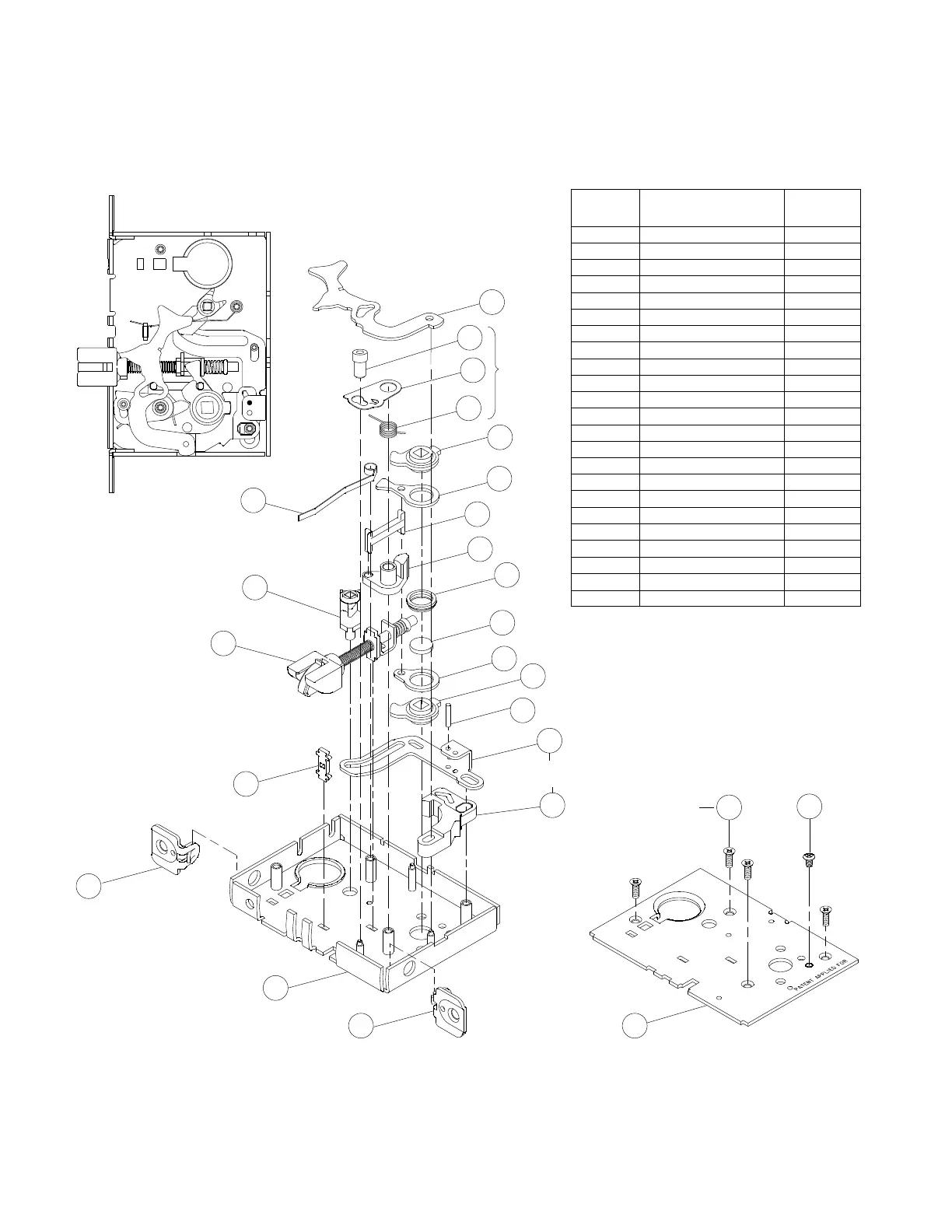

Assembled Lock Case L283-132
Number Description
Part
Number
6 Latchbolt L283-008
13 L9000 Lock Case L283-112
17 Retractor Hub L583-019
18 Hub Spacer L583-020
19 Retractor Lever L583-021
20 Retractor Rocker L583-022
21 Blocking Plate L583-023
22 Retractor Link L583-024
23 Retractor Crank L583-025
24 Hub Spring L583-026
25 Fire Door Fuse L583-027
26 Fire Door Catch L583-028
27 Turn Hub L583-029
30 Turn Hub Spring L583-035
31 Auxiliary Bar Guide L583-038
34 Locking Catch L583-045
36 Locking Link L583-048
38 Link Pin L583-050
43 Simultaneous Retractor L583-058
51
1
Z\v” Faceplate Tab
L583-426
52 Case Cover Screws L583-454
54 Lock Handing Screw L583-485
58 Lock Case Cover L583-496
25
26
43
38
36
34
31
30
27
24
17
19
22
23
18
21
20
17
6
51
13
51
54
58
52
4
(couple before
assembly)
**
**
** See "Passage latch trim" on page 23.
