Schlage L460 - LV9040, LV9040 X XL11-446, LV9044

Lock case assemblies
Schlage • L-Series service manual • 59
LV9040, LV9040 x XL11-446, LV9044

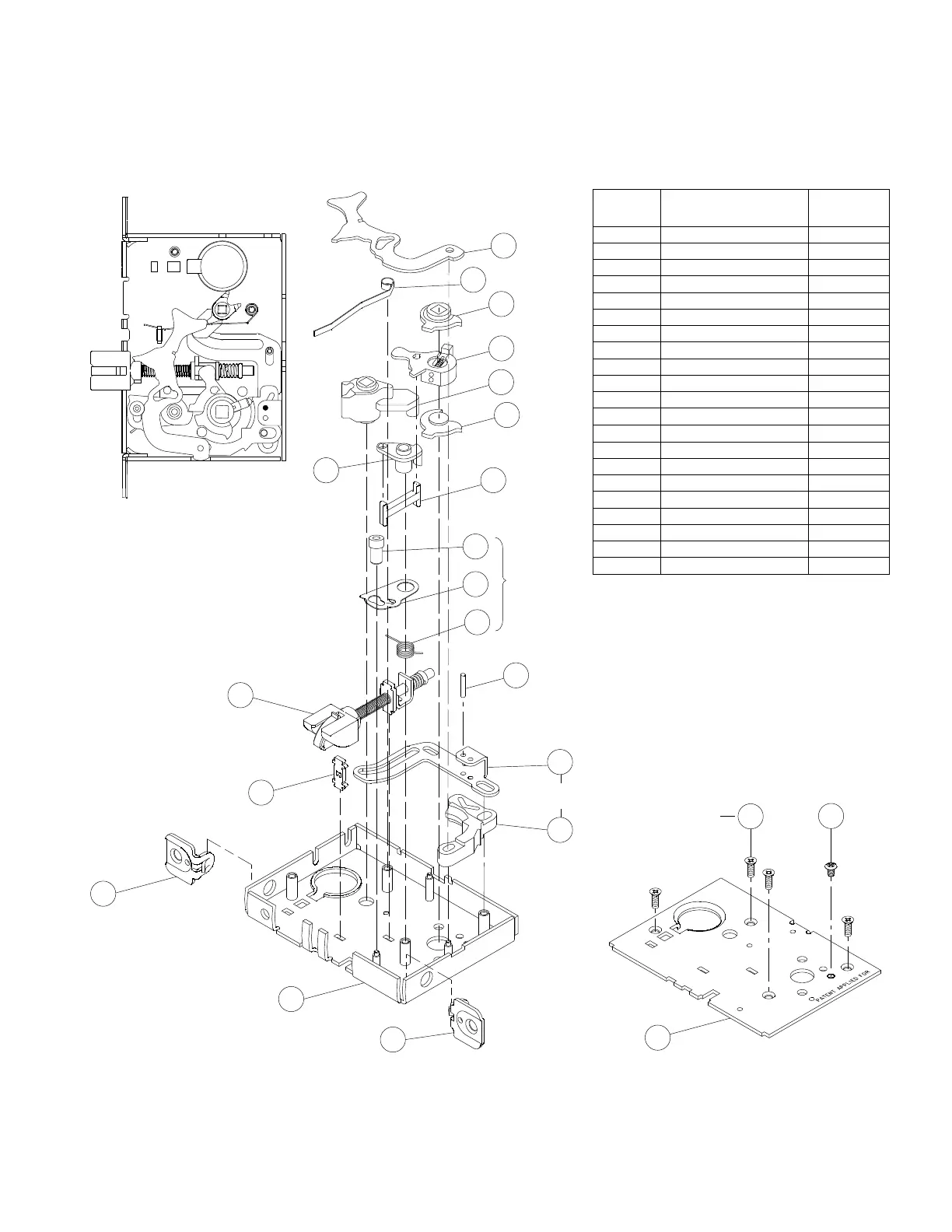

Assembled Lock Case L283-171
Number Description
Part
Number
6 Latchbolt L283-008
13 L9000 Lock Case L283-112
22 Retractor Link L583-024
24 Hub Spring L583-026
25 Fire Door Fuse L583-027
26 Fire Door Catch L583-028
27 Turn Hub L583-029
30 Turn Hub Spring L583-035
31 Auxiliary Bar Guide L583-038
36 Locking Link L583-048
38 Link Pin L583-050
43 Simultaneous Retractor L583-058
51
1
Z\v” Faceplate Tab
L583-426
52 Case Cover Screws L583-454
54 Lock Handing Screw L583-485
58 Lock Case Cover L583-496
60 Retractor Lever Assy L283-147
61 Crank Retractor L583-383
62 Bottom Hub L583-386
63 Top Hub L583-387
64 Retractor Catch 24061897
25
26
43
38
31
30
22
6
51
13
51
54
58
52
4
24
61
62
60
63
27
36
(couple before
assembly)
64
**
**
** See "Passage latch trim" on page 23.
