Schlage L460 - Lm9310, Lm9325

Lock case assemblies
Schlage • L-Series service manual • 57

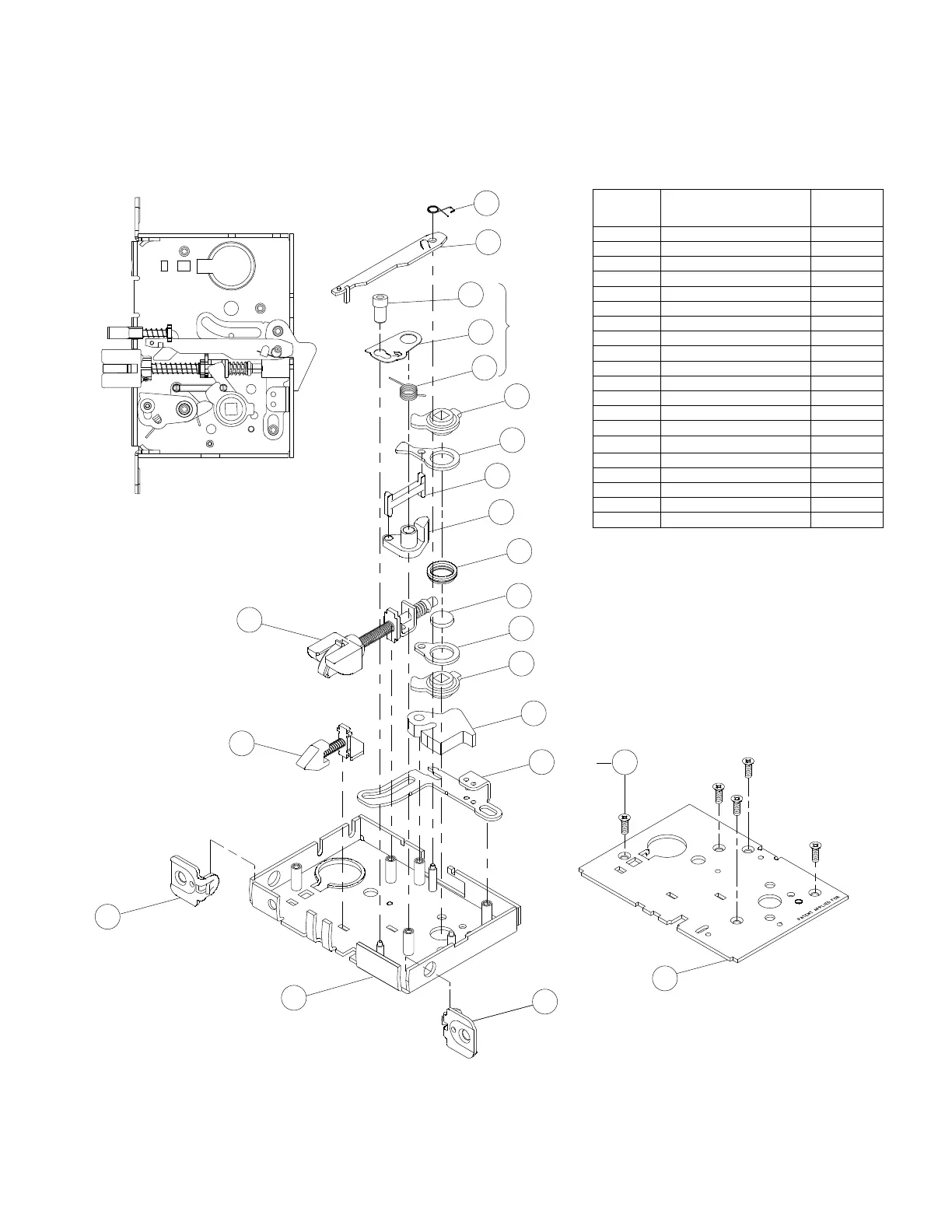

LM9310, LM9325
Assembled Lock Case L283-314
Number Description
Part
Number
5 Auxiliary Latchbolt L283-006
6 Latchbolt L283-336
17 Retractor Hub L583-019
18 Hub Spacer L583-020
19 Retractor Lever L583-021
20 Retractor Rocker L583-022
21 Blocking Plate L583-023
22 Retractor Link L583-024
23 Retractor Crank L583-025
24 Hub Spring L583-026
25 Fire Door Fuse L583-027
26 Fire Door Catch L583-028
33 Stop Spring L583-044
50 Auxiliary Stop L583-196
51
1
Z\v” Faceplate Tab
L583-426
52 Case Cover Screws L583-454
66 LM9000 Lock Case L283-312
67 LM9000 Lock Case Cover L583-491
68 Locking Link L583-505
69 Lier L583-506
52
5
67
25
26
24
17
19
22
23
18
21
20
17
6
51
51
**
5
33
50
68
66
69
** See "Passage latch trim" on page 23.
