Schlage L460 - L9056

64 • Schlage • L-Series service manual

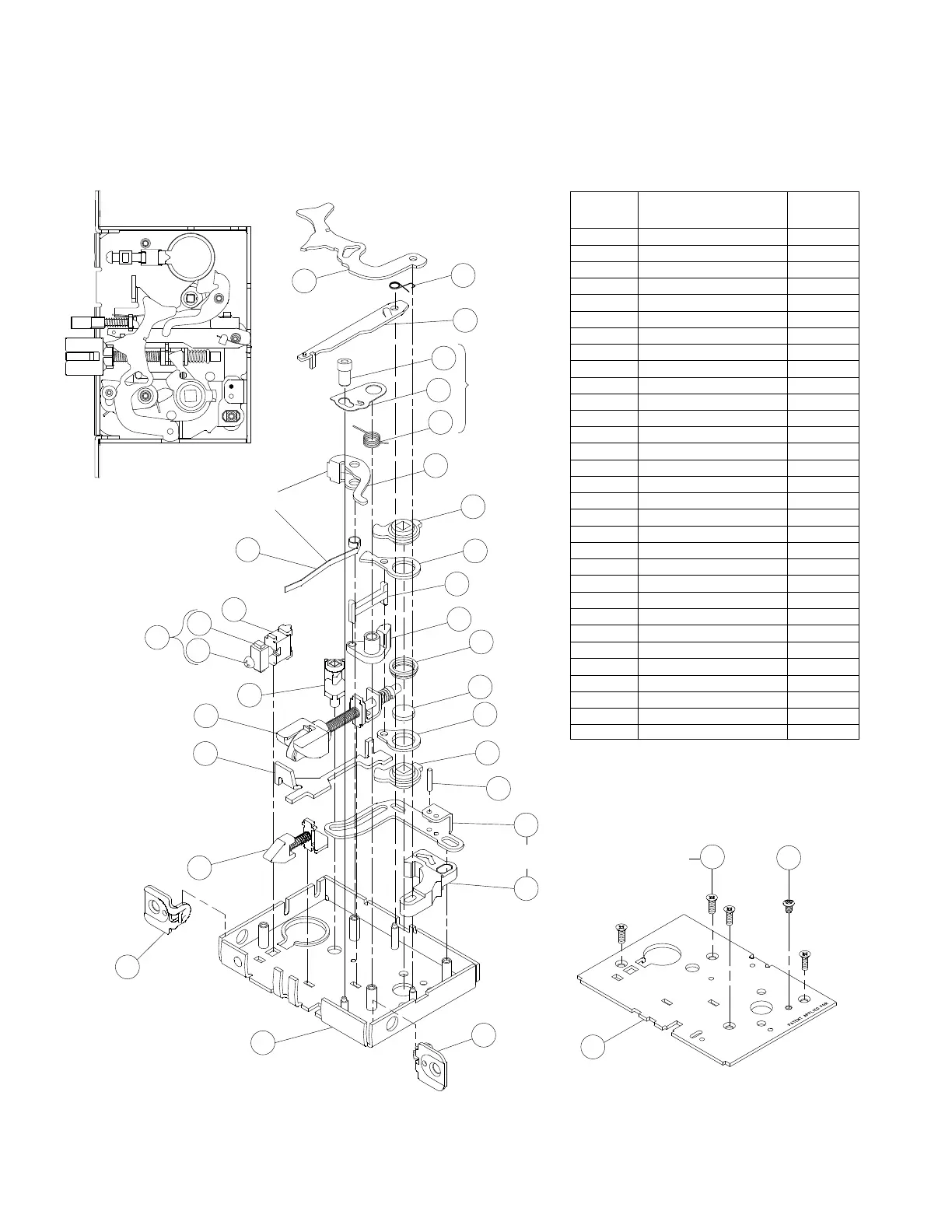

Lock case assemblies
L9056
Assembled Lock Case L283-126
Number Description
Part
Number
5 Auxiliary Latchbolt L283-006
6 Latchbolt L283-008
10 Cylinder Plate & Screw L283-055
13 L9000 Lock Case L283-112
17 Retractor Hub L583-019
18 Hub Spacer L583-020
19 Retractor Lever L583-021
20 Retractor Rocker L583-022
21 Blocking Plate L583-023
22 Retractor Link L583-024
23 Retractor Crank L583-025
24 Hub Spring L583-026
25 Fire Door Fuse L583-027
26 Fire Door Catch L583-028
27 Turn Hub L583-029
30 Turn Hub Spring L583-035
33 Stop Spring L583-044
34 Locking Catch L583-045
36 Locking Link L583-048
38 Link Pin L583-050
39 Transfer Lever L583-051
43 Simultaneous Retractor L583-058
47 Transfer Lier L583-156
50 Auxiliary Stop L583-196
51
1
Z\v” Faceplate Tab
L583-426
52 Case Cover Screws L583-454
53 Cylinder Retainer Screw L583-481
54 Lock Handing Screw L583-485
55 Cylinder Retainer L583-490
56 Screw Plate L583-492
58 Lock Case Cover L583-496
4
52
58
54
(couple before
assembly)
51
51
13
5
34
36
38
17
20
21
18
23
22
(couple before assembly)
19
17
39
24
26
50
33
43
30
55
10
56
53
27
6
47
25
**
**
**
** See "Passage latch trim" on page 23.
