Schlage L460 - L9460 X XL11-635

92 • Schlage • L-Series service manual

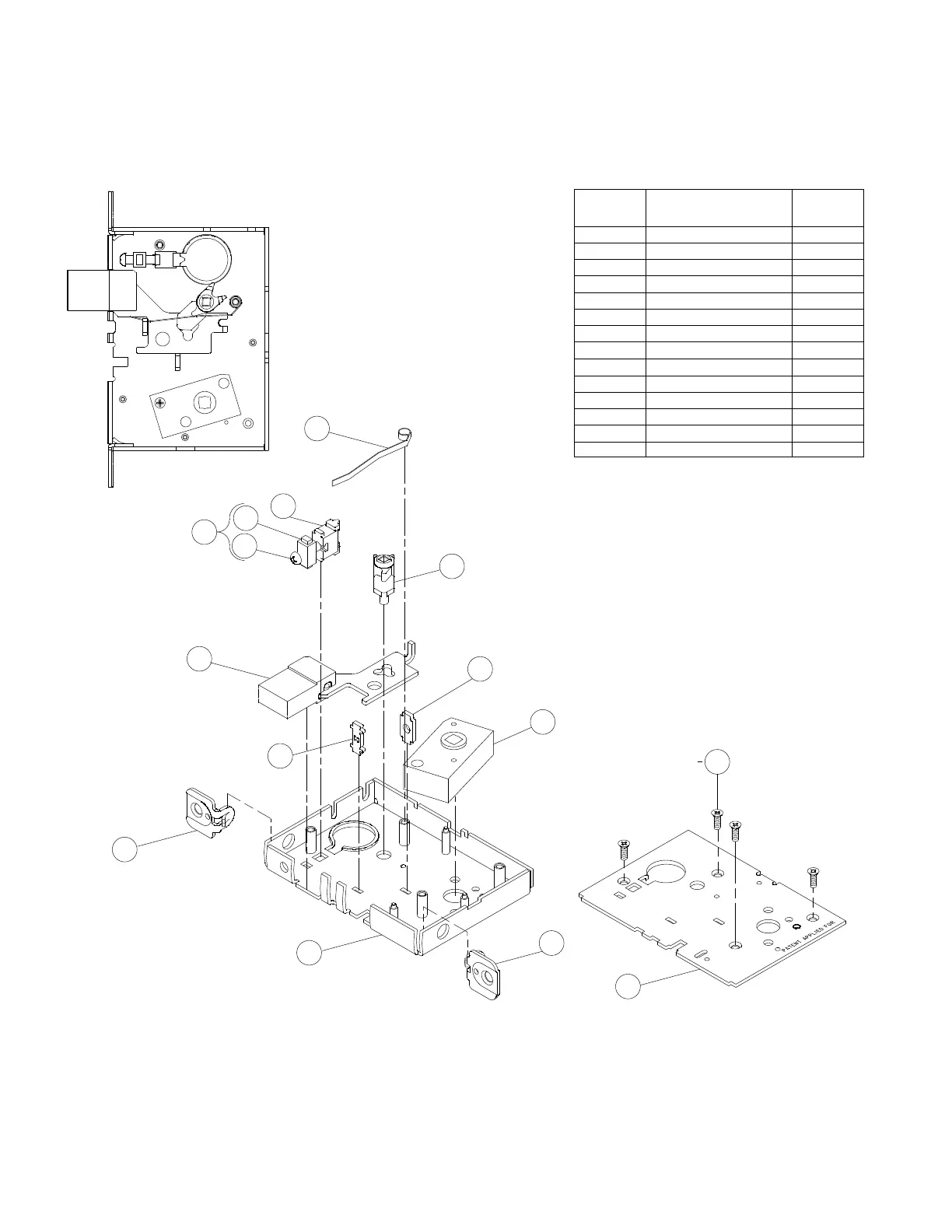

Lock case assemblies
L9460 x XL11-635
Assembled Lock Case XL11-661
Number Description
Part
Number
3 Deadbolt L283-003
10 Cylinder Plate & Screw L283-055
13 L9000 Lock Case L283-112
16 Latchbolt Guide L583-015
27 Turn Hub L583-029
30 Turn Hub Spring L583-035
31 Auxiliary Bar Guide L583-038
42 Spindle Anchor L583-057
51
1
Z\v” Faceplate Tab
L583-426
52 Case Cover Screws L583-454
53 Cylinder Retainer Screw L583-481
55 Cylinder Retainer L583-490
56 Screw Plate L583-492
58 Lock Case Cover L583-496
4
58
52
27
55
10
3
51
42
16
31
56
53
51
13
30
