Lock assembly drawing index
Schlage • L-Series service manual • 7

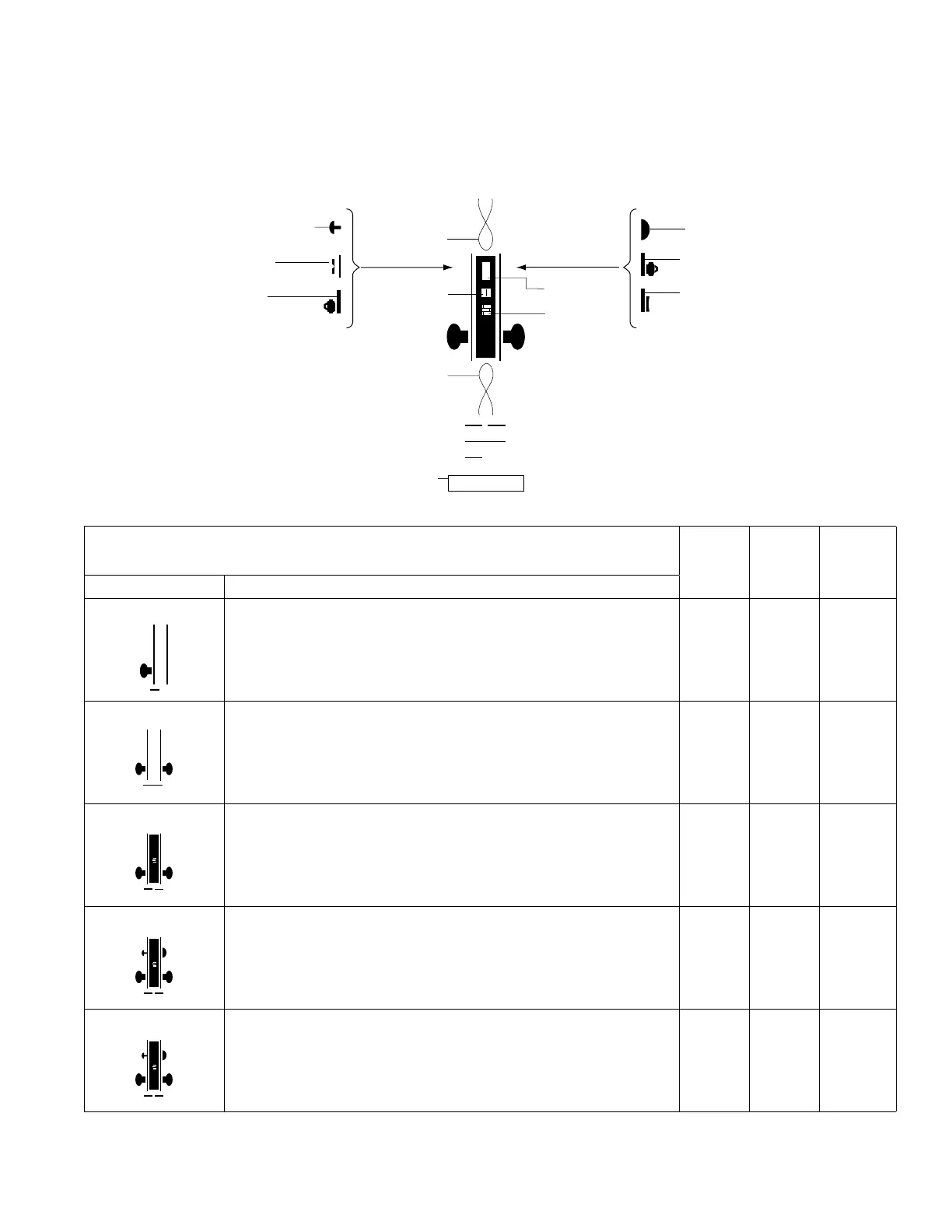

Lock assembly drawing index
The Lock Assembly Drawing Index provides representations and descriptions of available functions. Page numbers for full
trim and chassis drawings are referenced.
rgency Turn
Latchbolt
in Turn
Deadbolt
Thumbturn
ylinder
Auxiliary
Latch
Electrified
Cylinder
Cylinder T
Occupancy
Two-piece Spindle
Solid Spindle
One-piece Outside Spindle
DO NOT DISTURB
RX
L9000 FUNCTIONS
ANSI/BHMA A156.13, 1994, Series 1000, Grade 1
Non-keyed locks
Trim
assembly
page no.
Lock
assembly
page no.
Lock case
part no.
SCHLAGE ANSI Description
L0170 Single dummy trim
Knob/lever on one side is fixed by mounting bar.
20 – –
L0172 Double dummy trim
Knob/lever on both sides is fixed by mounting bar.
21 – –
L9010 F01
Passage latch z
Latchbolt is always retracted by knob/lever from either side.
23 56 L283-131
L9040 F22 Bath/bedroom privacy lock
Latchbolt is retracted by knob/lever from either side unless outside is locked by
inside thumbturn. Turning inside knob/lever or closing door unlocks outside
knob/lever. To unlock from outside, remove emergency button, insert emergency
turn in access hole and rotate.
25 58 L283-132
LV9040 Bath/bedroom privacy lock with Vandlgard�
Latchbolt is retracted by knob/lever from either side unless outside is locked by
inside thumbturn. Turning inside knob/lever or closing door unlocks outside
knob/lever. To unlock from outside, remove emergency button, insert emergency
turn in access hole and rotate. Vandlgard function allows exterior lever to rotate
freely down while remaining securely locked.
25 59 L283-171
Not sold separately as a part.
z Available with Request to Exit feature.
* Caution: Double cylinder locks on residences–or on any door in any structure which are used for egress–are a life safety hazard in times of
emergency, and their use is not recommended. Installation should be in accordance with existing codes only.
