8 • Schlage • L-Series service manual

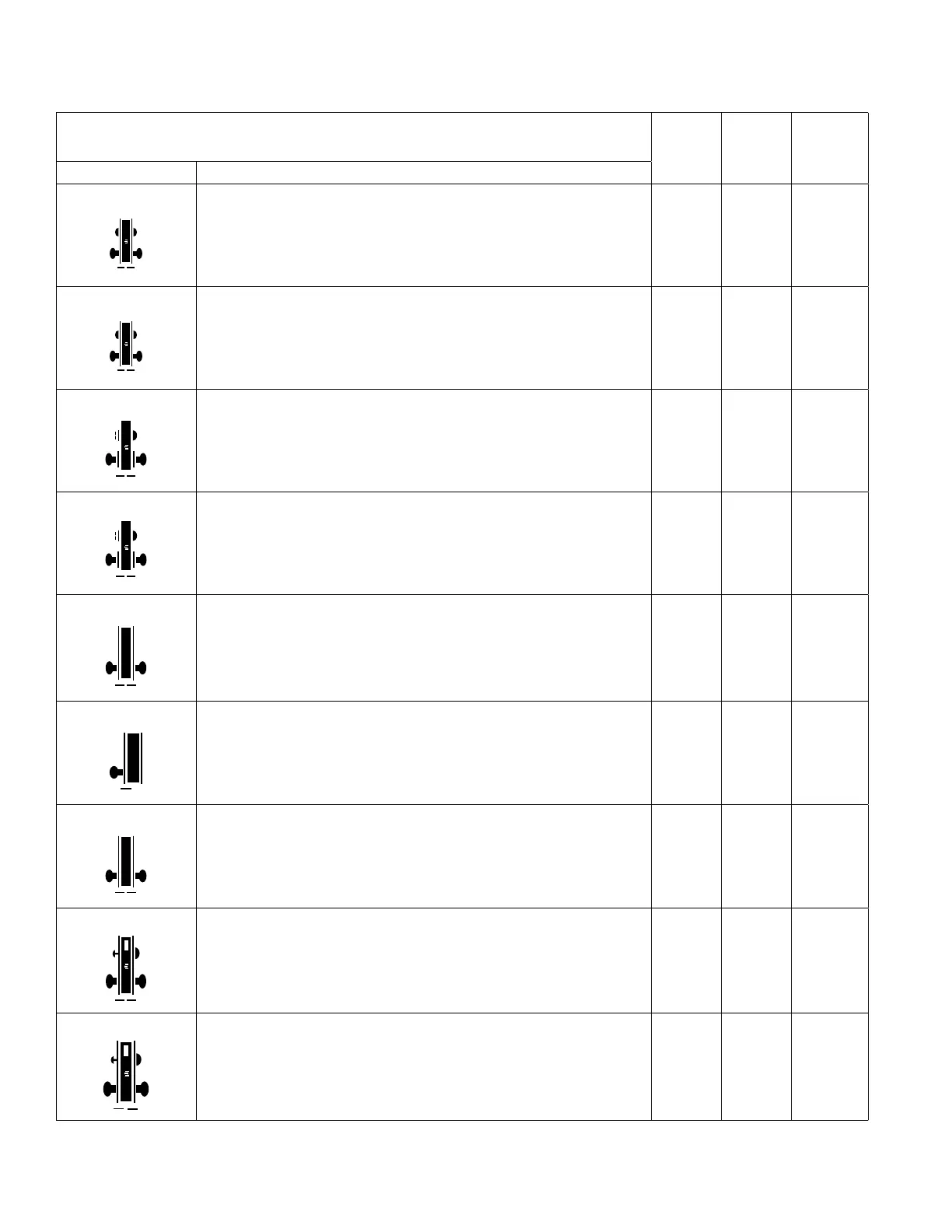

Lock assembly drawing index
L9000 FUNCTIONS
ANSI/BHMA A156.13, 1994, Series 1000, Grade 1
Non-keyed locks
Trim
assembly
page no.
Lock
assembly
page no.
Lock case
part no.
SCHLAGE ANSI Description
L9040 x XL11-446 Privacy with turns both sides
Latchbolt is retracted by knob/lever from either side unless outside is locked by
inside or outside thumbturn. Turning inside knob/lever or closing door unlocks
outside knob/lever. Specify per XL11-446.
25 58 L283-132
LV9040 x XL11-446 Privacy with turns both sides with Vandlgard�
Latchbolt is retracted by knob/lever from either side unless outside is locked by
inside or outside thumbturn. Turning inside knob/lever or closing door unlocks
outside knob/lever. Vandlgard function allows exterior lever to rotate freely down
while remaining securely locked. Specify per XL11-446.
25 59 L283-171
L9044 Privacy with coin turn outside
Latchbolt is retracted by knob/lever from either side unless outside is locked by
inside thumbturn or outside coin turn. Operating inside knob/lever, closing door,
rotating inside thumbturn or outside coin turn unlocks outside knob/lever.
Available in rose trim only. Specify per L283-056 for Torx
®
screws. (Previously
XL11-868).
27 58 L283-132
LV9044 Privacy with coin turn outside with Vandlgard�
Latchbolt is retracted by knob/lever from either side unless outside is locked by
inside thumbturn. Operating inside knob /lever, closing door, rotating inside
thumbturn or outside coin turn unlocks outside knob/lever. Available with rose trim
only. Vandlgard function allows exterior lever to rotate freely down while remaining
securely locked. Specify per L283-056 for Torx� screws.
27 59 L283-171
L9110 x XL11-741 Double dummy with active trim
Knob/lever is always active on both sides. Includes lock case and armor front.
Specify XL11-741 for use on active door, or specify XL11-743 for use on inactive door
(furnished with armor front with cutout to receive deadbolt).
32 – –
L9175 Single dummy with lock case
Inoperable knob/lever on one side. Includes lock case and armor front.
33 81 L283-144
L9176 Double dummy with lock case
Inoperable knob/lever on both sides. Includes lock case and armor front.
34 82 L283-145
L9440 F19 Privacy with deadbolt
Latchbolt is retracted by knob/lever from either side. Deadbolt is thrown or
retracted by inside thumbturn. Throwing deadbolt locks outside knob/lever.
Rotating inside knob/lever simultaneously retracts deadbolt and latchbolt and
unlocks outside knob/lever. To unlock from outside, remove emergency button,
insert thumbturn in access hole and rotate. (Previously XL11-761).
25 83 L283-062
LV9440 Privacy with deadbolt with Vandlgard�
Latchbolt retracted by knob/lever from either side.Deadbolt is thrown or
retracted by inside thumbturn. Throwing deadbolt locks outside knob/lever.
Rotating inside knob/lever simultaneously retracts deadbolt and latchbolt and
unlocks outside knob/lever. To unlock from outside, remove emergency button,
insert thumbturn in access hole and rotate. Vandlgard function allows exterior
lever to rotate freely down while remaining securely locked.
25 84 L283-181
Not sold separately as a part.
z Available with Request to Exit feature.
* Caution: Double cylinder locks on residences–or on any door in any structure which are used for egress–are a life safety hazard in times of
emergency, and their use is not recommended. Installation should be in accordance with existing codes only.
