Lock assembly drawing index
Schlage • L-Series service manual • 9

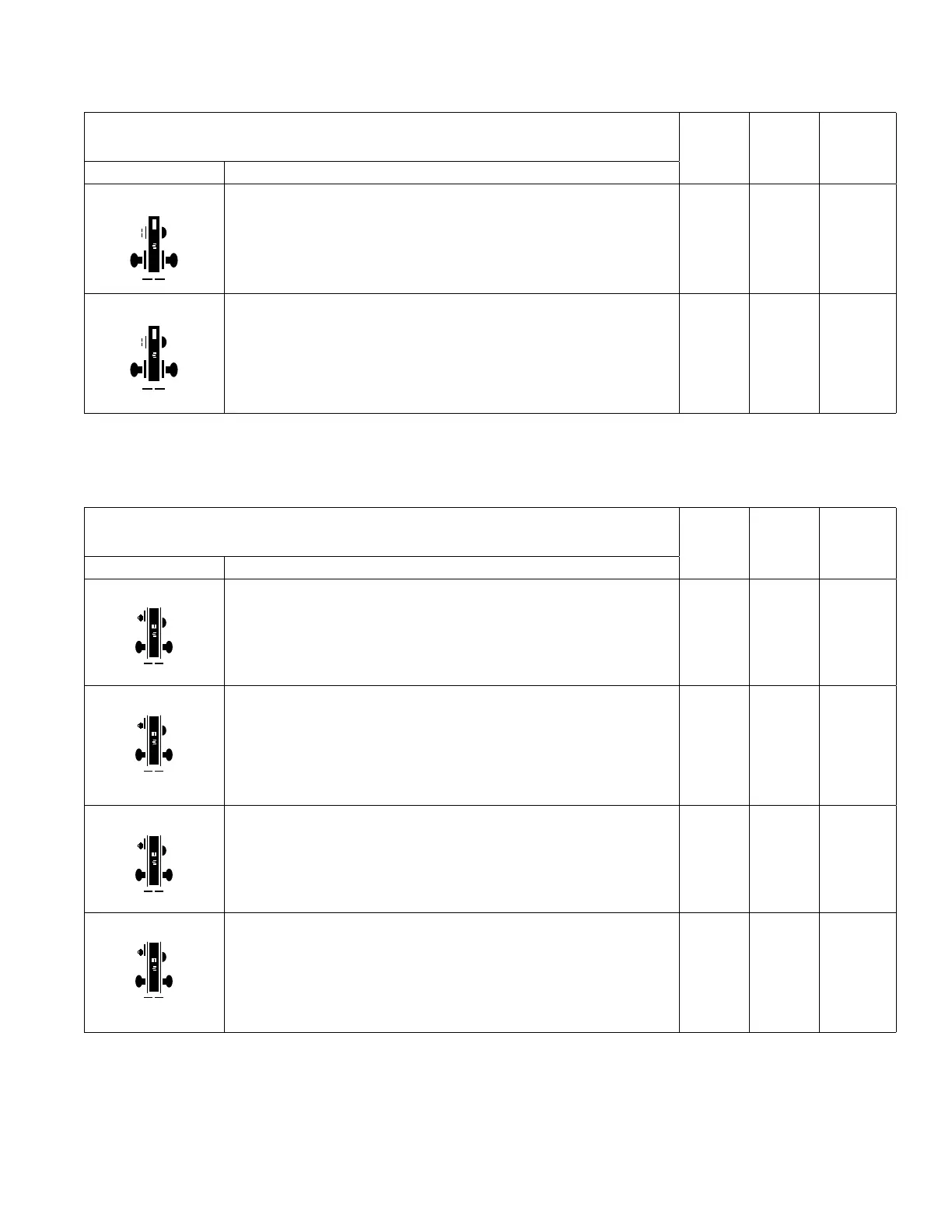

L9000 FUNCTIONS
ANSI/BHMA A156.13, 1994, Series 1000, Grade 1
Non-keyed locks
Trim
assembly
page no.
Lock
assembly
page no.
Lock case
part no.
SCHLAGE ANSI Description
L9444 Privacy with deadbolt and coin turn
Latchbolt is retracted by knob/lever from either side. Deadbolt is thrown or
retracted by inside thumbturn or outside coin turn. Throwing deadbolt locks
outside knob/lever. Rotating inside knob/lever simultaneously retracts deadbolt
and latchbolt and unlocks outside knob/lever. Rotating outside coin turn retracts
deadbolt and unlocks outside knob/lever. Available with rose trim only. Specify
per L283-056 for Torx
®
screws. (Previously XL11-868).
27 83 L283-062
LV9444 Privacy with deadbolt and coin turn with Vandlgard�
Latchbolt is retracted by knob/lever from either side. Deadbolt is thrown or
retracted by inside thumbturn or outside coin turn. Throwing deadbolt locks
outside knob/lever. Rotating inside knob/lever simultaneously retracts deadbolt
and latchbolt and unlocks outside knob/lever. Rotating outside coin turn retracts
deadbolt and unlocks outside knob/lever. Available with rose trim only.
Vandlgard function allows exterior lever to rotate freely down while remaining
securely locked. Specify per L283-056 for Torx� screws.
27 84 L283-181
Not sold separately as a part.
z Available with Request to Exit feature.
* Caution: Double cylinder locks on residences–or on any door in any structure which are used for egress–are a life safety hazard in times of
emergency, and their use is not recommended. Installation should be in accordance with existing codes only.
L9000 FUNCTIONS
ANSI/BHMA A156.13, 1994, Series 1000, Grade 1
Keyed locks
Trim
assembly
page no.
Lock
assembly
page no.
Lock case
part no.
SCHLAGE ANSI Description
L9050 F04 Oce and inner entry lock z
Latchbolt is retracted by knob/lever from either side unless outside is made
inoperative by key outside or inside thumbturn. When outside is locked, latchbolt
is retracted by key outside or by knob/lever inside. Outside knob/lever remains
locked until thumbturn is returned to vertical position or unlocked by key.
Auxiliary latch deadlocks latchbolt when door is closed. Inside knob/lever is
always free for immediate exit.
28 60 L283-133
LV9050 Oce and inner entry lock with Vandlgard
�
z
Latchbolt is retracted by knob/lever from either side unless outside is made
inoperative by key outside or inside thumbturn. When outside is locked, latchbolt
is retracted by key outside or by knob/lever inside. Outside knob/lever remains
locked until thumbturn is returned to vertical position or unlocked by key.
Auxiliary latch deadlocks latchbolt when door is closed. Inside knob/lever is
always free for immediate exit. Vandlgard function allows exterior lever to rotate
freely down while remaining securely locked.
28 61 L283-170
L9056 L9050 with automatic unlocking z
Latchbolt is retracted by knob/lever from either side unless outside is made
inoperative by key outside or inside thumbturn. Outside knob/lever is unlocked by
key outside or thumbturn. Rotating inside knob/lever simultaneously retracts
latchbolt and unlocks outside knob/lever. Auxiliary latch deadlocks latchbolt
when door is closed. Inside knob/lever is always free for immediate exit.
(Previously XL11-776).
28 64 L283-126
LV9056 LV9050 with automatic unlocking with Vandlgard
®
z
Latchbolt is retracted by knob/lever from either side unless outside is made
inoperative by key outside or inside thumbturn. Outside knob/lever is unlocked by
key outside or thumbturn. Rotating inside knob/lever simultaneously retracts
latchbolt and unlocks outside knob/lever. Auxiliary latch deadlocks latchbolt
when door is closed. Inside knob/lever is always free for immediate exit.
Vandlgard function allows exterior lever to rotate freely down while remaining
securely locked.
28 65 L283-180
† Locks with holdback feature are not UL listed. Installation should be in accordance with existing codes only.
* Caution: Double cylinder locks on residences–or on any door in any structure which are used for egress–are a life safety hazard in times of
emergency, and their use is not recommended. Installation should be in accordance with existing codes only.
Not sold separately as a part.
z Available with Request to Exit feature.
