Schlage L460 - Cylinders: Series-Specific Types and Cams (Continued); L;LV;LM;LMV Series Cylinder Types (Excluding L9060;LM9380); L, LV Series L9060;LV9060 Outside Cylinder Types; LM, LMV Series LM9380;LMV9380 Cylinder Types

124 • Schlage • L-Series service manual

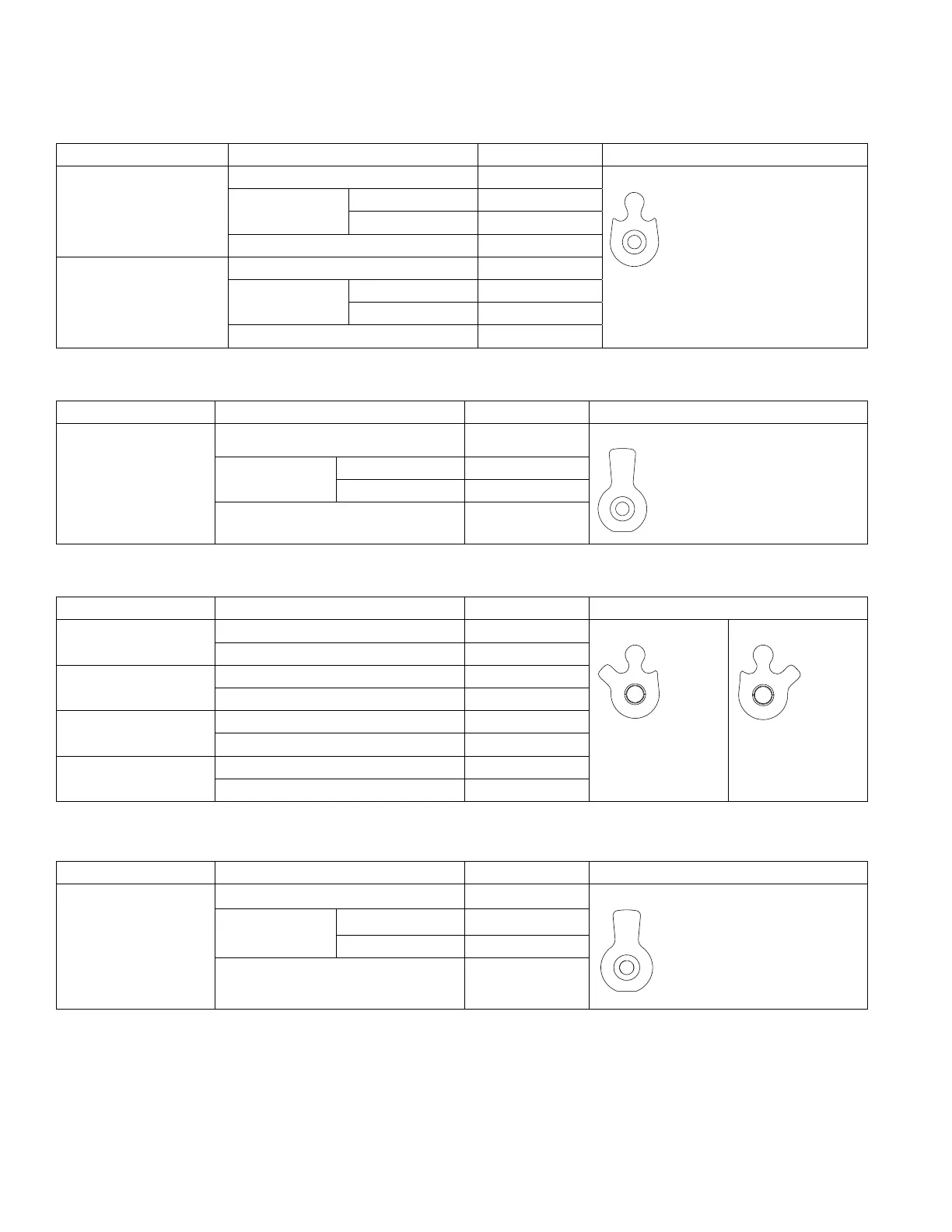

Cylinders
L/LV/LM/LMV-Series (except L9060/LV9060 outside and LM9380/LMV9380)
Description Cylinder mechanism Complete cylinder Cam
Cylinder with compression
ring and spring: L and
escutcheons
Everest� restricted combinated core 80-308 L583-255
Construction core Disposable 80-115
Keyed 80-138
Housing less core 80-108
Cylinder with compression
ring, compression spring and
Z\v’’ blocking ring: rose trim
Everest restricted combinated core 80-301
Construction core Disposable 80-109
Keyed 80-131
Housing less core 80-101
L, LV-Series L9060/LV9060 outside
Description Cylinder Mechanism Complete Cylinder Cam
Cylinder with compression
ring and spring: L and N
escutcheons*
Everest restricted combinated core 80-304 K510-680
Construction core Disposable 80-112
Keyed 80-134
Housing less core 80-104
LM, LMV-Series LM9380/LMV9380
Description Cylinder Mechanism Complete Cylinder Cams
LM9080 BD Everest restricted combinated core (RH) 26-107 L583-509 (RH) L583-509 (LH)
Everest restricted combinated core (LH) 26-108
LM9080 BDC Everest restricted combinated core (RH) 26-109
Everest restricted combinated core (LH) 26-110
LM9080 GD Everest restricted combinated core (RH) 26-111
Everest restricted combinated core (LH) 26-112
LM9080 HD Everest restricted combinated core (RH) 26-113
Everest restricted combinated core (LH) 26-114
Other straight cam applications
Description Cylinder mechanism Complete cylinder Cam
Cylinder with compression
ring, compression spring
and Z\v’’ blocking ring.
Everest restricted combinated core 80-302 K510-730
Construction core Disposable 80-110
Keyed 80-132
Housing less core 80-102
* For rose trim also order 36-082-050 blocking ring.
