CV-LS Dashboard
D20980.022 Rev C CV-LS User Manual Page 63
Below are two samples of Continuous Strobe trains. The LED output is detected on a reverse biased
photodiode. In Figure 11 below, because the Waveform is set to “Active High”, the LED is ON for only
25% of the waveform. In Figure 12 below, the Waveform is set to “Active Low”, the LED is OFF for only
25% of the waveform.

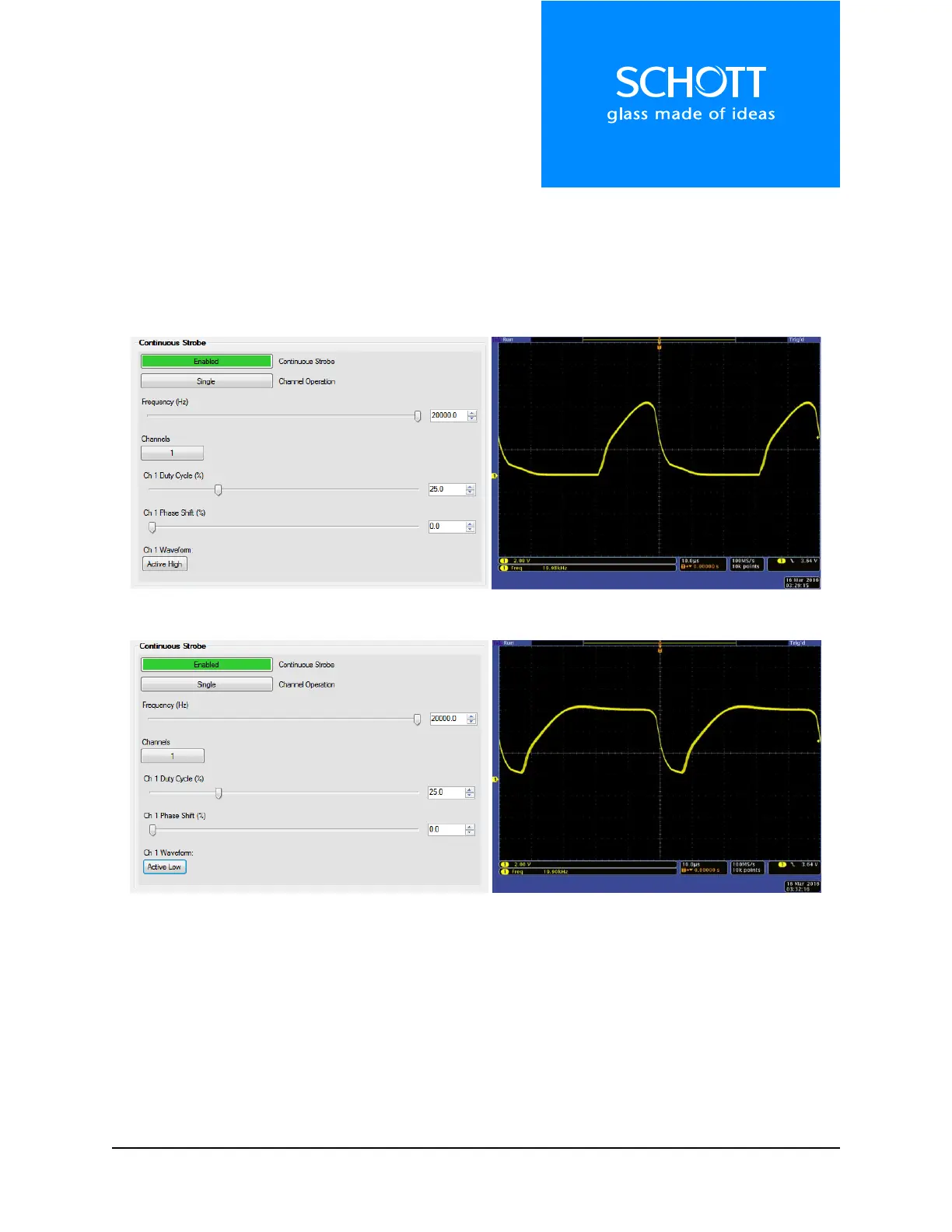

Figure 11: Active High Continuous Strobe Train (Left: Strobe Settings, Right: Light Output measured with Photodiode)
Figure 12: Active Low Continuous Strobe Train (Left: Strobe Settings, Right: Light Output measured with Photodiode)
